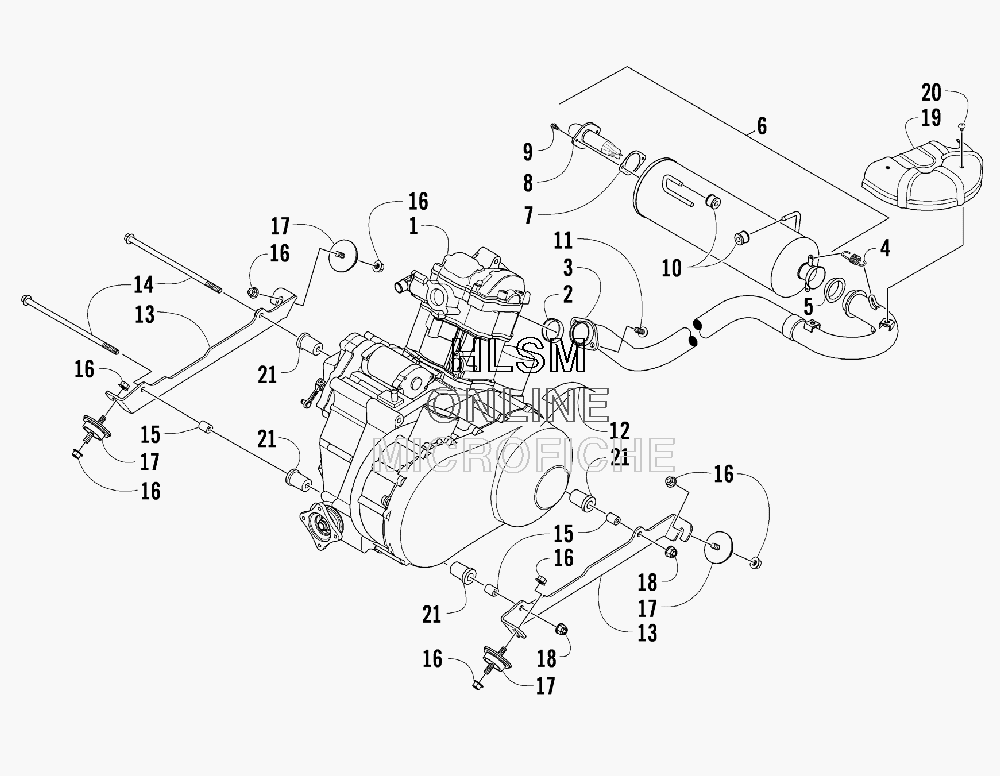

ENGINE AND EXHAUST для Arctic Cat PROWELER 700 XT (RED) [U2009P2T4EUSR] - 2009 года выпуска
-
№АртикулНазвание
-
10800-083 ENGINE, A700GENGINE, A700G
-
20412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
30512-427 PIPE, EXHAUST-BLACKPIPE, EXHAUST-BLACK
-
40612-668 SPRINGSPRING
-
50412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
60512-401 MUFFLER-BLACK - ASSEMBLY (INC. 7-9)MUFFLER-BLACK - ASSEMBLY (INC. 7-9)
-
70412-438 GASKET, SPARK ARRESTERGASKET, SPARK ARRESTER
-
80512-432 SPARK ARRESTER-BLACK (SERVICE PART)SPARK ARRESTER-BLACK (SERVICE PART)
-
98408-616 SCREW, CAPSCREW, CAP
-
100412-215 BUSHINGBUSHING
-
118408-820 SCREW, CAPSCREW, CAP
-
120411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
131506-998 BRACKET-BLACK, ENGINE - RIGHTBRACKET-BLACK, ENGINE - RIGHT
-
131506-999 BRACKET-BLACK, ENGINE - LEFTBRACKET-BLACK, ENGINE - LEFT
-
140423-537 SCREW, CAPSCREW, CAP
-
150423-042 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
168424-002 NUTNUT
-
170408-014 MOUNT, ENGINEMOUNT, ENGINE
-
188428-002 NUT, LOCKNUT, LOCK
-
190412-462 SHIELD, HEATSHIELD, HEAT
-
208477-610 SCREW, MACH-TSTRH M6X1.0X10 Z & BLKSCREW, MACH-TSTRH M6X1.0X10 Z & BLK
-
210801-108 BUSHING, ENGINE MOUNTBUSHING, ENGINE MOUNT
