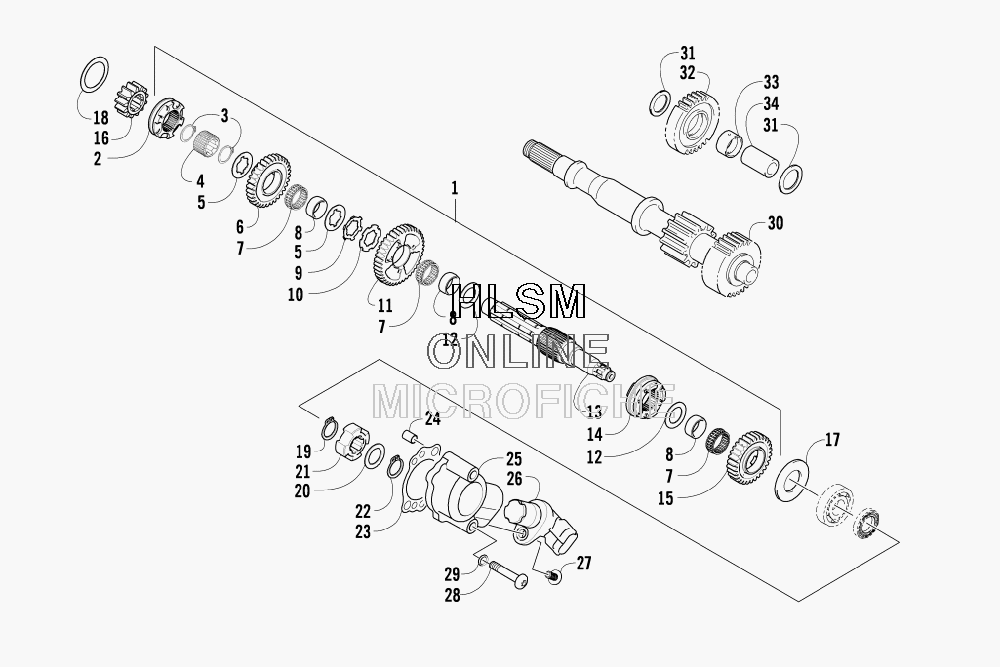

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat PROWELER 700 XT (RED) [U2009P2T4EUSR] - 2009 года выпуска
-
№АртикулНазвание
-
11502-149 COUNTERSHAFT ASSEMBLY (INC. 2-15)COUNTERSHAFT ASSEMBLY (INC. 2-15)
-
20822-014 GEAR SELECT, REVERSEGEAR SELECT, REVERSE
-
30831-011 RING, RETAININGRING, RETAINING
-
40822-045 SPACER, REVERSE DRIVEN GEARSPACER, REVERSE DRIVEN GEAR
-
50828-008 WASHERWASHER
-
60822-013 GEAR, REVERSE DRIVENGEAR, REVERSE DRIVEN
-
70832-011 BEARINGBEARING
-
80822-005 BUSHINGBUSHING
-
90828-014 WASHER, LOCKWASHER, LOCK
-
100828-015 WASHER, LOCKWASHER, LOCK
-
110822-004 GEAR, DRIVEN - LOWGEAR, DRIVEN - LOW
-
120822-046 WASHER, DRIVEN GEARWASHER, DRIVEN GEAR
-
130822-003 COUNTERSHAFTCOUNTERSHAFT
-
140822-007 GEAR SELECT, SLIDINGGEAR SELECT, SLIDING
-
150822-006 GEAR, DRIVEN - HIGHGEAR, DRIVEN - HIGH
-
160822-089 GEAR, DRIVEGEAR, DRIVE
-
170828-011 WASHERWASHER
-
180828-019 WASHER, THRUSTWASHER, THRUST
-
190831-040 RING, RETAININGRING, RETAINING
-
200828-069 WASHER, THRUSTWASHER, THRUST
-
210822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
220831-039 RING, RETAININGRING, RETAINING
-
230830-129 GASKETGASKET
-
240829-023 PIN, DOWELPIN, DOWEL
-
250822-049 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
260824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
278468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
288468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
290830-107 SEAL, FASTENERSEAL, FASTENER
-
300822-001 DRIVESHAFTDRIVESHAFT
-
310828-016 WASHER, THRUSTWASHER, THRUST
-
320822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
330822-012 BUSHINGBUSHING
-
340822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
