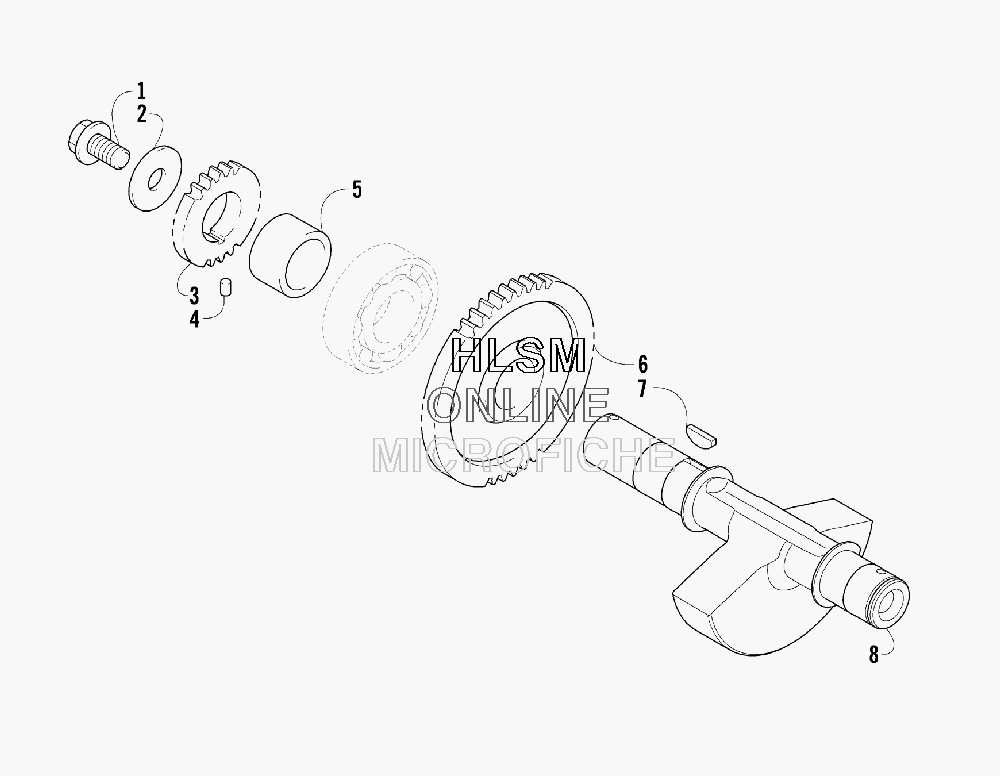

CRANK BALANCER ASSEMBLY для Arctic Cat PROWLER 550 (GREEN) [U2009P1O4BUSG] - 2009 года выпуска
-
№АртикулНазвание
-
10826-033 SCRE W, CAP HFH, M10X1.25X20 W/THD LOCKSCRE W, CAP HFH, M10X1.25X20 W/THD LOCK
-
20828-003 WASHERWASHER
-
30811-003 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
40829-007 PIN, DOWELPIN, DOWEL
-
50811-004 SPACERSPACER
-
60811-002 GEAR, DRIVENGEAR, DRIVEN
-
70829-006 KEYKEY
-
80811-017 BALANCER, CRANKBALANCER, CRANK
