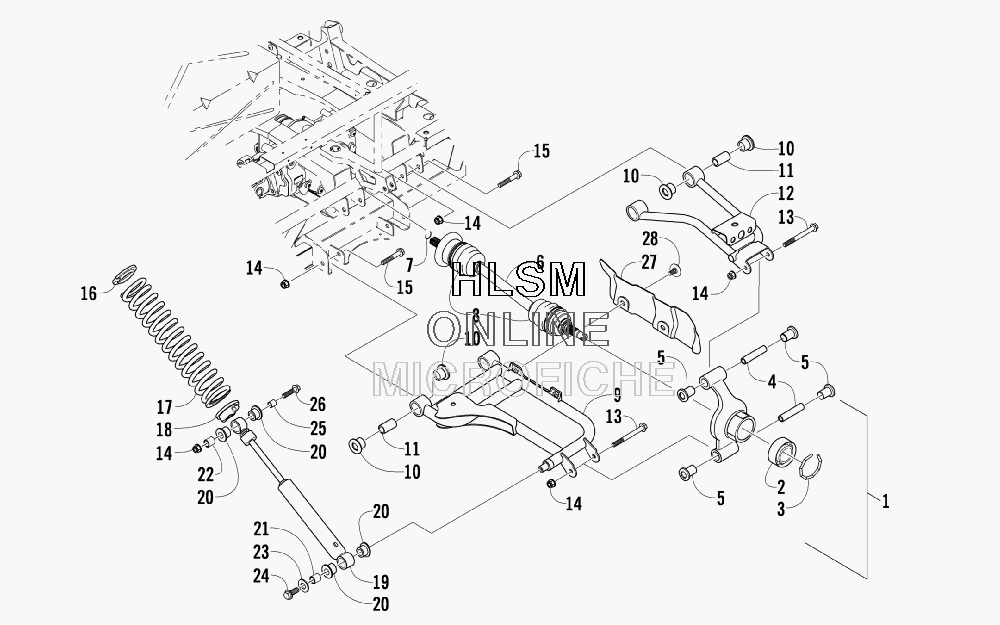

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER 550 (GREEN) [U2009P1O4BUSG] - 2009 года выпуска
-
№АртикулНазвание
-
10504-551 KNUCKLE, REAR - ASSEMBLY (INC. 2-5)KNUCKLE, REAR - ASSEMBLY (INC. 2-5)
-
21402-809 BEARINGBEARING
-
30423-423 RING, RETAININGRING, RETAINING
-
40403-038 AXLEAXLE
-
50403-032 BUSHINGBUSHING
-
61502-346 HALFSHAFT, 688MM-27T (INC. 7-8)HALFSHAFT, 688MM-27T (INC. 7-8)
-
70423-845 CLIP, RETAININGCLIP, RETAINING
-
80436-276 REPAIR KIT, BOOT - REAR AXLEREPAIR KIT, BOOT - REAR AXLE
-
90504-552 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 10-11)
-
90504-553 A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)A-ARM, REAR - LOWER LEFT - BLACK (INC. 10-11)
-
100403-115 BUSHINGBUSHING
-
110403-114 AXLEAXLE
-
120504-562 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 10-11)
-
120504-563 A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)A-ARM, REAR - UPPER LEFT - BLACK (INC. 10-11)
-
138409-000 SCREW, CAPSCREW, CAP
-
140423-744 NUT, LOCKNUT, LOCK
-
158409-075 SCREW, CAPSCREW, CAP
-
161603-889 RETAINER, SPRINGRETAINER, SPRING
-
170404-172 SPRING, SUSPENSION - BLACKSPRING, SUSPENSION - BLACK
-
180404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
190404-115 SHOCK ABSORBER (INC. 20-22)SHOCK ABSORBER (INC. 20-22)
-
200603-955 BUSHINGBUSHING
-
211603-219 SLEEVESLEEVE
-
221603-209 SLEEVESLEEVE
-
230423-087 WASHERWASHER
-
248408-820 SCREW, CAPSCREW, CAP
-
250404-116 SLEEVESLEEVE
-
268409-040 SCREW, CAPSCREW, CAP
-
271406-068 GUARD, BOOT - RIGHTGUARD, BOOT - RIGHT
-
271406-069 GUARD, BOOT - LEFTGUARD, BOOT - LEFT
-
280423-545 SCREW, SHOULDERSCREW, SHOULDER
