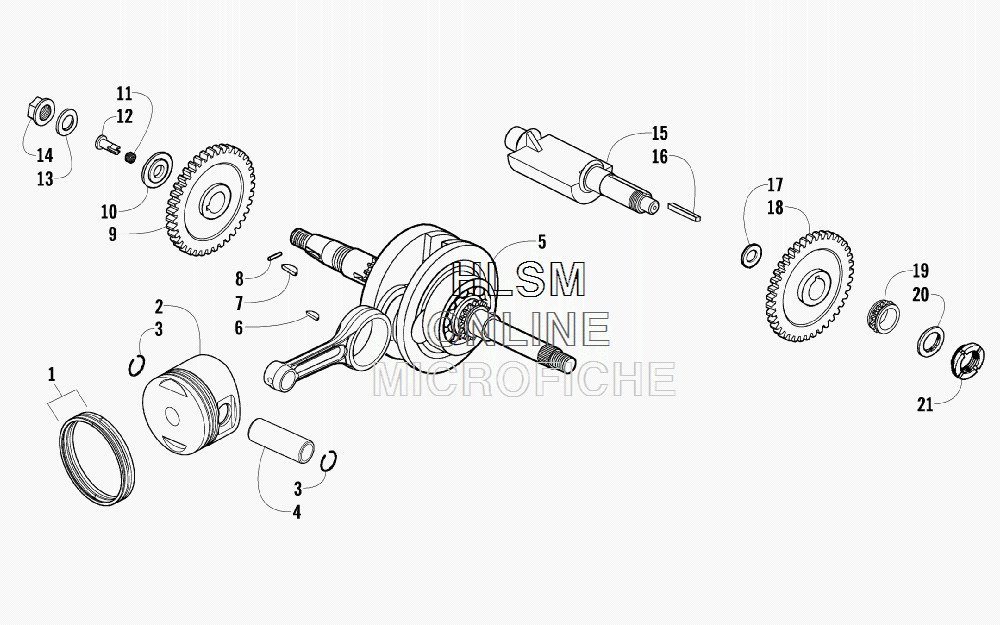

PISTON AND CRANKSHAFT ASSEMBLY для Arctic Cat 150 YOUTH RED [A2010KYC2BUSR] - 2010 года выпуска
-
№АртикулНазвание
-
13304-946 RING SET, PISTONRING SET, PISTON
-
23304-947 PISTONPISTON
-
33304-961 CLIP PISTON PIN 15MMCLIP PISTON PIN 15MM
-
43304-948 PIN, PISTONPIN, PISTON
-
53304-945 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
63304-960 KEY WOODRUFF 16*13KEY WOODRUFF 16*13
-
73304-959 KEY WOODRUFF 25*14*4KEY WOODRUFF 25*14*4
-
83304-962 PIN, ALIGNMENTPIN, ALIGNMENT
-
93304-950 GEAR, TIMINGGEAR, TIMING
-
103304-956 WASHER THRUST 22.2*39*2.5WASHER THRUST 22.2*39*2.5
-
113303-694 SPRINGSPRING
-
123303-693 OIL THROUGHOIL THROUGH
-
133304-036 WASHER THRUST 14*28*2WASHER THRUST 14*28*2
-
143304-954 NUT FLANGE 14MMNUT FLANGE 14MM
-
153304-951 SHAFT, BALANCERSHAFT, BALANCER
-
163304-949 KEYKEY
-
173304-958 WASHER 16MMWASHER 16MM
-
183304-953 GEAR, BALANCERGEAR, BALANCER
-
193304-952 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
203304-957 WASHER GEAR BALWASHER GEAR BAL
-
213304-955 NUT LOCK 16MMNUT LOCK 16MM
