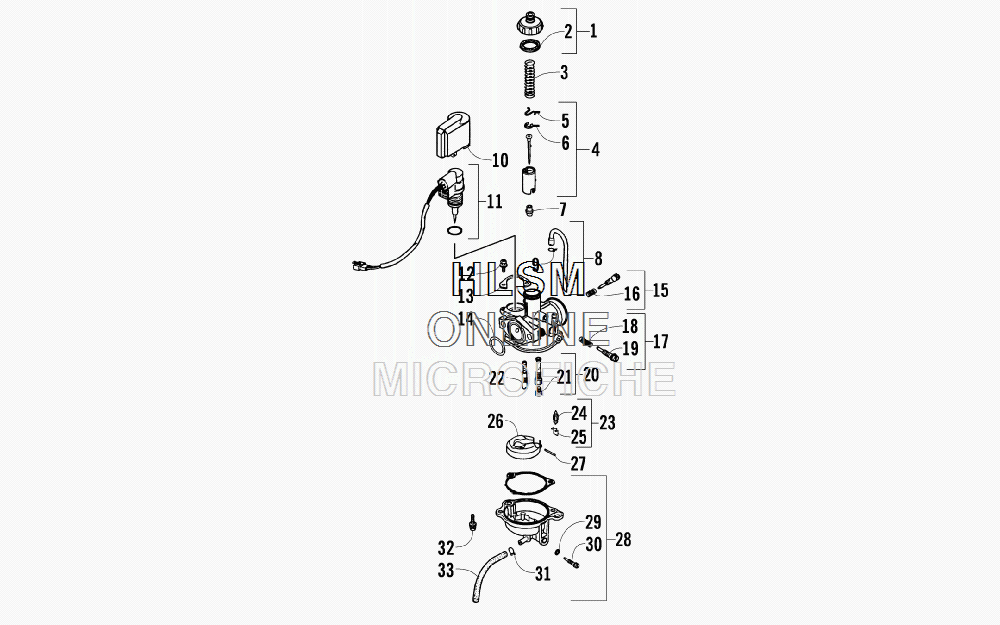

CARBURETOR ASSEMBLY для Arctic Cat 90 DVX WHITE [A2010KSB2BUSF] - 2010 года выпуска
-
№АртикулНазвание
-
-3305-529 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
13304-462 SET, TOP (INC. 2)SET, TOP (INC. 2)
-
23304-463 ...GASKET...GASKET
-
33304-464 SPRING, COMPRESSIONSPRING, COMPRESSION
-
43304-467 VALVE, THROTTLE - ASSEMBLY (INC. 5-6)VALVE, THROTTLE - ASSEMBLY (INC. 5-6)
-
53304-465 ...PLATE, NEEDLE CLIP...PLATE, NEEDLE CLIP
-
63304-466 ...CLIP, NEEDLE...CLIP, NEEDLE
-
73304-468 NEEDLE JETNEEDLE JET
-
83304-472 HOSE ASSEMBLY (INC. 9)HOSE ASSEMBLY (INC. 9)
-
93304-474 ...CLAMP, HOSE...CLAMP, HOSE
-
103304-469 COVERCOVER
-
113304-470 AUTOMATIC BYPASS/STARTER ASSEMBLYAUTOMATIC BYPASS/STARTER ASSEMBLY
-
125507-117 SCREW, MACHINESCREW, MACHINE
-
133304-471 PLATE, RETAININGPLATE, RETAINING
-
143304-488 O-RINGO-RING
-
153305-446 SCREW, ADJUSTMENT (INC. 16)SCREW, ADJUSTMENT (INC. 16)
-
163305-444 ...SPRING...SPRING
-
173304-477 SCREW, STOP - ASSEMBLY (INC. 18-19)SCREW, STOP - ASSEMBLY (INC. 18-19)
-
183304-232 ...SPRING...SPRING
-
193304-478 ...SCREW, STOP...SCREW, STOP
-
203304-479 HOLDER, NEEDLE JET - ASSEMBLY (INC. 21)HOLDER, NEEDLE JET - ASSEMBLY (INC. 21)
-
213304-482 ...JET, MAIN - 80...JET, MAIN - 80
-
215507-170 ...JET, MAIN - 75 - OPTIONAL...JET, MAIN - 75 - OPTIONAL
-
215507-220 ...JET, MAIN - 78 - OPTIONAL...JET, MAIN - 78 - OPTIONAL
-
223304-489 JET, SLOWJET, SLOW
-
233304-490 VALVE, FLOAT - ASSEMBLY (INC. 24-25)VALVE, FLOAT - ASSEMBLY (INC. 24-25)
-
243304-483 ...VALVE, FLOAT...VALVE, FLOAT
-
253304-484 ...CLIP...CLIP
-
263304-491 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
273304-485 PIN, FLOATPIN, FLOAT
-
283304-486 CHAMBER, FLOAT W/GASKET (INC. 29-30)CHAMBER, FLOAT W/GASKET (INC. 29-30)
-
293304-239 ...O-RING...O-RING
-
303304-243 ...SCREW, DRAIN...SCREW, DRAIN
-
313304-474 CLAMP, HOSECLAMP, HOSE
-
323303-320 SCREW, MACHINESCREW, MACHINE
-
333305-248 HOSEHOSE
