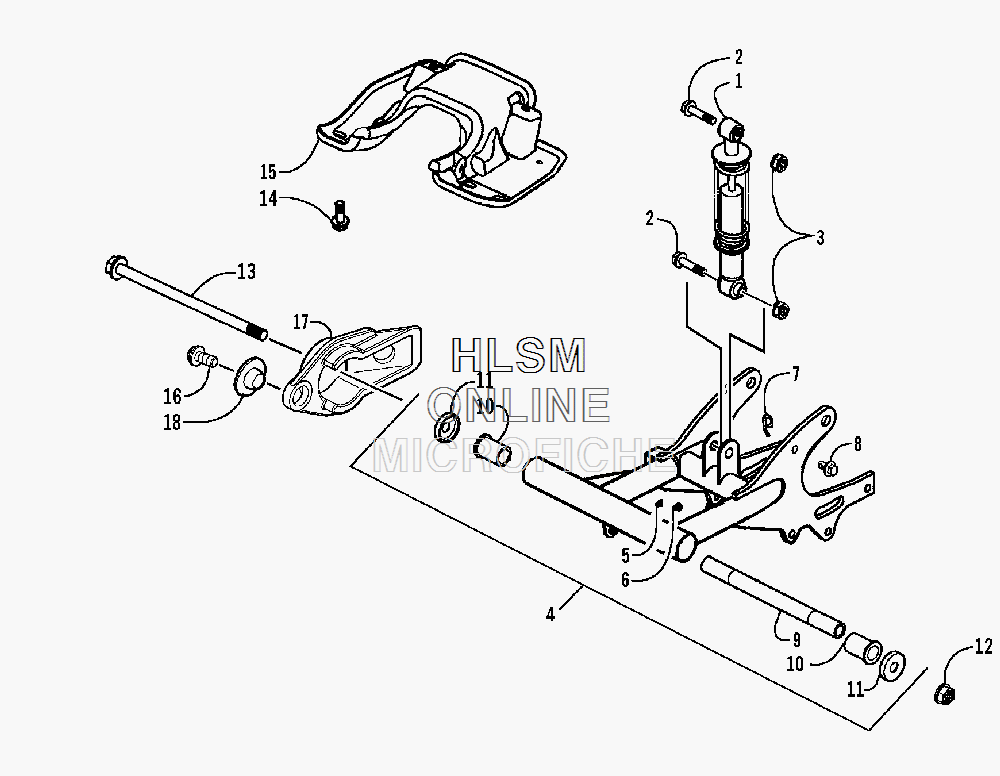

REAR SUSPENSION ASSEMBLY для Arctic Cat 90 DVX WHITE [A2010KSB2BUSF] - 2010 года выпуска
-
№АртикулНазвание
-
13305-908 SHOCK/SPRING - ASSEMBLY - GREENSHOCK/SPRING - ASSEMBLY - GREEN
-
23303-376 SCREW, CAPSCREW, CAP
-
33304-031 NUTNUT
-
43305-858 FORK, REAR - ASSEMBLY (INC. 5-11)FORK, REAR - ASSEMBLY (INC. 5-11)
-
53303-394 ...CAP, GREASE FITTING...CAP, GREASE FITTING
-
63303-393 ...FITTING, GREASE...FITTING, GREASE
-
73304-594 ...CLAMP, ROUTING...CLAMP, ROUTING
-
83305-341 ...SCREW, CAP...SCREW, CAP
-
93303-189 ...AXLE...AXLE
-
103303-191 ...BUSHING...BUSHING
-
113303-192 ...CAP...CAP
-
123304-032 NUTNUT
-
133303-150 SCREW, CAPSCREW, CAP
-
143305-454 SCREW, CAPSCREW, CAP
-
153305-996 GUARD, REAR SUSPENSIONGUARD, REAR SUSPENSION
-
163304-690 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
173305-859 GUIDE, CHAINGUIDE, CHAIN
-
183304-360 BUSHINGBUSHING
