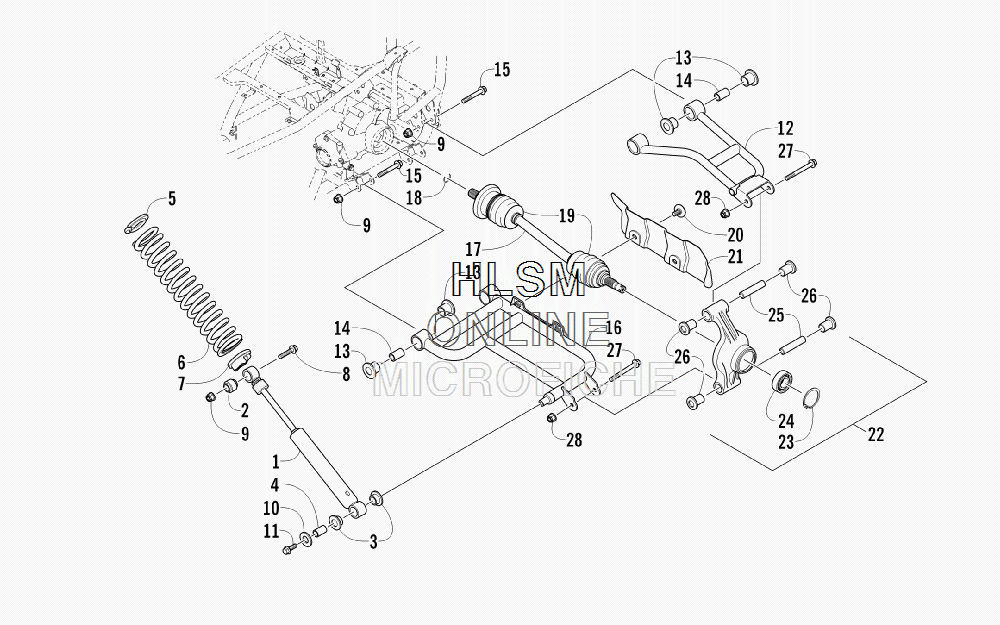

REAR SUSPENSION ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска
-
№АртикулНазвание
-
10404-150 SHOCK ABSORBER (INC. 2-4)SHOCK ABSORBER (INC. 2-4)
-
20403-182 ...BUSHING-DOUBLE BONDED...BUSHING-DOUBLE BONDED
-
30603-955 ...BUSHING, SKI SHOCK-.045" LIP...BUSHING, SKI SHOCK-.045" LIP
-
41603-219 ...SLEEVE, EYELET.790X.812X.635" POWDER MET...SLEEVE, EYELET.790X.812X.635" POWDER MET
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
60404-171 SPRING, COIL-WHITE(150LB/IN X13.3 HT)SPRING, COIL-WHITE(150LB/IN X13.3 HT)
-
70404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
88409-050 SCREW, CAPSCREW, CAP
-
90423-744 NUT, LOCKNUT, LOCK
-
100423-087 WASHERWASHER
-
118408-820 SCREW, CAPSCREW, CAP
-
120504-582 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 13-14)
-
120504-583 A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)A-ARM, REAR - UPPER LEFT - BLACK (INC. 13-14)
-
130403-208 ...BUSHING...BUSHING
-
140403-214 ...AXLE...AXLE
-
158409-075 SCREW, CAPSCREW, CAP
-
160504-572 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 13-14)
-
160504-573 A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)A-ARM, REAR - LOWER LEFT - BLACK (INC. 13-14)
-
171502-723 AXLE, DRIVE (INC. 18-19)AXLE, DRIVE (INC. 18-19)
-
181402-902 ...CLIP, RETAINING...CLIP, RETAINING
-
191436-410 ...REPAIR KIT, BOOT...REPAIR KIT, BOOT
-
200423-545 SCREW, SHOULDERSCREW, SHOULDER
-
211406-068 GUARD, BOOT - REAR - RIGHT - BLACKGUARD, BOOT - REAR - RIGHT - BLACK
-
211406-069 GUARD, BOOT - REAR - LEFT - BLACKGUARD, BOOT - REAR - LEFT - BLACK
-
220504-550 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 23-26)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 23-26)
-
220504-551 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 23-26)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 23-26)
-
230423-423 ...RING, RETAINING...RING, RETAINING
-
241402-809 ...BEARING...BEARING
-
250403-213 ...AXLE...AXLE
-
260403-206 ...BUSHING...BUSHING
-
278409-000 SCREW, CAPSCREW, CAP
-
288428-002 NUT, LOCKNUT, LOCK
