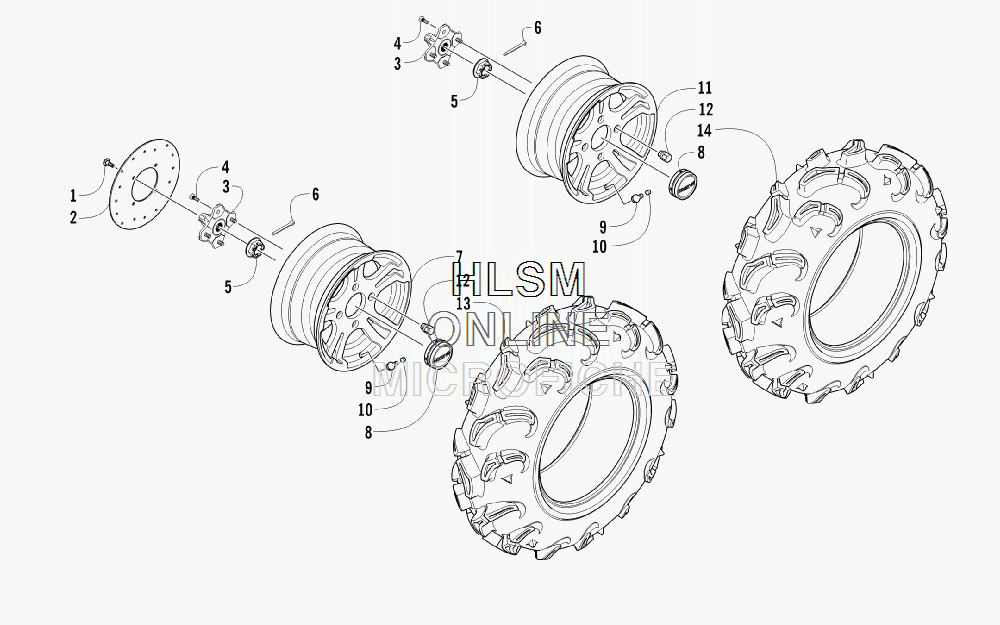

WHEEL AND TIRE ASSEMBLY для Arctic Cat MUDPRO 1000 H2 INTERNATIONAL - Ver 2 Engine Number 0950T40010060 and Up WHITE [A2010IFW4EOSW] - 2010 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDER-W/LOCTITESCREW, SHOULDER-W/LOCTITE
-
21402-455 DISC, BRAKEDISC, BRAKE
-
31502-437 HUB, WHEEL (INC. 4)HUB, WHEEL (INC. 4)
-
40402-974 ...STUD, WHEEL-M10X1.25 (Z & C)...STUD, WHEEL-M10X1.25 (Z & C)
-
50423-607 NUT, CASTLE FLANGE-M22 X 1.5NUT, CASTLE FLANGE-M22 X 1.5
-
60423-407 PIN, COTTER-1/8X1-1/2PIN, COTTER-1/8X1-1/2
-
71402-732 WHEEL - FRONT - ALUMINUMWHEEL - FRONT - ALUMINUM
-
81402-736 CAP, WHEELCAP, WHEEL
-
90402-064 STEM, VALVE (INC. 10)STEM, VALVE (INC. 10)
-
100402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
111402-733 WHEEL - REAR - ALUMINUM (14X8.0)WHEEL - REAR - ALUMINUM (14X8.0)
-
120423-618 NUT, LUG - CHROMENUT, LUG - CHROME
-
131402-855 TIRE, MAXXIS ZILLA-28X9X14 - FRONTTIRE, MAXXIS ZILLA-28X9X14 - FRONT
-
141402-901 TIRE, MAXXIS ZILLA AT 28X11-14 - REARTIRE, MAXXIS ZILLA AT 28X11-14 - REAR
