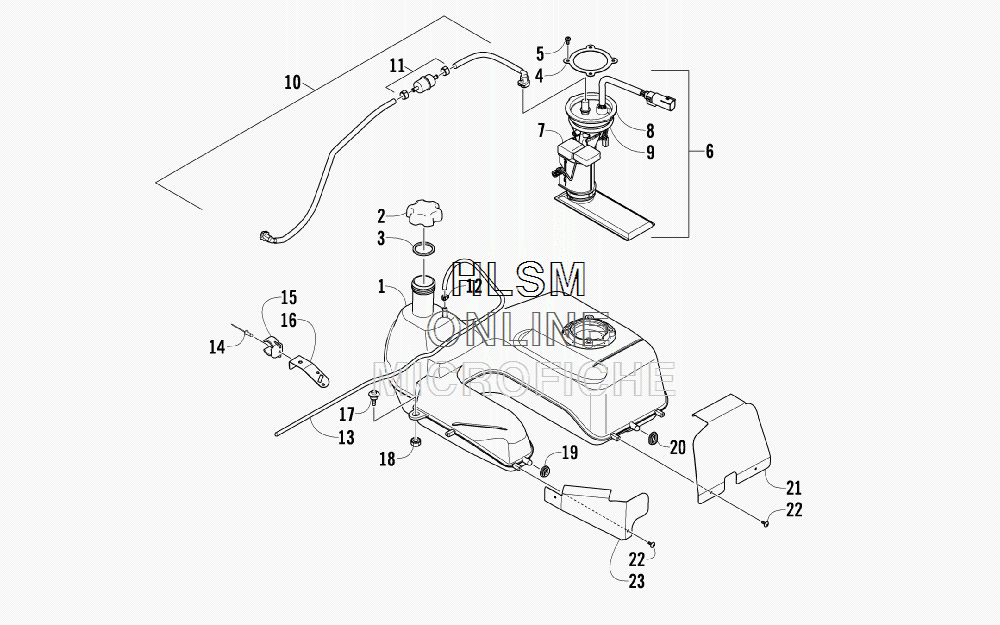

GAS TANK ASSEMBLY 1 для Arctic Cat MUDPRO 700 H1 EFI METALLIC CAT GREEN [A2010IFT4EUSA] - 2010 года выпуска
-
№АртикулНазвание
-
10570-159 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40470-606 ...PLATE, MOUNTING - FUEL PUMP...PLATE, MOUNTING - FUEL PUMP
-
58476-612 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
60570-271 PUMP, FUEL - ASSEMBLY (INC. 7-9)PUMP, FUEL - ASSEMBLY (INC. 7-9)
-
70570-252 ...SENSOR, FUEL LEVEL - KIT (INC. 8-9)...SENSOR, FUEL LEVEL - KIT (INC. 8-9)
-
80470-614 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
90470-613 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
100570-243 HOSE, GASLINE - ASSEMBLY (INC. 11)HOSE, GASLINE - ASSEMBLY (INC. 11)
-
110570-246 ...FILTER, FUEL - KIT...FILTER, FUEL - KIT
-
120423-688 CLAMP, HOSECLAMP, HOSE
-
130410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
148060-628 RIVETRIVET
-
151670-826 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
160470-827 BRACKET, FILTER MOUNTINGBRACKET, FILTER MOUNTING
-
170423-732 SCREW, SHOULDERSCREW, SHOULDER
-
180623-038 NUT W/WASHERNUT W/WASHER
-
190423-460 GROMMETGROMMET
-
200423-806 GROMMETGROMMET
-
210470-710 SHIELD, HEAT - GAS TANK - REARSHIELD, HEAT - GAS TANK - REAR
-
220623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
230470-709 SHIELD, HEAT - GAS TANK - FRONTSHIELD, HEAT - GAS TANK - FRONT
