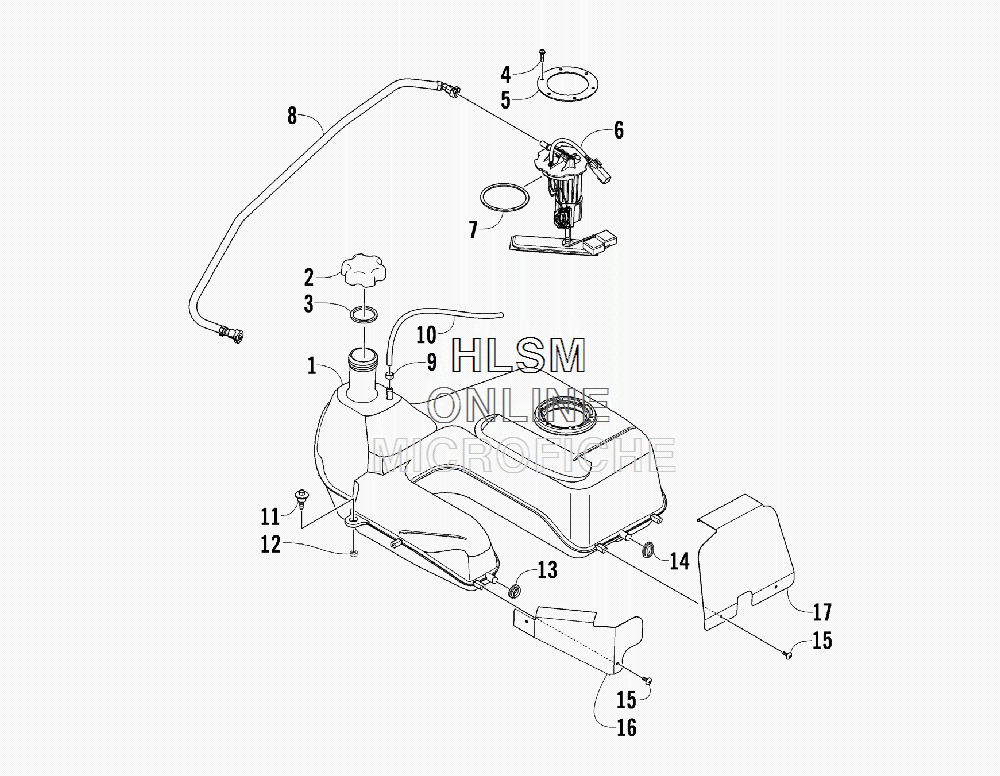

GAS TANK ASSEMBLY 2 для Arctic Cat MUDPRO 700 H1 EFI METALLIC CAT GREEN [A2010IFT4EUSA] - 2010 года выпуска
-
№АртикулНазвание
-
10570-307 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52670-042 ...PLATE, RETAINING...PLATE, RETAINING
-
60570-322 PUMP, FUEL - ASSEMBLY (INC. 7)PUMP, FUEL - ASSEMBLY (INC. 7)
-
70470-838 ...SEAL...SEAL
-
80570-317 HOSE, GASLINE - ASSEMBLYHOSE, GASLINE - ASSEMBLY
-
90423-688 CLAMP, HOSECLAMP, HOSE
-
100410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
110423-732 SCREW, SHOULDERSCREW, SHOULDER
-
120623-038 NUT W/WASHERNUT W/WASHER
-
130423-460 GROMMETGROMMET
-
140423-806 GROMMETGROMMET
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
160470-709 SHIELD, HEAT - GAS TANK - FRONTSHIELD, HEAT - GAS TANK - FRONT
-
170470-710 SHIELD, HEAT - GAS TANK - REARSHIELD, HEAT - GAS TANK - REAR
