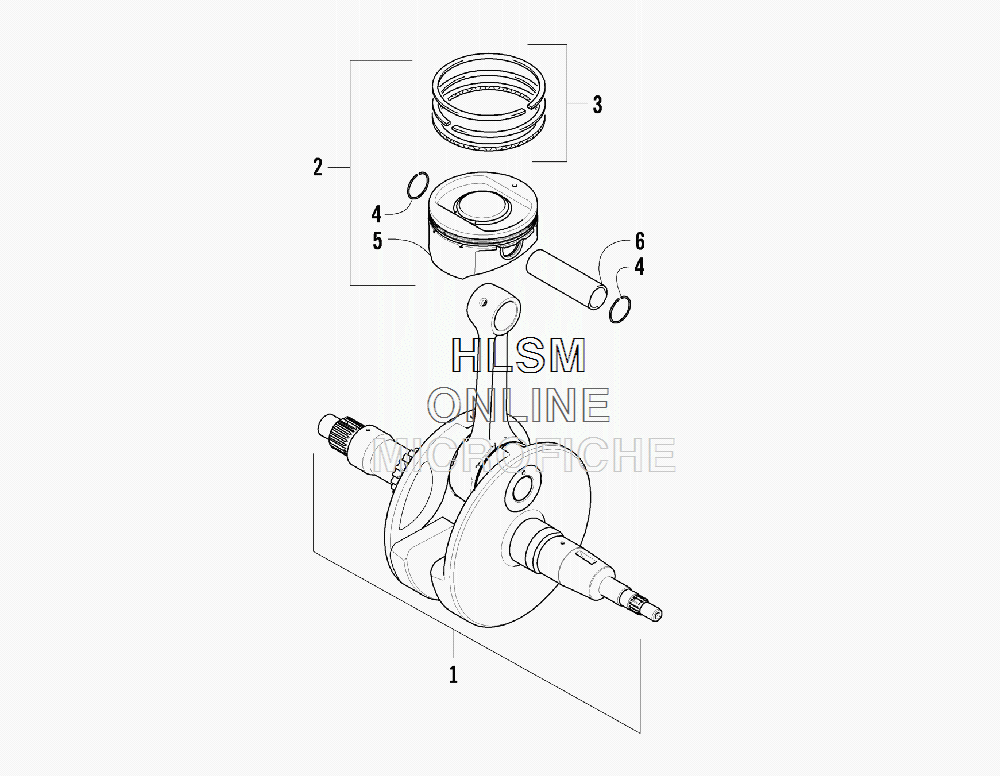

CRANKSHAFT AND PISTON ASSEMBLY для Arctic Cat TRV 500 HI EFI METALLIC BLACK [A2010TBO4EUSO] - 2010 года выпуска
-
№АртикулНазвание
-
10805-073 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
20805-064 PISTON SET (INC. 3-6)PISTON SET (INC. 3-6)
-
30805-065 ...RING, PISTON - SET...RING, PISTON - SET
-
40831-001 ...CIRCLIP, PISTON PIN...CIRCLIP, PISTON PIN
-
50805-059 ...PISTON...PISTON
-
60805-012 ...PIN, PISTON...PIN, PISTON
