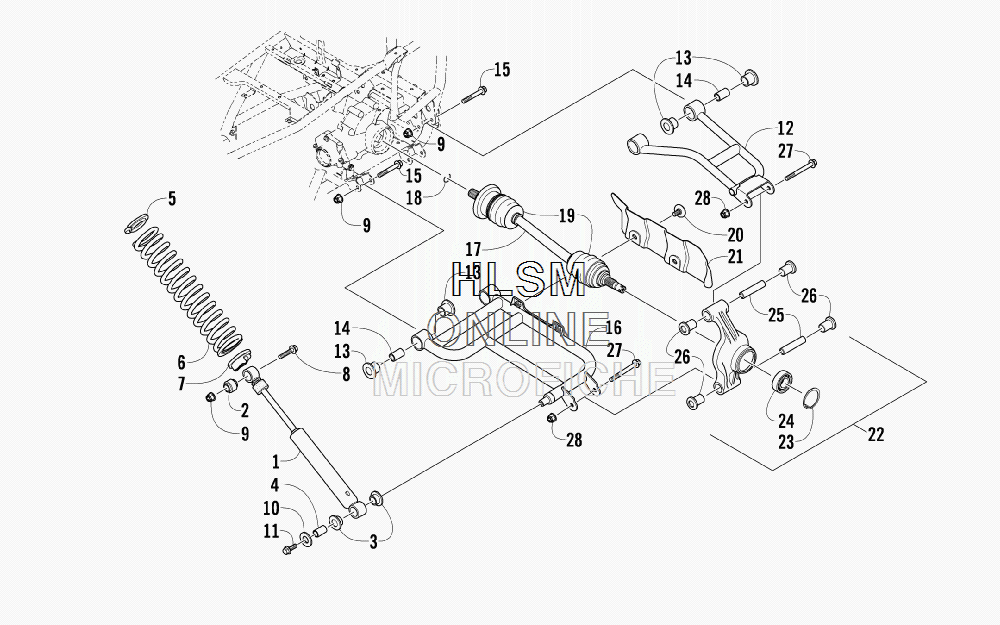

REAR SUSPENSION ASSEMBLY для Arctic Cat TRV 500 HI EFI METALLIC BLACK [A2010TBO4EUSO] - 2010 года выпуска
-
№АртикулНазвание
-
10404-158 SHOCK ABSORBER (INC. 2-4)SHOCK ABSORBER (INC. 2-4)
-
20403-182 ...BUSHING...BUSHING
-
30603-955 ...BUSHING...BUSHING
-
41603-219 ...SLEEVE...SLEEVE
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
60504-543 SPRING, SUSPENSION - PLATINUMSPRING, SUSPENSION - PLATINUM
-
70404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
88409-050 SCREW, CAPSCREW, CAP
-
90423-744 NUT, LOCKNUT, LOCK
-
100423-087 WASHERWASHER
-
118408-820 SCREW, CAPSCREW, CAP
-
120504-586 A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 13-14)A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 13-14)
-
120504-587 A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 13-14)A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 13-14)
-
130403-208 ...BUSHING...BUSHING
-
140403-214 ...AXLE...AXLE
-
158409-075 SCREW, CAPSCREW, CAP
-
160504-576 A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 13-14)A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 13-14)
-
160504-577 A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 13-14)A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 13-14)
-
171502-343 AXLE, DRIVE (INC. 18-19)AXLE, DRIVE (INC. 18-19)
-
180423-845 ...CLIP, RETAINING...CLIP, RETAINING
-
190436-276 ...REPAIR KIT, BOOT...REPAIR KIT, BOOT
-
200423-545 SCREW, SHOULDERSCREW, SHOULDER
-
211406-068 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
211406-069 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
220504-548 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 23-26)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 23-26)
-
220504-549 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 23-26)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 23-26)
-
230423-423 ...RING, RETAINING...RING, RETAINING
-
241402-809 ...BEARING...BEARING
-
250403-213 ...AXLE...AXLE
-
260403-206 ...BUSHING...BUSHING
-
278409-000 SCREW, CAPSCREW, CAP
-
288428-002 NUT, LOCKNUT, LOCK
