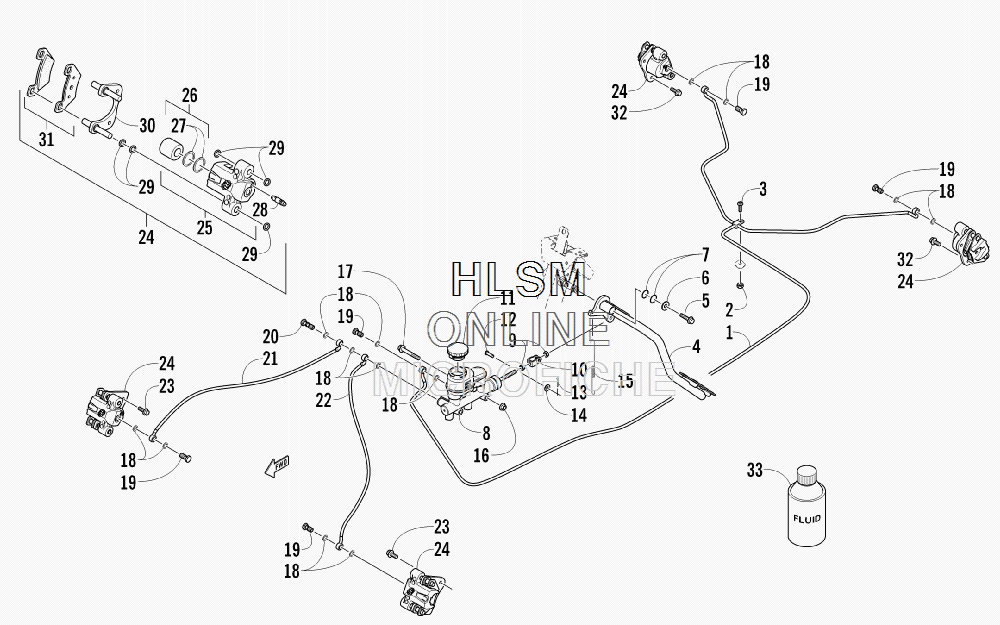

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat PROWLER HDX TIMBER CAMO [U2011P5T1PUSH] - 2011 года выпуска
-
№АртикулНазвание
-
11402-893 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
20623-038 NUT W/WASHERNUT W/WASHER
-
38476-620 SCREW, MACHINESCREW, MACHINE
-
41502-692 LEVER, BRAKELEVER, BRAKE
-
58408-822 SCREW, CAPSCREW, CAP
-
60623-044 WASHERWASHER
-
71602-213 O-RINGO-RING
-
80502-786 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 9-11)CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 9-11)
-
90402-592 ...NUT...NUT
-
101402-520 ...CLEVIS...CLEVIS
-
110405-225 ...CAP, RESERVOIR...CAP, RESERVOIR
-
121402-377 PIN,CLEVIS-1/4X51/64 Z & YPIN,CLEVIS-1/4X51/64 Z & Y
-
130117-868 PIN, COTTER - 1/16 X 3/4PIN, COTTER - 1/16 X 3/4
-
148050-217 WASHER,FLAT- 1/4 X .625 X .065 Z & YWASHER,FLAT- 1/4 X .625 X .065 Z & Y
-
150502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
168424-802 NUT, LOCKNUT, LOCK
-
178408-860 SCREW, CAPSCREW, CAP
-
180423-178 WASHER, CRUSHWASHER, CRUSH
-
190423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
200423-610 BOLT, DOUBLE BANJO-FITTINGBOLT, DOUBLE BANJO-FITTING
-
211402-290 HOSE, BRAKE - FRONT RIGHTHOSE, BRAKE - FRONT RIGHT
-
221402-389 HOSE, BRAKE - FRONT LEFTHOSE, BRAKE - FRONT LEFT
-
238408-826 SCREW, CAPSCREW, CAP
-
241502-730 CALIPER, BRAKE - FRONT RIGHT (INC. 25-31)CALIPER, BRAKE - FRONT RIGHT (INC. 25-31)
-
241502-731 CALIPER, BRAKE - FRONT LEFT (INC. 25-31)CALIPER, BRAKE - FRONT LEFT (INC. 25-31)
-
241502-726 CALIPER, BRAKE - REAR RIGHT (INC. 25-31)CALIPER, BRAKE - REAR RIGHT (INC. 25-31)
-
241502-727 CALIPER, BRAKE - REAR LEFT (INC. 25-31)CALIPER, BRAKE - REAR LEFT (INC. 25-31)
-
251436-160 ...HOUSING, CALIPER - ASSEMBLY - FRONT RIGHT...HOUSING, CALIPER - ASSEMBLY - FRONT RIGHT
-
251436-161 ...HOUSING, CALIPER - ASSEMBLY - FRONT LEFT...HOUSING, CALIPER - ASSEMBLY - FRONT LEFT
-
251436-160 ...HOUSING, CALIPER - ASSEMBLY - REAR RIGHT...HOUSING, CALIPER - ASSEMBLY - REAR RIGHT
-
251436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR LEFT...HOUSING, CALIPER - ASSEMBLY - REAR LEFT
-
260502-606 ......PISTON/SEAL SET (INC. 27)......PISTON/SEAL SET (INC. 27)
-
270502-607 LLL SEAL SETLLL SEAL SET
-
280502-609 ......VALVE, BLEED......VALVE, BLEED
-
290502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
300502-960 ...BRACKET ASSEMBLY - FRONT...BRACKET ASSEMBLY - FRONT
-
300502-605 ...BRACKET ASSEMBLY - REAR...BRACKET ASSEMBLY - REAR
-
311502-694 ...PAD,BRAKE-SET (TYPE 115)...PAD,BRAKE-SET (TYPE 115)
-
328408-821 SCREW, CAPSCREW, CAP
-
330436-902 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
