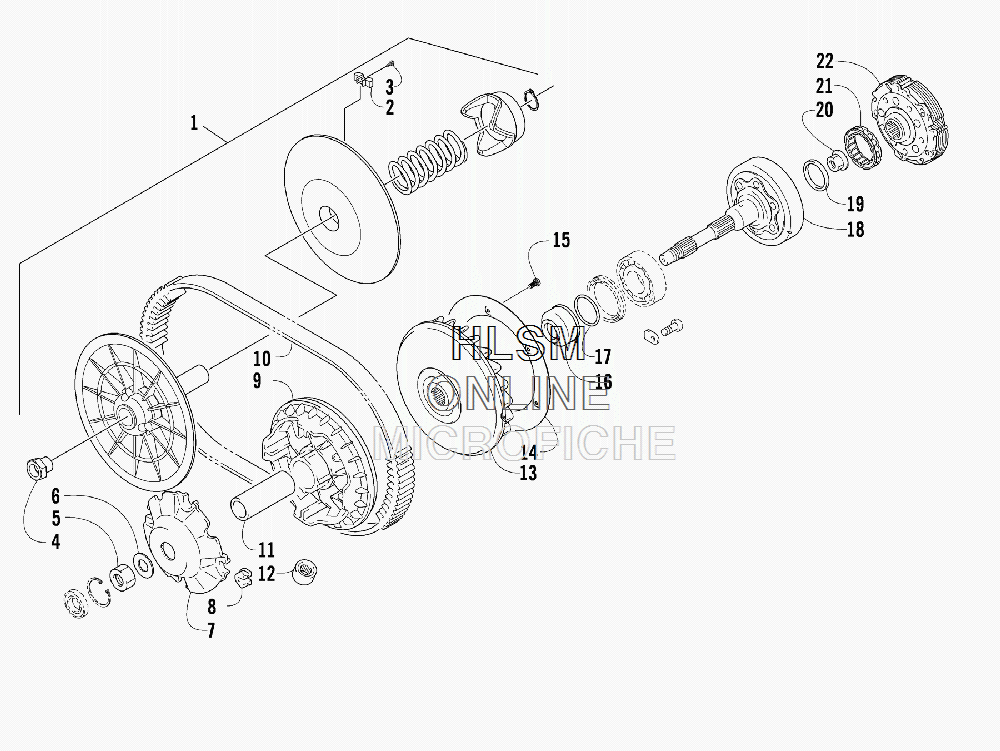

TRANSMISSION ASSEMBLY для Arctic Cat PROWLER HDX TIMBER CAMO [U2011P5T1PUSH] - 2011 года выпуска
-
№АртикулНазвание
-
10823-254 PULLEY, DRIVEN - ASSEMBLY (INC. 2-4)PULLEY, DRIVEN - ASSEMBLY (INC. 2-4)
-
20823-176 ...SHOE, CAM...SHOE, CAM
-
30823-177 ...SCREW, MACHINE...SCREW, MACHINE
-
40823-178 ...NUT...NUT
-
50827-010 NUTNUT
-
60828-106 WASHERWASHER
-
70823-008 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
80823-010 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
90823-159 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
100823-013 BELT, DRIVEBELT, DRIVE
-
110823-149 SPACERSPACER
-
120823-164 ROLLERROLLER
-
130823-156 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
140823-131 SHROUD, DRIVE FACESHROUD, DRIVE FACE
-
150623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
160823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
170470-531 O-RINGO-RING
-
180823-261 HOUSING, CLUTCH - ASSEMBLYHOUSING, CLUTCH - ASSEMBLY
-
190830-189 SEALSEAL
-
200827-011 NUTNUT
-
210823-018 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
220823-310 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
