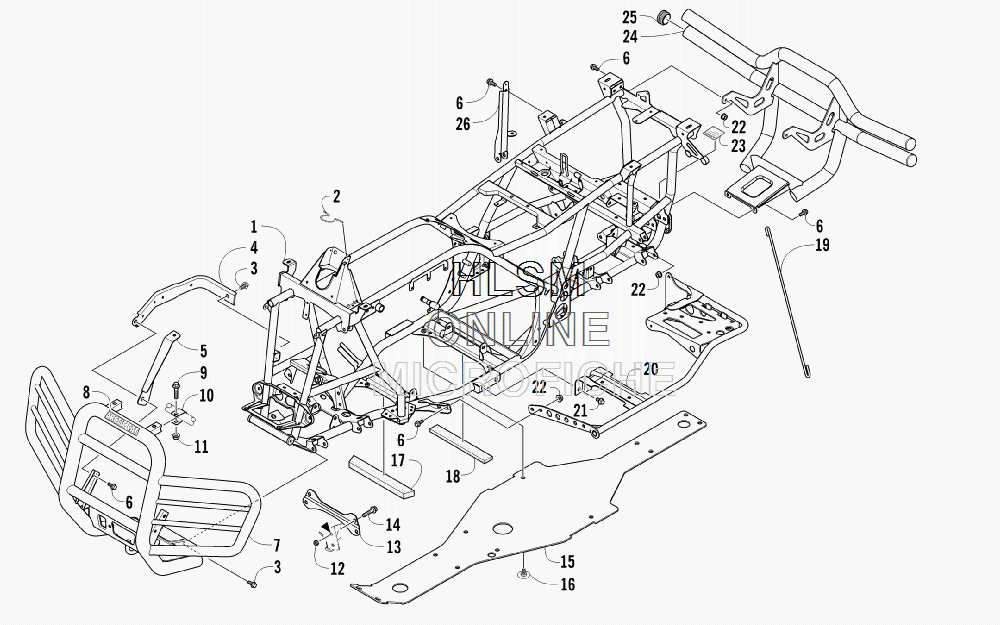

FRAME AND RELATED PARTS для Arctic Cat 1000 MUD PRO LTD BLACK-ORANGE [A2012MLW1PUSY] - 2012 года выпуска
-
№АртикулНазвание
-
14506-556 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
38409-020 SCREW, CAPSCREW, CAP
-
42506-285 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
51506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
51506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
68408-816 SCREW, CAPSCREW, CAP
-
72506-639 BUMPER, FRONTBUMPER, FRONT
-
80411-501 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
98410-835 SCREW, CAPSCREW, CAP
-
102506-641 STRAP, SUPPORT - BUMPERSTRAP, SUPPORT - BUMPER
-
118424-805 NUTNUT
-
120423-744 NUT, LOCKNUT, LOCK
-
132516-852 BRACE, A-ARMBRACE, A-ARM
-
148409-025 SCREW, CAPSCREW, CAP
-
152406-718 PANEL, BELLYPANEL, BELLY
-
160423-101 SCREW, SHOULDERSCREW, SHOULDER
-
172506-701 PAD, FRAMEPAD, FRAME
-
180406-289 PAD, FRAMEPAD, FRAME
-
192406-788 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
192406-789 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
202506-776 FOOTREST - RIGHTFOOTREST - RIGHT
-
201506-849 FOOTREST - LEFTFOOTREST - LEFT
-
218409-016 SCREW, CAPSCREW, CAP
-
228424-802 NUTNUT
-
231411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
-
240541-435 BUMPER, REARBUMPER, REAR
-
250406-130 PLUG, HOLEPLUG, HOLE
-
262506-447 BRACKET, SUPPORTBRACKET, SUPPORT
