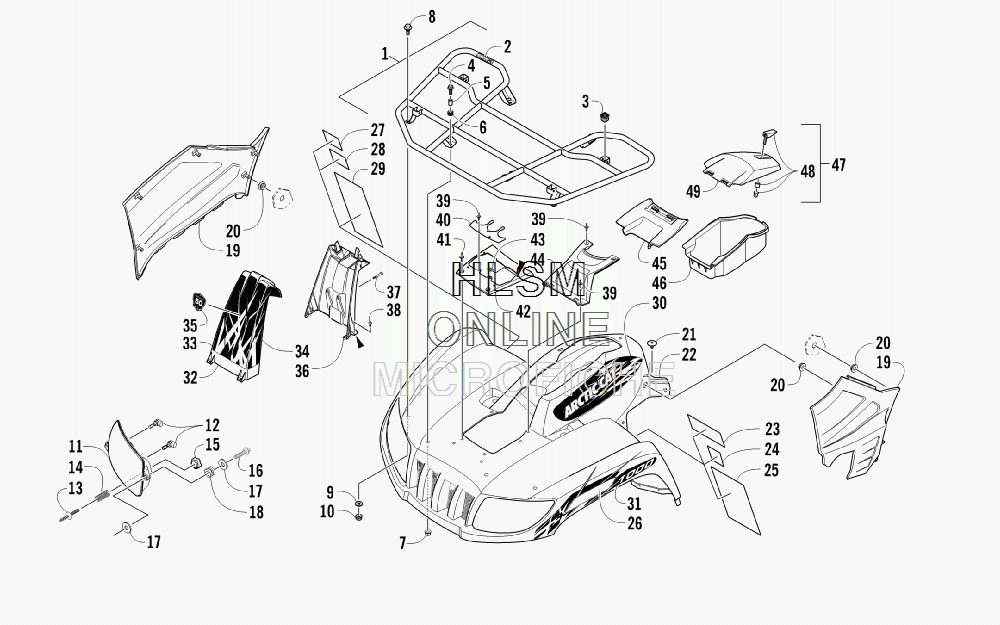

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 1000 MUD PRO LTD BLACK-ORANGE [A2012MLW1PUSY] - 2012 года выпуска

№

Артикул

Название
1

2506-643 RACK, FRONT - ASSEMBLY (INC. 2-3)

RACK, FRONT - ASSEMBLY (INC. 2-3)

48 460 ₽
2

0411-576 ...DECAL, WARNING - LOAD

...DECAL, WARNING - LOAD

3 740 ₽
3

0441-592 ...BUSHING, RACK

...BUSHING, RACK

650 ₽
4

8410-830 SCREW, CAP

SCREW, CAP

170 ₽
5

0423-669 SPACER

SPACER

210 ₽
6

0423-465 GROMMET

GROMMET

480 ₽
7

8432-802 NUT, LOCK

NUT, LOCK

110 ₽
8

0423-654 SCREW, SHOULDER

SCREW, SHOULDER

210 ₽
9

8050-222 WASHER

WASHER

110 ₽
10

0423-540 NUT, LOCK

NUT, LOCK

150 ₽
11

0509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)

HEADLIGHT ASSEMBLY - RIGHT (INC. 12)

24 330 ₽
11

0509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)

HEADLIGHT ASSEMBLY - LEFT (INC. 12)

24 330 ₽
12

0409-055 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

3 110 ₽
13

0423-514 STUD, ADJUSTER - HEADLIGHT

STUD, ADJUSTER - HEADLIGHT

750 ₽
14

0423-522 SPRING, ADJUSTER

SPRING, ADJUSTER

290 ₽
15

0423-513 KNOB, ADJUSTER

KNOB, ADJUSTER

860 ₽
16

0623-785 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

110 ₽
17

8050-217 WASHER

WASHER

20 ₽
18

0423-447 GROMMET

GROMMET

340 ₽
19

2406-802 PANEL, SIDE - LOWER - RIGHT

PANEL, SIDE - LOWER - RIGHT

9 980 ₽
19

2406-803 PANEL, SIDE - LOWER - LEFT

PANEL, SIDE - LOWER - LEFT

12 270 ₽
20

0423-678 GROMMET

GROMMET

310 ₽
21

0423-101 SCREW, SHOULDER

SCREW, SHOULDER

190 ₽
22

2516-572 PANEL, FENDER - ASSEMBLY - BLACK (INC. 23-29)

PANEL, FENDER - ASSEMBLY - BLACK (INC. 23-29)

130 ₽
23

1411-574 ...DECAL, WARNING - OFF-ROAD ONLY

...DECAL, WARNING - OFF-ROAD ONLY

500 ₽
24

1411-804 ...DECAL, WARNING - AGE

...DECAL, WARNING - AGE

750 ₽
25

1411-932 ...DECAL, WARNING - GENERAL

...DECAL, WARNING - GENERAL

1 870 ₽
26

0411-818 ...DECAL, REFLECTOR - RIGHT - AMBER

...DECAL, REFLECTOR - RIGHT - AMBER

980 ₽
26

0411-819 ...DECAL, REFLECTOR - LEFT - AMBER

...DECAL, REFLECTOR - LEFT - AMBER

980 ₽
27

0411-835 ...DECAL, WARNING - TURN/HILL

...DECAL, WARNING - TURN/HILL

750 ₽
28

1411-906 ...DECAL, WARNING - THROTTLE

...DECAL, WARNING - THROTTLE

2 490 ₽
29

1411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE

...DECAL, WARNING - REVERSE/PRE-RIDE

1 870 ₽
30

2411-764 DECAL, SIDE - UPPER RIGHT

DECAL, SIDE - UPPER RIGHT

3 740 ₽
30

2411-765 DECAL, SIDE - UPPER LEFT

DECAL, SIDE - UPPER LEFT

3 740 ₽
31

2411-766 DECAL, SIDE - FRONT RIGHT

DECAL, SIDE - FRONT RIGHT

2 910 ₽
31

2411-767 DECAL, SIDE - FRONT LEFT

DECAL, SIDE - FRONT LEFT

3 110 ₽
32

4506-301 COVER, INTAKE - FRONT - BLACK

COVER, INTAKE - FRONT - BLACK

20 790 ₽
33

2411-754 DECAL, INTAKE - FRONT

DECAL, INTAKE - FRONT

4 990 ₽
34

2411-753 DECAL, SIDE

DECAL, SIDE

4 990 ₽
35

9611-399 DECAL, 50TH ANNIVERSARY

DECAL, 50TH ANNIVERSARY

4 780 ₽
36

4506-306 COVER, INTAKE - REAR - BLACK

COVER, INTAKE - REAR - BLACK

11 020 ₽
37

8468-645 SCREW, MACHINE

SCREW, MACHINE

110 ₽
38

8468-616 SCREW, MACHINE

SCREW, MACHINE

110 ₽
39

0623-362 RIVET, REINSTALLABLE

RIVET, REINSTALLABLE

110 ₽
40

2416-100 SHIELD, SPLASH

SHIELD, SPLASH

1 660 ₽
41

0423-535 RIVET, REINSTALLABLE

RIVET, REINSTALLABLE

210 ₽
42

2516-170 COVER, ACCESS

COVER, ACCESS

4 990 ₽
43

0423-577 CLIP, U-NUT

CLIP, U-NUT

210 ₽
44

1406-484 COVER, STEERING POST

COVER, STEERING POST

2 700 ₽
45

0470-513 COVER, STORAGE BOX

COVER, STORAGE BOX

3 320 ₽
46

1406-573 BOX, STORAGE

BOX, STORAGE

3 950 ₽
47

2506-234 LID, STORAGE BOX W/LATCH (INC. 48-49)

LID, STORAGE BOX W/LATCH (INC. 48-49)

4 780 ₽
48

1406-599 ...LATCH, STORAGE BOX

...LATCH, STORAGE BOX

2 700 ₽
49

0470-514 ...LID, STORAGE BOX

...LID, STORAGE BOX

3 740 ₽
