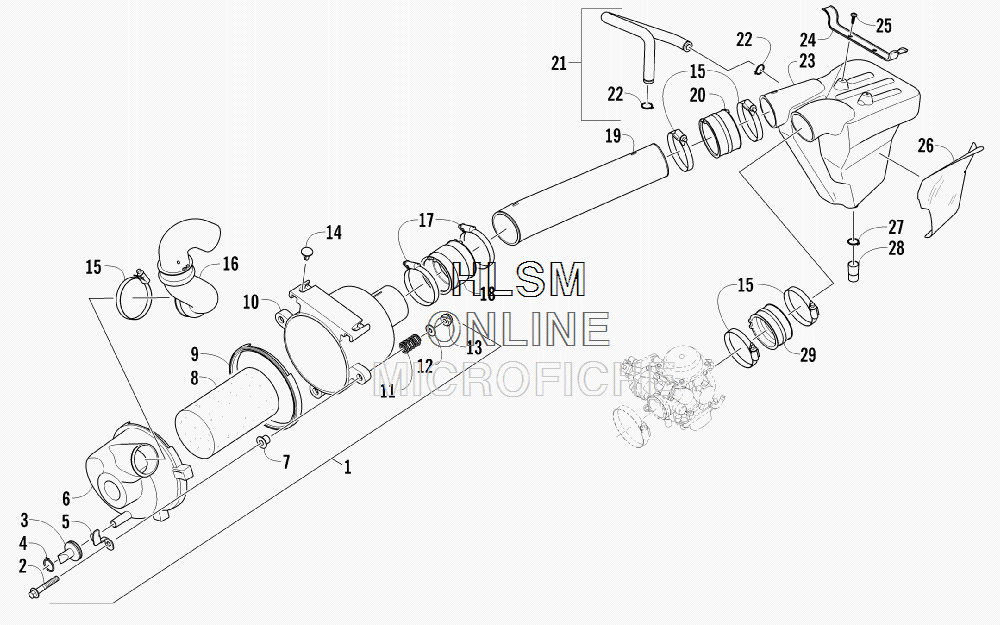

AIR INTAKE ASSEMBLY для Arctic Cat 350 CR RED [A2012IRG4BUSR] - 2012 года выпуска
-
№АртикулНазвание
-
13313-395 FILTER, AIR - ASSEMBLY (INC. 2-13)FILTER, AIR - ASSEMBLY (INC. 2-13)
-
28408-850 ...SCREW, CAP...SCREW, CAP
-
30470-442 ...VALVE, DRAIN...VALVE, DRAIN
-
43313-705 ...CLAMP...CLAMP
-
53313-375 ...LATCH...LATCH
-
63313-376 ...COVER, AIR FILTER...COVER, AIR FILTER
-
73313-853 ...SPACER...SPACER
-
83313-378 ...ELEMENT, AIR FILTER...ELEMENT, AIR FILTER
-
93313-446 ...GASKET, AIR FILTER...GASKET, AIR FILTER
-
103313-377 ...HOUSING, AIR FILTER...HOUSING, AIR FILTER
-
110402-678 ...SPRING...SPRING
-
128050-222 ...WASHER...WASHER
-
133303-269 ...NUT, LOCK...NUT, LOCK
-
143305-448 CLIP, RETAININGCLIP, RETAINING
-
150423-317 CLAMPCLAMP
-
163313-816 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
173313-817 CLAMPCLAMP
-
183313-275 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
193313-063 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
203313-274 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
213313-397 HOSE, OIL CATCH (INC. 22)HOSE, OIL CATCH (INC. 22)
-
223304-167 ...CLAMP, HOSE...CLAMP, HOSE
-
233313-224 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
243313-356 BRACKET, MOUNTING - AIR INTAKE HOUSINGBRACKET, MOUNTING - AIR INTAKE HOUSING
-
253304-409 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
263313-362 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
273313-706 CLAMPCLAMP
-
283313-543 PIPE, DRAINPIPE, DRAIN
-
293313-551 BOOT, AIR INTAKEBOOT, AIR INTAKE
