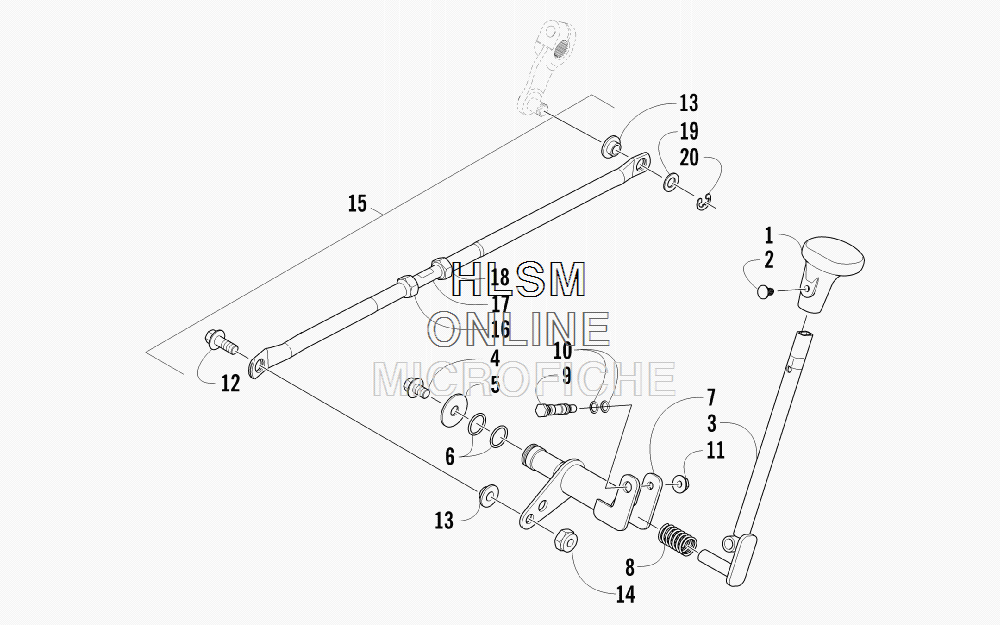

SHIFT LEVER ASSEMBLY для Arctic Cat 350 CR RED [A2012IRG4BUSR] - 2012 года выпуска
-
№АртикулНазвание
-
10402-843 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
20423-345 CLIP, RETAININGCLIP, RETAINING
-
33313-317 LEVER, SHIFTLEVER, SHIFT
-
43304-544 SCREW, CAPSCREW, CAP
-
50423-087 WASHERWASHER
-
60423-299 O-RINGO-RING
-
73306-317 ACTUATOR, SHIFTACTUATOR, SHIFT
-
80402-678 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
90402-675 AXLE, PIVOTAXLE, PIVOT
-
100423-182 O-RINGO-RING
-
113304-654 NUT, LOCKNUT, LOCK
-
123313-821 SCREW, CAPSCREW, CAP
-
133323-037 BUSHINGBUSHING
-
143305-396 NUT, LOCKNUT, LOCK
-
153306-319 LINKAGE, SHIFT - ASSEMBLY (INC. 16-18)LINKAGE, SHIFT - ASSEMBLY (INC. 16-18)
-
163303-327 ...NUT, HEX - RIGHT-HAND THREAD...NUT, HEX - RIGHT-HAND THREAD
-
173313-278 ...ADJUSTER, SHIFT LINKAGE...ADJUSTER, SHIFT LINKAGE
-
183313-822 ...NUT, HEX - LEFT-HAND THREAD...NUT, HEX - LEFT-HAND THREAD
-
193304-138 WASHERWASHER
-
203313-766 E-RINGE-RING
