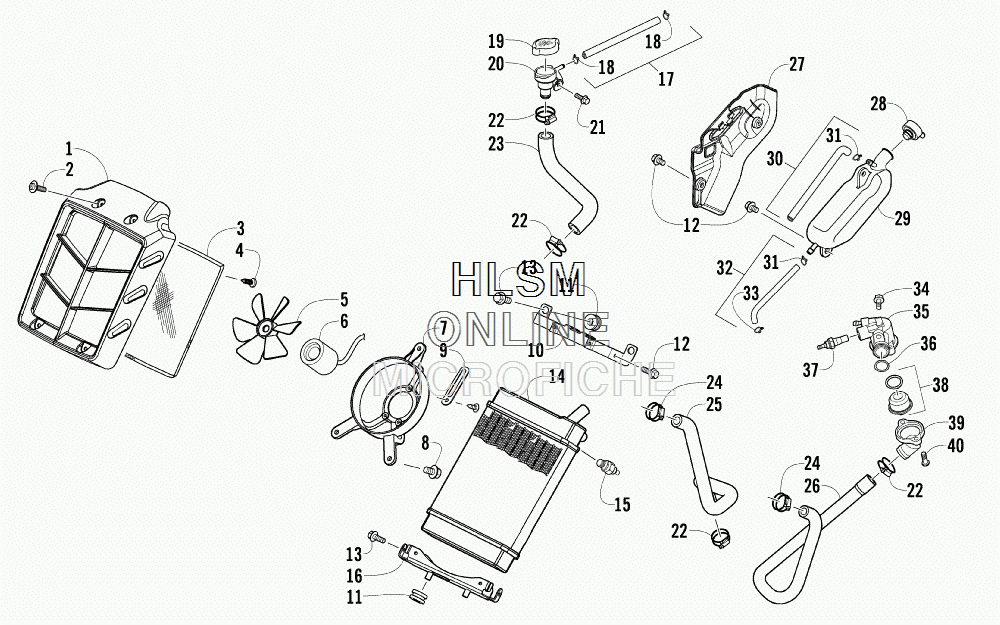

COOLING ASSEMBLY для Arctic Cat 300 2X4 [A2013KUF2BUSP] - 2013 года выпуска
-
№АртикулНазвание
-
13305-973 FASCIA, RADIATORFASCIA, RADIATOR
-
23303-263 SCREW, CAPSCREW, CAP
-
33303-744 SCREEN, RADIATORSCREEN, RADIATOR
-
43304-123 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
53303-741 FAN, COOLINGFAN, COOLING
-
63303-742 MOTOR, FANMOTOR, FAN
-
73303-739 SHROUD, FANSHROUD, FAN
-
83304-586 SCREW, CAPSCREW, CAP
-
93304-155 CLAMP, WIRECLAMP, WIRE
-
103303-983 BRACKET, RADIATOR - UPPERBRACKET, RADIATOR - UPPER
-
113303-239 GROMMETGROMMET
-
123304-587 SCREW, CAPSCREW, CAP
-
133304-116 SCREW, CAPSCREW, CAP
-
143303-737 RADIATOR ASSEMBLYRADIATOR ASSEMBLY
-
153303-862 SWITCH, TEMPERATURESWITCH, TEMPERATURE
-
163303-984 BRACKET, RADIATOR - LOWERBRACKET, RADIATOR - LOWER
-
173304-066 HOSE, OVERFLOW (INC. 18)HOSE, OVERFLOW (INC. 18)
-
183304-161 ...CLAMP, HOSE...CLAMP, HOSE
-
193303-748 CAP, RADIATORCAP, RADIATOR
-
203303-738 NECK, FILLERNECK, FILLER
-
213304-553 SCREW, CAPSCREW, CAP
-
223304-165 CLAMP, HOSECLAMP, HOSE
-
233303-761 HOSE, COOLANT - FILLER NECK/RADIATORHOSE, COOLANT - FILLER NECK/RADIATOR
-
243304-164 CLAMP, HOSECLAMP, HOSE
-
253303-759 HOSE, COOLANT - RADIATOR/WATER PUMPHOSE, COOLANT - RADIATOR/WATER PUMP
-
263303-760 HOSE, COOLING - ENGINE/RADIATORHOSE, COOLING - ENGINE/RADIATOR
-
273305-974 SHIELD, RESERVOIR TANKSHIELD, RESERVOIR TANK
-
283303-749 CAP, RESERVOIR TANKCAP, RESERVOIR TANK
-
293304-253 TANK, RESERVOIRTANK, RESERVOIR
-
303303-745 HOSE, DRAIN (INC. ONE NO. 31)HOSE, DRAIN (INC. ONE NO. 31)
-
313304-163 ...CLAMP, HOSE...CLAMP, HOSE
-
323303-746 HOSE, RESERVOIR TANK (INC. 33 AND ONE NO. 31)HOSE, RESERVOIR TANK (INC. 33 AND ONE NO. 31)
-
333303-349 ...CLAMP, HOSE...CLAMP, HOSE
-
343303-617 SCREW, CAPSCREW, CAP
-
353303-756 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
363304-094 O-RINGO-RING
-
373303-861 UNIT, THERMOSTATUNIT, THERMOSTAT
-
383303-755 THERMOSTATTHERMOSTAT
-
393303-757 CAP, THERMOSTATCAP, THERMOSTAT
-
403304-118 SCREW, MACHINESCREW, MACHINE
