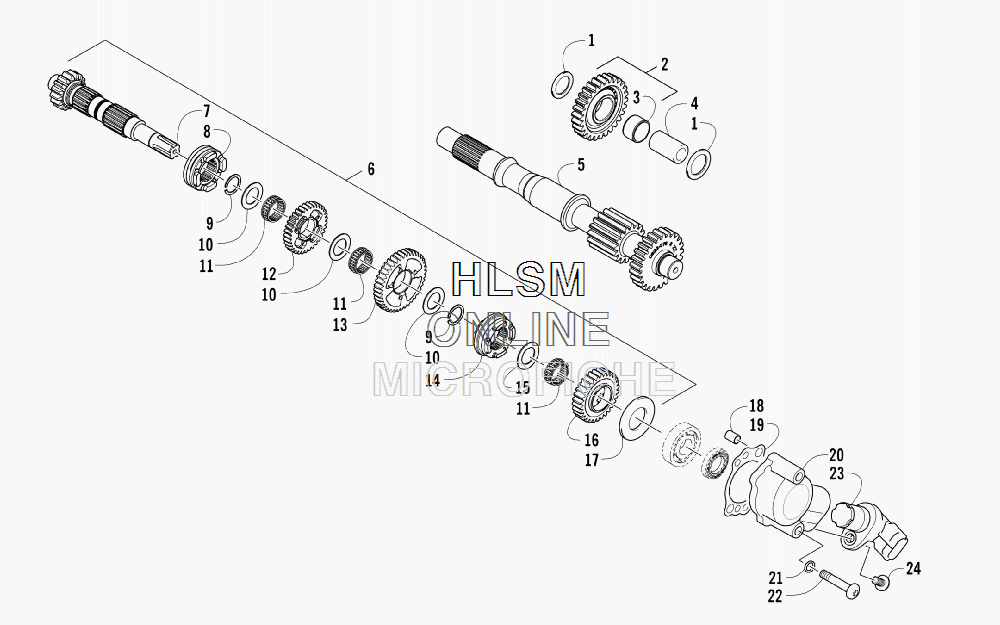

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat Prowler 550 XT 4x4 [U2013P2O4EOSS] (INTERNATIONAL) - 2013 года выпуска
-
№АртикулНазвание
-
10828-101 WASHER, THRUSTWASHER, THRUST
-
20822-092 GEAR, REVERSE IDLE (INC. 3)GEAR, REVERSE IDLE (INC. 3)
-
40822-080 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
50822-076 DRIVESHAFTDRIVESHAFT
-
60822-133 COUNTERSHAFT ASSEMBLY (INC. 7-17)COUNTERSHAFT ASSEMBLY (INC. 7-17)
-
70822-134 ...COUNTERSHAFT...COUNTERSHAFT
-
80822-135 ...GEAR SELECT, REVERSE...GEAR SELECT, REVERSE
-
90831-091 ...RING, RETAINING...RING, RETAINING
-
100828-099 ...WASHER, SPLINE...WASHER, SPLINE
-
110832-061 ...BEARING...BEARING
-
120822-136 ...GEAR, REVERSE DRIVEN-33T...GEAR, REVERSE DRIVEN-33T
-
130822-137 ...GEAR, DRIVEN-LOW-40T...GEAR, DRIVEN-LOW-40T
-
140822-138 ...GEAR SELECT, SLIDING...GEAR SELECT, SLIDING
-
150822-075 ...SHIM...SHIM
-
160822-139 ...GEAR, DRIVEN-HIGH-30T...GEAR, DRIVEN-HIGH-30T
-
170829-059 ...WASHER, THRUST...WASHER, THRUST
-
180829-023 PIN, DOWELPIN, DOWEL
-
190830-129 GASKETGASKET
-
200822-130 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
210830-107 GASKET. FASTENERGASKET. FASTENER
-
228468-645 SCREW, MACHINESCREW, MACHINE
-
230824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
248468-620 SCREW, MACHINESCREW, MACHINE
