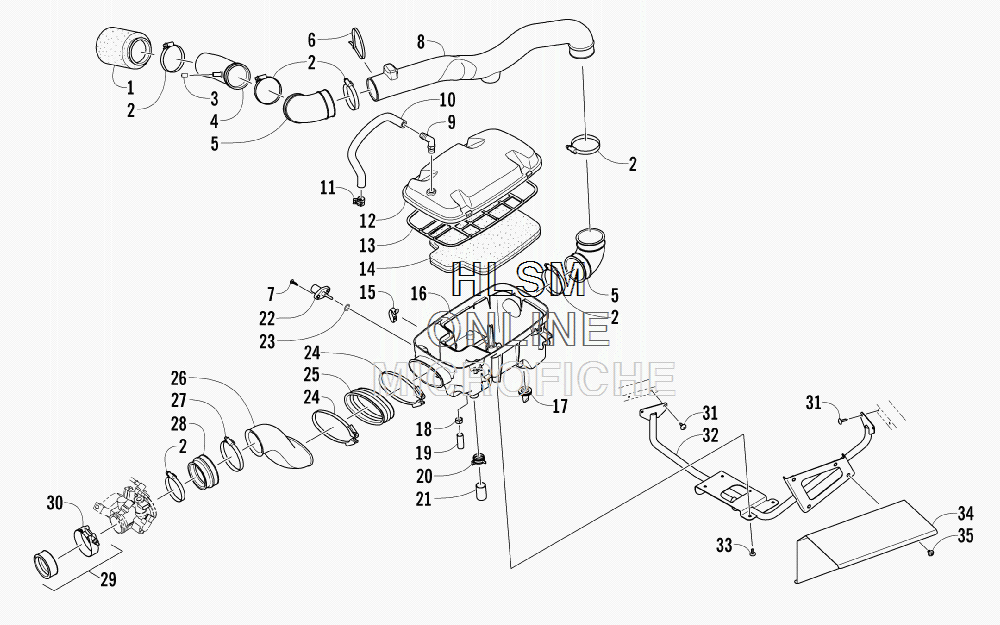

AIR INTAKE ASSEMBLY для Arctic Cat Prowler 700 HDX 4x4 - STEEL BLUE [U2013P5T1PUSV] - 2013 года выпуска
-
№АртикулНазвание
-
10470-834 FILTER, INTAKEFILTER, INTAKE
-
20423-019 CLAMPCLAMP
-
31423-050 CAPCAP
-
40513-043 DUCT, INTAKEDUCT, INTAKE
-
50413-098 BOOT, AIR-INBOOT, AIR-IN
-
60123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
70423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80470-900 DUCT, INTAKEDUCT, INTAKE
-
90470-881 FITTING,ELBOW-1/4 NPT X1/2 HB (NYLON)FITTING,ELBOW-1/4 NPT X1/2 HB (NYLON)
-
100410-226 HOSE, VENTHOSE, VENT
-
111623-281 CLAMP, HOSECLAMP, HOSE
-
120470-861 COVER, AIR INTAKECOVER, AIR INTAKE
-
130470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
140470-558 FILTER, AIRFILTER, AIR
-
150423-455 CLIP, SPRINGCLIP, SPRING
-
160570-327 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
170470-442 VALVE, DRAINVALVE, DRAIN
-
180610-563 CLAMP, HOSECLAMP, HOSE
-
190470-863 CAP, DRAINCAP, DRAIN
-
201623-287 CLAMP, HOSECLAMP, HOSE
-
210423-766 CAP, DRAINCAP, DRAIN
-
220430-055 SENSOR, AIR TEMPERATURE (INC. 23)SENSOR, AIR TEMPERATURE (INC. 23)
-
235507-224 ...O-RING...O-RING
-
241423-074 CLAMPCLAMP
-
250470-906 BOOT,INTAKE-OVAL-LRGBOOT,INTAKE-OVAL-LRG
-
260470-901 RUNNER,INTAKERUNNER,INTAKE
-
270423-018 CLAMPCLAMP
-
280470-907 BOOTBOOT
-
290437-069 BOOT (INC. 30)BOOT (INC. 30)
-
301423-041 CLAMP, MANIFOLDCLAMP, MANIFOLD
-
310623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
322516-706 MOUNT, AIRBOXMOUNT, AIRBOX
-
338468-612 SCREW, MACHINESCREW, MACHINE
-
340470-908 SHIELD, HEATSHIELD, HEAT
-
358477-610 SCREW, MACHINESCREW, MACHINE
