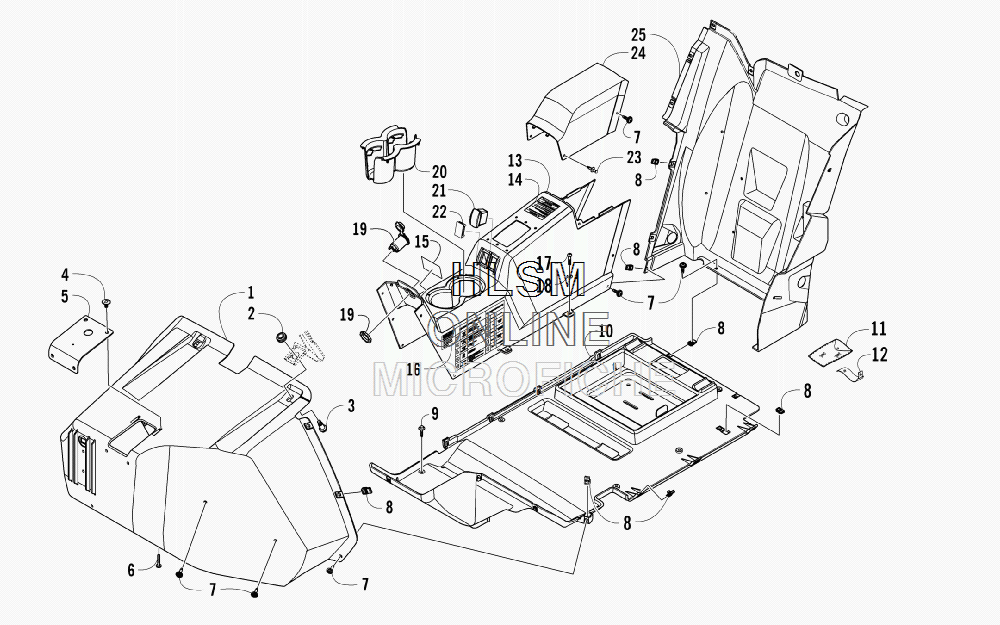

CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat Wildcat 1000 Limited - WHITE [U2013W3W1POSW] (INTERNATIONAL) (Late Build) - 2013 года выпуска
-
№АртикулНазвание
-
21423-104 GROMMETGROMMET
-
31423-125 SCREW, SHOULDERSCREW, SHOULDER
-
40623-544 CLIP, RETAININGCLIP, RETAINING
-
52416-983 PANEL, FILLER - BRAKE PEDALPANEL, FILLER - BRAKE PEDAL
-
61423-083 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70423-609 SCREW, MACHINESCREW, MACHINE
-
80423-577 CLIP, U-NUTCLIP, U-NUT
-
91423-142 SCREW, CAP W/WASHERSCREW, CAP W/WASHER
-
102416-516 PANEL, FLOOR - RIGHTPANEL, FLOOR - RIGHT
-
102416-517 PANEL, FLOOR - LEFTPANEL, FLOOR - LEFT
-
112516-863 KIT, TOOLKIT, TOOL
-
120707-582 RETAINER, TOOL KITRETAINER, TOOL KIT
-
135506-247 CONSOLE - FRONT (INC. 14-16)CONSOLE - FRONT (INC. 14-16)
-
143411-262 ...DECAL, WARNING - REVERSE...DECAL, WARNING - REVERSE
-
152411-311 ...DECAL, STARTING INSTRUCTION...DECAL, STARTING INSTRUCTION
-
162411-940 ...DECAL, PRE-RIDE...DECAL, PRE-RIDE
-
178468-635 SCREW, MACHINESCREW, MACHINE
-
188050-223 WASHERWASHER
-
190641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
202416-109 INSERT, CUPHOLDERINSERT, CUPHOLDER
-
210409-071 SWITCH, OVERRIDESWITCH, OVERRIDE
-
220409-070 PLUG, SWITCH-HOLEPLUG, SWITCH-HOLE
-
230623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
242416-841 COVER, ACCESS - BATTERYCOVER, ACCESS - BATTERY
-
254406-228 PANEL, SPLASH - RIGHTPANEL, SPLASH - RIGHT
-
254406-229 PANEL, SPLASH - LEFTPANEL, SPLASH - LEFT
