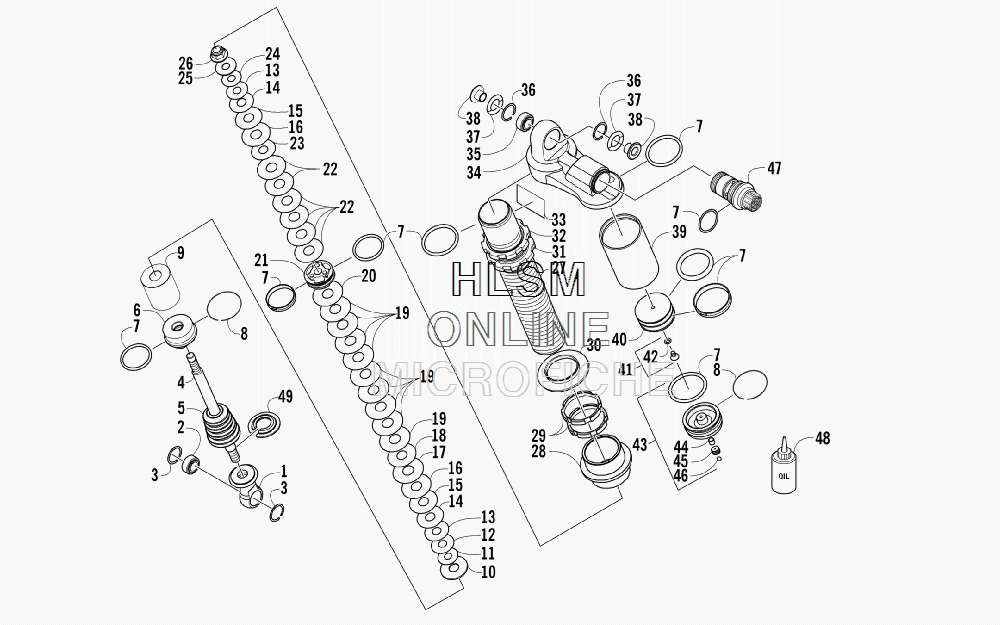

REAR SUSPENSION SHOCK ABSORBER для Arctic Cat Wildcat 1000 Limited - WHITE [U2013W3W1POSW] (INTERNATIONAL) (Late Build) - 2013 года выпуска
-
№АртикулНазвание
-
-0404-363 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10404-380 EYELETEYELET
-
20404-375 BEARINGBEARING
-
30404-376 RING, RETAININGRING, RETAINING
-
40404-381 ROD, SHOCKROD, SHOCK
-
50403-361 BUMPER, SHOCKBUMPER, SHOCK
-
60403-379 END CAP, SHOCKEND CAP, SHOCK
-
70403-393 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
-
80604-992 RING, RETAININGRING, RETAINING
-
90404-382 SPACERSPACER
-
102604-449 WASHER, TOP OUTWASHER, TOP OUT
-
112604-476 VALVE, 0.800 X 0.015 IN.VALVE, 0.800 X 0.015 IN.
-
122604-482 VALVE, 0.950 X 0.015 IN.VALVE, 0.950 X 0.015 IN.
-
132604-488 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
142604-688 VALVE, 1.250 X 0.015 IN.VALVE, 1.250 X 0.015 IN.
-
152604-494 VALVE, 1.350 X 0.015 IN.VALVE, 1.350 X 0.015 IN.
-
162604-499 VALVE, 1.425 X 0.015 IN.VALVE, 1.425 X 0.015 IN.
-
172604-504 VALVE, 1.600 X 0.015 IN.VALVE, 1.600 X 0.015 IN.
-
180404-383 VALVE, 1.300 X 0.004 IN.VALVE, 1.300 X 0.004 IN.
-
192604-502 VALVE, 1.600 X 0.010 IN.VALVE, 1.600 X 0.010 IN.
-
200403-385 VALVE, 1.600 X 0.006 IN.VALVE, 1.600 X 0.006 IN.
-
210403-394 PISTON, HIGH-FLOWPISTON, HIGH-FLOW
-
222604-496 VALVE, 1.425 X 0.008 IN.VALVE, 1.425 X 0.008 IN.
-
230404-384 VALVE, 1.200 X 0.006 IN.VALVE, 1.200 X 0.006 IN.
-
240404-385 VALVE, 1.050 X 0.015 IN.VALVE, 1.050 X 0.015 IN.
-
250403-383 WASHER, TOP OUTWASHER, TOP OUT
-
260403-362 NUTNUT
-
270404-378 BODY, SHOCKBODY, SHOCK
-
280403-346 SLEEVE, WEARSLEEVE, WEAR
-
290404-368 NUT, ADJUSTERNUT, ADJUSTER
-
300403-352 SEAT, SPRINGSEAT, SPRING
-
310403-350 NUT, ADJUSTERNUT, ADJUSTER
-
320403-348 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
330403-363 DECAL, SHOCKDECAL, SHOCK
-
343604-726 END CAP, SHOCK/RESERVOIREND CAP, SHOCK/RESERVOIR
-
351604-664 BEARINGBEARING
-
363604-147 RING, RETAININGRING, RETAINING
-
370603-680 O-RINGO-RING
-
380404-367 SPACERSPACER
-
390403-369 RESERVOIRRESERVOIR
-
400403-377 PISTON, INTERNAL FLOATING (INC. 41-42)PISTON, INTERNAL FLOATING (INC. 41-42)
-
411604-316 ...SCREW, MACHINE W/O-RING (INC. 42)...SCREW, MACHINE W/O-RING (INC. 42)
-
421604-425 ......O-RING......O-RING
-
433604-517 END CAP, RESERVOIR (INC. 44-46)END CAP, RESERVOIR (INC. 44-46)
-
441604-428 ...PLUG...PLUG
-
452603-338 ...SCREW, SET...SCREW, SET
-
462603-337 ...BALL...BALL
-
470403-380 PISTON, CONCENTRIC - DAMPING ADJUSTERPISTON, CONCENTRIC - DAMPING ADJUSTER
-
485639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
490403-345 RETAINER, SPRINGRETAINER, SPRING
