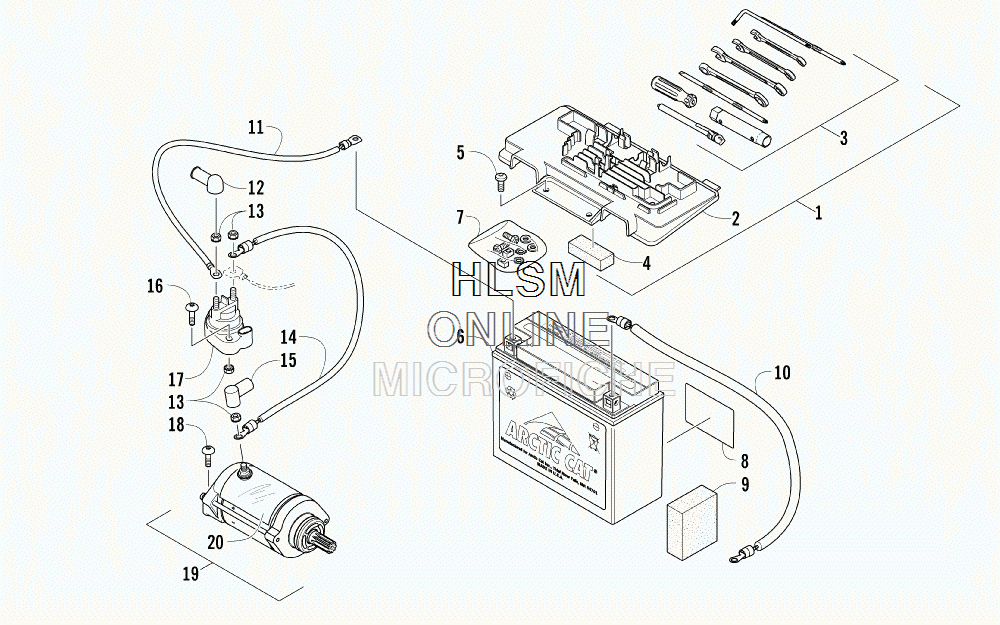

BATTERY AND STARTER ASSEMBLY для Arctic Cat ATV 1000 XT TEAM GREEN [A2014AGW1PUSX] - 2014 года выпуска
-
№АртикулНазвание
-
15993-040 BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)BATTERY COVER/TOOL TRAY ASSEMBLY (INC. 2-4)
-
24406-136 ...COVER, BATTERY...COVER, BATTERY
-
30444-122 ...KIT, TOOL...KIT, TOOL
-
40417-016 ...PAD, FOAM...PAD, FOAM
-
58476-620 SCREW, MACHINESCREW, MACHINE
-
60645-480 BATTERY, SEALED-12V-310 CCA (INC. 7-8)BATTERY, SEALED-12V-310 CCA (INC. 7-8)
-
70445-082 ...KIT, HARDWARE...KIT, HARDWARE
-
80645-430 ...DECAL, WARNING...DECAL, WARNING
-
90417-012 PAD, FOAMPAD, FOAM
-
100445-063 CABLE, BATTERY/GROUND (27" BLK #6)CABLE, BATTERY/GROUND (27" BLK #6)
-
110445-062 CABLE, BATTERY/SOLENIOD (8.5" RED #6)CABLE, BATTERY/SOLENIOD (8.5" RED #6)
-
120645-327 BOOT, TERMINALBOOT, TERMINAL
-
130623-038 NUT W/WASHERNUT W/WASHER
-
140445-066 CABLE, SOLENOID/STARTER (INC. 15) (56" RED #6)CABLE, SOLENOID/STARTER (INC. 15) (56" RED #6)
-
150645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
168476-630 SCREW, MACHINESCREW, MACHINE
-
170445-058 SOLENOIDSOLENOID
-
188476-625 SCREW, MACHINESCREW, MACHINE
-
190825-027 MOTOR, STARTER - ASSEMBLY (INC. 20)MOTOR, STARTER - ASSEMBLY (INC. 20)
-
200412-677 ...SHIELD, HEAT - STARTER...SHIELD, HEAT - STARTER
