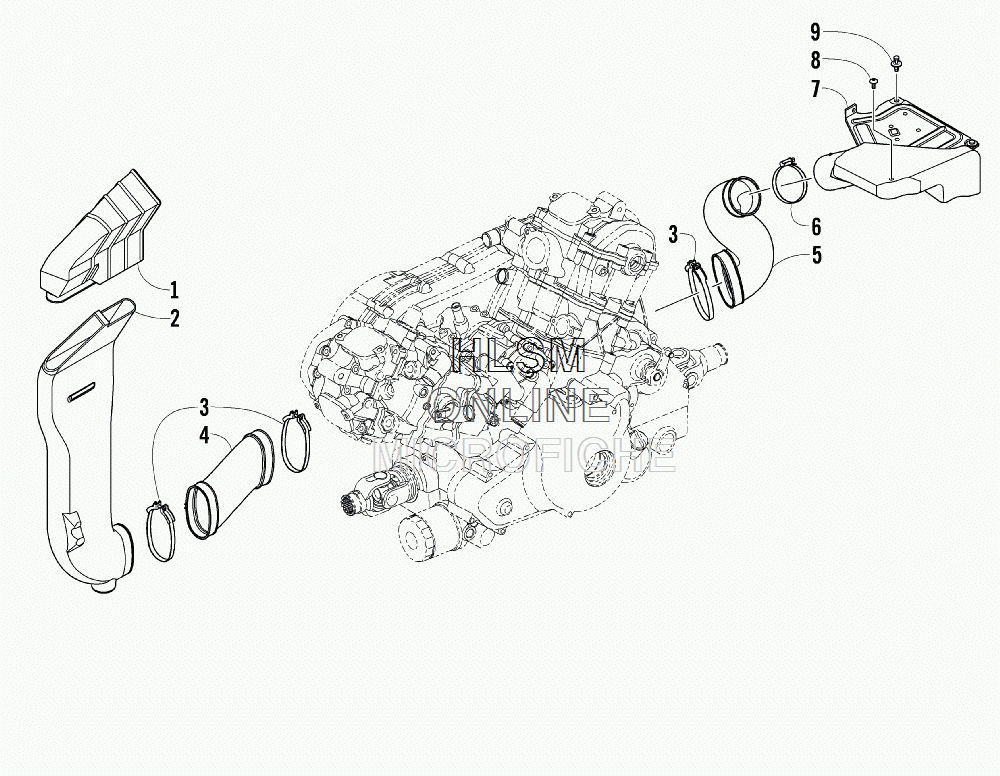

CASE/BELT COOLING ASSEMBLY для Arctic Cat ATV 1000 XT TEAM GREEN [A2014AGW1PUSX] - 2014 года выпуска
-
№АртикулНазвание
-
10413-137 SHROUD, AIR - AIR INSHROUD, AIR - AIR IN
-
20413-138 DUCT, COOLING - AIR INDUCT, COOLING - AIR IN
-
30423-730 CLAMPCLAMP
-
40413-139 BOOT, COOLING - AIR INBOOT, COOLING - AIR IN
-
50413-135 BOOT, COOLING - AIR OUTBOOT, COOLING - AIR OUT
-
60423-019 CLAMPCLAMP
-
70413-302 DUCT, COOLING - AIR OUTDUCT, COOLING - AIR OUT
-
80623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90623-362 RIVET, PLASTIC-REINSTALLABLERIVET, PLASTIC-REINSTALLABLE
