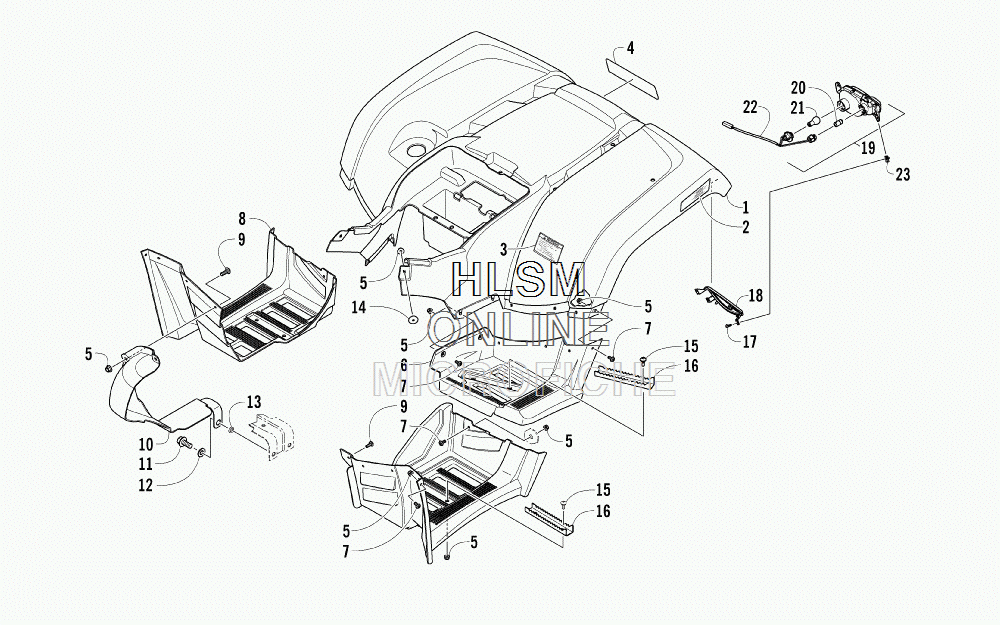

REAR BODY PANEL AND FOOTWELL ASSEMBLIES для Arctic Cat ATV 700 Diesel EFT GREEN [A2014TBT4DETG] - 2014 года выпуска
-
№АртикулНазвание
-
12506-954 FENDER, REAR - ASSEMBLY - GREENFENDER, REAR - ASSEMBLY - GREEN
-
21411-592 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
21411-593 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
32411-830 DECAL, WARNING - TIRE PRESSUREDECAL, WARNING - TIRE PRESSURE
-
41411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
58427-602 NUT, LOCKNUT, LOCK
-
62406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
62406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
70423-419 SCREW, MACHINESCREW, MACHINE
-
82506-193 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
82406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
98477-620 SCREW, MACHINESCREW, MACHINE
-
102406-531 PANEL, SPLASHPANEL, SPLASH
-
118409-020 SCREW, CAPSCREW, CAP
-
128050-282 WASHERWASHER
-
130405-261 SPACERSPACER
-
140423-101 SCREW, SHOULDERSCREW, SHOULDER
-
150423-355 SCREW, SHOULDERSCREW, SHOULDER
-
165506-497 FOOTPEGFOOTPEG
-
178476-516 SCREW, MACHINESCREW, MACHINE
-
180409-112 BEZEL, TAILLIGHT - RIGHTBEZEL, TAILLIGHT - RIGHT
-
180409-113 BEZEL, TAILLIGHT - LEFTBEZEL, TAILLIGHT - LEFT
-
193313-392 TAILLIGHT ASSEMBLY - RIGHT (INC. 20-22)TAILLIGHT ASSEMBLY - RIGHT (INC. 20-22)
-
193313-393 TAILLIGHT ASSEMBLY - LEFT (INC. 20-22)TAILLIGHT ASSEMBLY - LEFT (INC. 20-22)
-
203313-506 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
213303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
223313-509 ...HARNESS, TAILLIGHT - RIGHT...HARNESS, TAILLIGHT - RIGHT
-
223313-507 ...HARNESS, TAILLIGHT - LEFT...HARNESS, TAILLIGHT - LEFT
-
233304-061 CLIP, U-NUTCLIP, U-NUT
