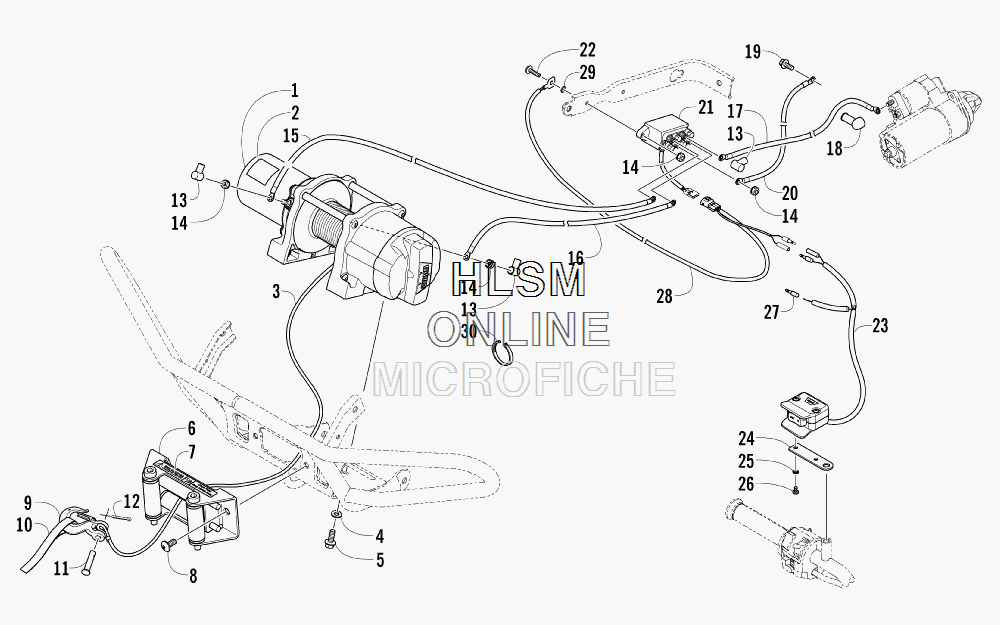

WINCH ASSEMBLY для Arctic Cat ATV 700 Diesel EFT GREEN [A2014TBT4DETG] - 2014 года выпуска
-
№АртикулНазвание
-
11441-657 WINCH (INC. 2-3)WINCH (INC. 2-3)
-
21411-826 ...DECAL, WARNING...DECAL, WARNING
-
30441-061 ...CABLE, WINCH...CABLE, WINCH
-
48051-246 WASHER, LOCKWASHER, LOCK
-
58408-820 SCREW, CAPSCREW, CAP
-
60441-403 ROLLER, WINCH (INC. 7)ROLLER, WINCH (INC. 7)
-
70411-474 ...DECAL, WARNING - PINCH POINT...DECAL, WARNING - PINCH POINT
-
88468-820 SCREW, MACHINESCREW, MACHINE
-
91441-833 HOOK, WINCHHOOK, WINCH
-
101441-781 STRAPSTRAP
-
111441-834 PINPIN
-
120623-175 PIN, COTTERPIN, COTTER
-
130645-019 BOOT, TERMINALBOOT, TERMINAL
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150445-068 CABLE, WINCH/SOLENOID - YELLOWCABLE, WINCH/SOLENOID - YELLOW
-
160445-069 CABLE, WINCH/SOLENOID - BLUECABLE, WINCH/SOLENOID - BLUE
-
170445-077 CABLE, SOLENOID/BATTERY - REDCABLE, SOLENOID/BATTERY - RED
-
180645-327 BOOT, TERMINALBOOT, TERMINAL
-
198408-812 SCREW, CAPSCREW, CAP
-
200445-076 CABLE, GROUND - BLACKCABLE, GROUND - BLACK
-
210409-066 SOLENOIDSOLENOID
-
228476-625 SCREW, MACHINESCREW, MACHINE
-
230505-552 SWITCH, WINCH - ASSEMBLY (INC. 24-29)SWITCH, WINCH - ASSEMBLY (INC. 24-29)
-
240505-551 ...BRACKET, WINCH SWITCH...BRACKET, WINCH SWITCH
-
258052-093 ...WASHER, INTERNAL TOOTH LOCK...WASHER, INTERNAL TOOTH LOCK
-
268009-243 ...SCREW, MACHINE...SCREW, MACHINE
-
271441-428 ...CONNECTOR, HARNESS...CONNECTOR, HARNESS
-
280486-276 ...HARNESS, ADAPTER - SOLENOID...HARNESS, ADAPTER - SOLENOID
-
298053-212 ...WASHER, EXTERNAL TOOTH LOCK...WASHER, EXTERNAL TOOTH LOCK
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
300123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
