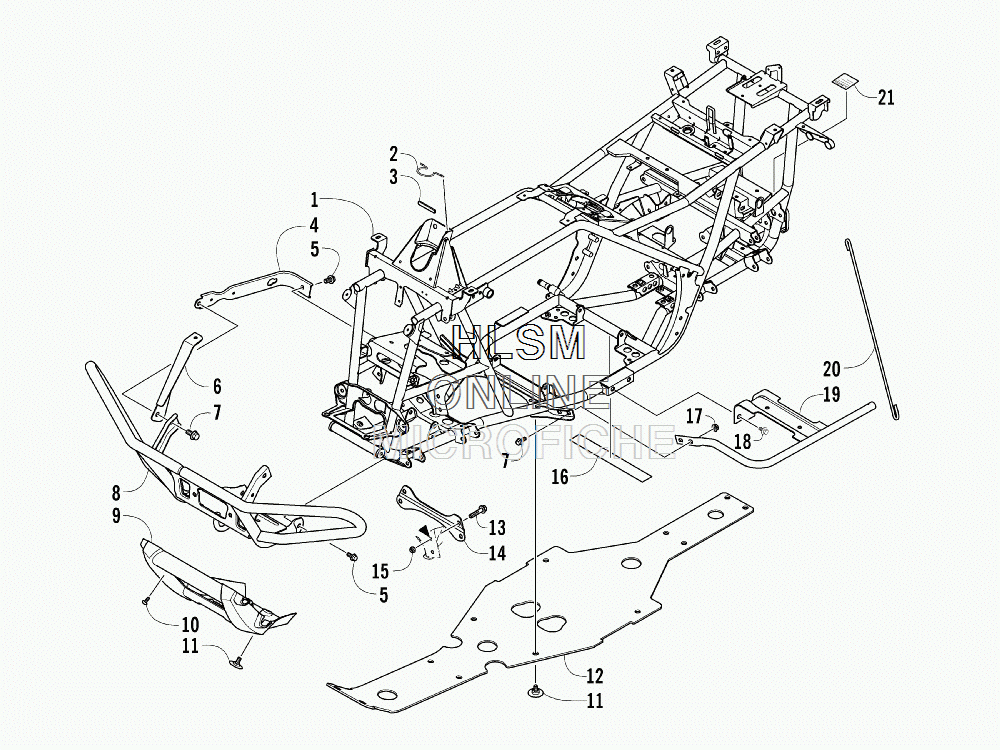

FRAME AND RELATED PARTS для Arctic Cat ATV 700 XT GREEN [A2014AGT1PUSX] - 2014 года выпуска
-
№АртикулНазвание
-
14506-853 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
30706-371 TRIM - 3 FTTRIM - 3 FT
-
41506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
58409-020 SCREW, CAPSCREW, CAP
-
61506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
61506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
78408-816 SCREW, CAPSCREW, CAP
-
81506-855 BUMPER, FRONTBUMPER, FRONT
-
91406-360 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
110423-101 SCREW, SHOULDERSCREW, SHOULDER
-
121406-030 PANEL, BELLYPANEL, BELLY
-
138409-025 SCREW, CAPSCREW, CAP
-
142516-852 BRACE, A-ARMBRACE, A-ARM
-
150423-744 NUT, LOCKNUT, LOCK
-
160406-289 PAD, FRAMEPAD, FRAME
-
178424-802 NUTNUT
-
188409-016 SCREW, CAPSCREW, CAP
-
191506-380 FOOTREST - RIGHTFOOTREST - RIGHT
-
191506-379 FOOTREST - LEFTFOOTREST - LEFT
-
202506-423 ROD, SUPPORTROD, SUPPORT
-
211411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
