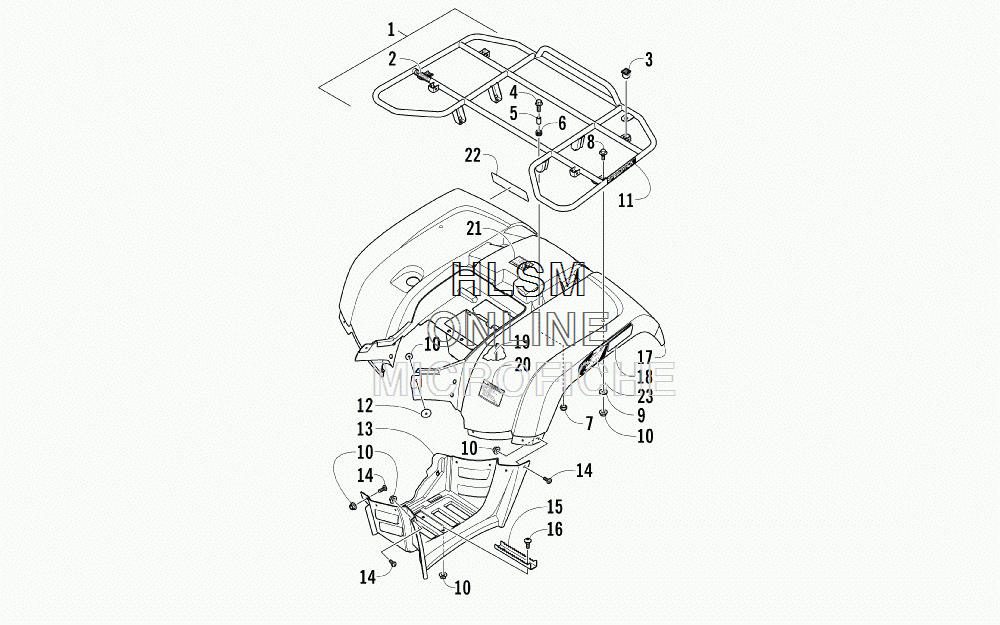

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat ATV 700 XT GREEN [A2014AGT1PUSX] - 2014 года выпуска
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
110411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
120423-101 SCREW, SHOULDERSCREW, SHOULDER
-
131406-356 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
132406-429 FOOTWELL - LEFTFOOTWELL - LEFT
-
140423-419 SCREW, MACHINESCREW, MACHINE
-
155506-497 FOOTPEGFOOTPEG
-
160423-355 SCREW, SHOULDERSCREW, SHOULDER
-
174506-974 PANEL, FENDER - ASSEMBLY - BLACK (INC. 18-21)PANEL, FENDER - ASSEMBLY - BLACK (INC. 18-21)
-
181411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
181411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
190470-658 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
202411-143 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
211411-809 ...DECAL, PASSENGER...DECAL, PASSENGER
-
221411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
233411-528 DECAL, "XT" - RIGHT (GREEN)DECAL, "XT" - RIGHT (GREEN)
-
233411-529 DECAL, "XT" - LEFT (GREEN)DECAL, "XT" - LEFT (GREEN)
