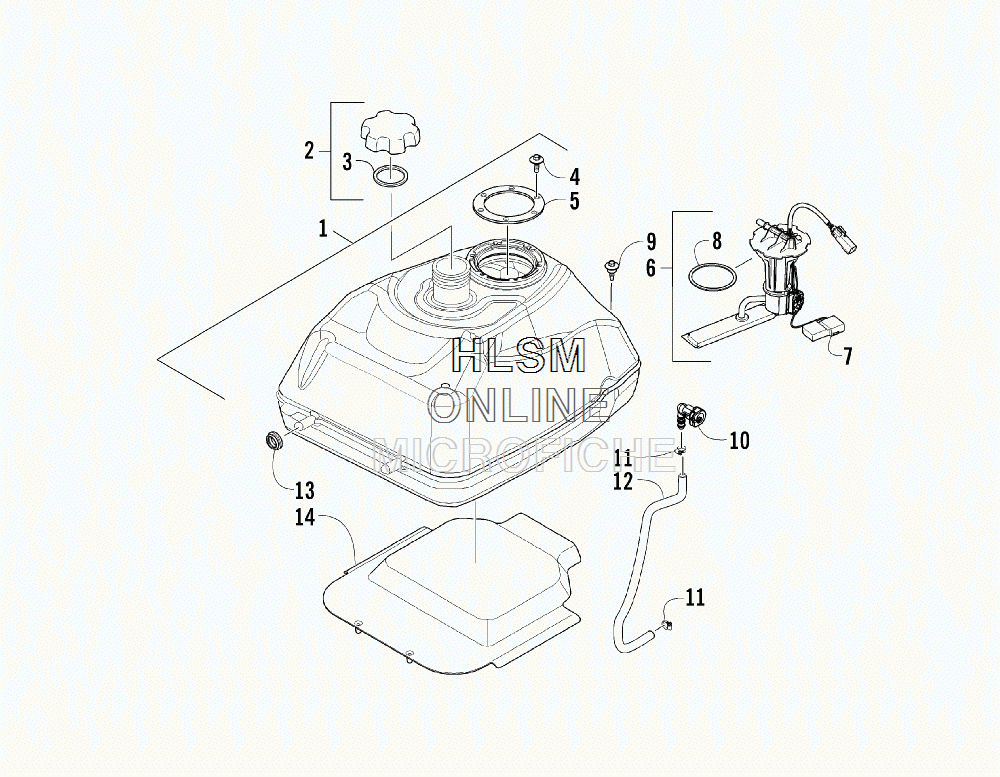

GAS TANK ASSEMBLY для Arctic Cat XC 450 [A2014KCK4COSE] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
13306-403 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
23306-297 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
33306-298 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
43306-300 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
53306-299 ...PLATE, RETAINING...PLATE, RETAINING
-
63306-296 PUMP, FUEL - ASSEMBLY (INC. 7-8)PUMP, FUEL - ASSEMBLY (INC. 7-8)
-
72670-235 ...FLOAT...FLOAT
-
83313-845 ...SEAL...SEAL
-
90423-732 SCREW, SHOULDERSCREW, SHOULDER
-
101670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
123306-295 HOSE, FUEL - ASSEMBLYHOSE, FUEL - ASSEMBLY
-
130423-460 GROMMET, FUEL TANKGROMMET, FUEL TANK
-
143313-833 SHIELD, HEATSHIELD, HEAT
