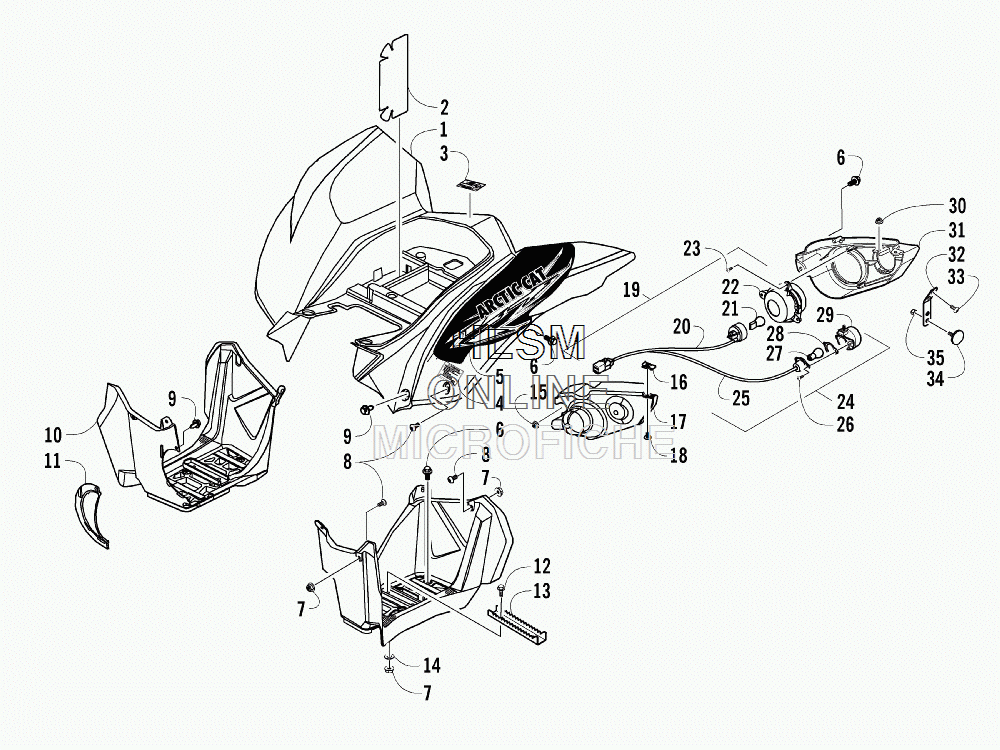

REAR BODY AND TAILLIGHT ASSEMBLY для Arctic Cat XC 450 [A2014KCK4COSE] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
13306-719 PANEL, FENDER - REAR - BLACK (INC. 2-4)PANEL, FENDER - REAR - BLACK (INC. 2-4)
-
23306-543 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
31411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
42411-586 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
53411-608 DECAL, FENDER - RIGHTDECAL, FENDER - RIGHT
-
53411-609 DECAL, FENDER - LEFTDECAL, FENDER - LEFT
-
63304-587 SCREW, CAPSCREW, CAP
-
73304-431 NUT, LOCKNUT, LOCK
-
83304-404 SCREW, MACHINESCREW, MACHINE
-
93305-448 CLIP, RETAININGCLIP, RETAINING
-
103306-480 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
103306-481 FOOTWELL - LEFTFOOTWELL - LEFT
-
113306-488 PANEL, CLUTCH HOUSINGPANEL, CLUTCH HOUSING
-
123304-586 SCREW, CAPSCREW, CAP
-
135506-497 FOOTPEGFOOTPEG
-
143305-852 WASHERWASHER
-
150423-678 GROMMETGROMMET
-
163304-061 CLIP, U-NUTCLIP, U-NUT
-
173306-482 HOUSING, TAILLIGHT - INNER RIGHTHOUSING, TAILLIGHT - INNER RIGHT
-
173306-483 HOUSING, TAILLIGHT - INNER LEFTHOUSING, TAILLIGHT - INNER LEFT
-
183304-029 SCREW, CAPSCREW, CAP
-
193306-510 TAILLIGHT ASSEMBLY - RIGHT (INC. 20-22)TAILLIGHT ASSEMBLY - RIGHT (INC. 20-22)
-
193306-511 TAILLIGHT ASSEMBLY - LEFT (INC. 20-22)TAILLIGHT ASSEMBLY - LEFT (INC. 20-22)
-
203306-514 ...HARNESS, TAILLIGHT...HARNESS, TAILLIGHT
-
213303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
223306-512 ...LENS ASSEMBLY - RIGHT...LENS ASSEMBLY - RIGHT
-
223306-513 ...LENS ASSEMBLY - LEFT...LENS ASSEMBLY - LEFT
-
233304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
243306-515 RUNNING LIGHT - ASSEMBLY (INC. 25-29)RUNNING LIGHT - ASSEMBLY (INC. 25-29)
-
253306-516 ...HARNESS, RUNNING LIGHT...HARNESS, RUNNING LIGHT
-
273313-508 ...BULB, RUNNING LIGHT...BULB, RUNNING LIGHT
-
293306-506 ...LENS ASSEMBLY...LENS ASSEMBLY
-
303304-774 NUT, LOCKNUT, LOCK
-
313306-484 HOUSING, TAILLIGHT - OUTER RIGHTHOUSING, TAILLIGHT - OUTER RIGHT
-
313306-485 HOUSING, TAILLIGHT - OUTER LEFTHOUSING, TAILLIGHT - OUTER LEFT
-
323306-479 BRACKET, MOUNTING - REFLECTORBRACKET, MOUNTING - REFLECTOR
-
333305-703 SCREW, MACHINESCREW, MACHINE
-
343305-273 REFLECTOR - REDREFLECTOR - RED
-
353304-654 NUT, LOCKNUT, LOCK
