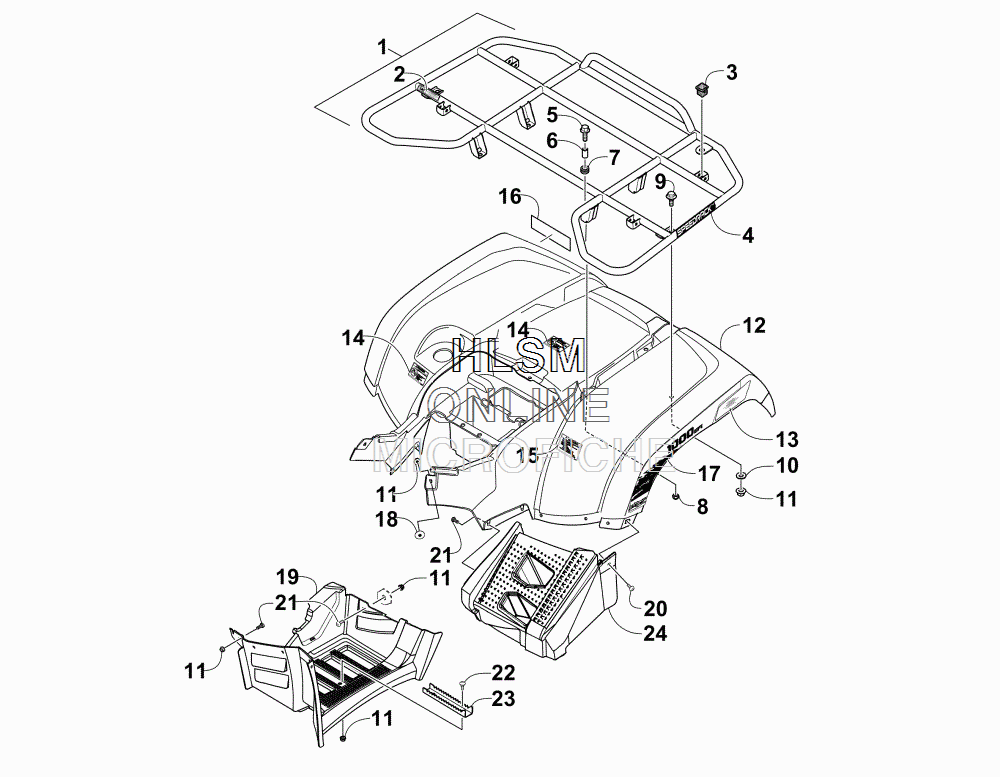

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 1000 MUD PRO LTD BLACK [A2015MLW1POSJ] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
12516-317 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
40411-965 DECAL, SPEEDRACKDECAL, SPEEDRACK
-
58410-835 SCREW, CAPSCREW, CAP
-
60423-669 SPACERSPACER
-
70423-465 GROMMETGROMMET
-
88432-802 NUT, LOCKNUT, LOCK
-
90423-654 SCREW, SHOULDERSCREW, SHOULDER
-
108050-222 WASHERWASHER
-
118427-602 NUT, LOCKNUT, LOCK
-
127506-129 PANEL, FENDER - ASSEMBLY - BLACK (INC. 13-15)PANEL, FENDER - ASSEMBLY - BLACK (INC. 13-15)
-
131411-592 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
131411-593 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
141411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
154411-676 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
161411-725 DECAL - "ARCTIC CAT"DECAL - "ARCTIC CAT"
-
174411-890 DECAL, 1000 - RIGHTDECAL, 1000 - RIGHT
-
174411-891 DECAL, 1000 - LEFTDECAL, 1000 - LEFT
-
180423-101 SCREW, SHOULDERSCREW, SHOULDER
-
192506-856 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
192506-857 FOOTWELL - LEFTFOOTWELL - LEFT
-
208477-620 SCREW, MACHINESCREW, MACHINE
-
210423-419 SCREW, MACHINESCREW, MACHINE
-
220423-355 SCREW, SHOULDERSCREW, SHOULDER
-
235506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
242416-326 CLOSURE, FOOTWELL - RIGHTCLOSURE, FOOTWELL - RIGHT
-
242416-327 CLOSURE, FOOTWELL - LEFTCLOSURE, FOOTWELL - LEFT
