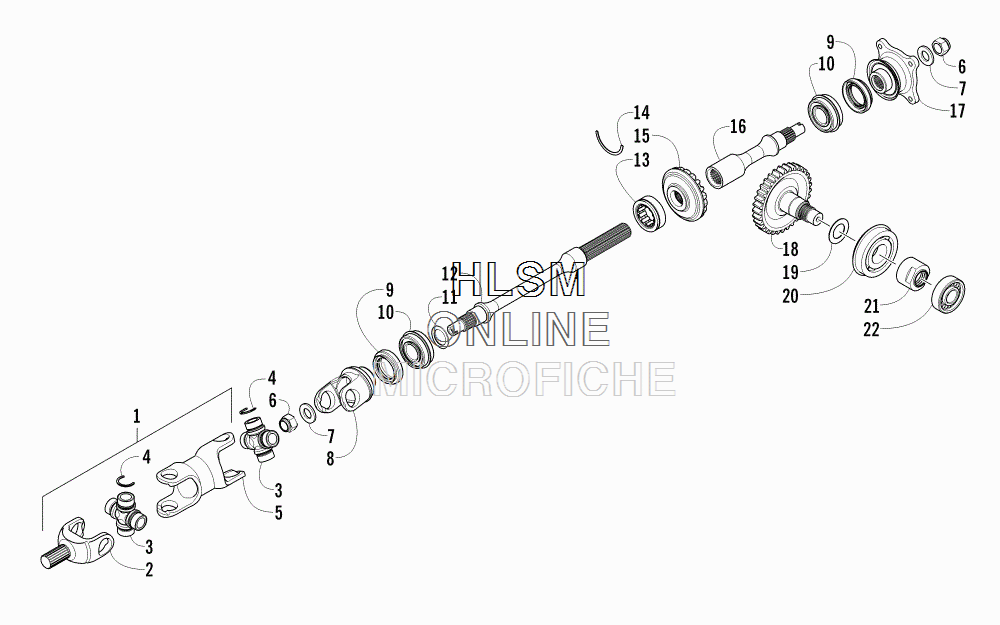

SECONDARY DRIVE ASSEMBLY для Arctic Cat 1000 MUD PRO LTD BLACK [A2015MLW1POSJ] (INTERNATIONAL) - 2015 года выпуска

№

Артикул

Название
1

1502-342 DRIVESHAFT, FRONT - ASSEMBLY (INC. 2, ONE NO. 3, FOUR NO. 4, AND 5)

DRIVESHAFT, FRONT - ASSEMBLY (INC. 2, ONE NO. 3, FOUR NO. 4, AND 5)

25 370 ₽
2

1402-701 ...YOKE, SLIP

...YOKE, SLIP

10 600 ₽
3

0402-944 ...JOINT, UNIVERSAL (INC. 4)

...JOINT, UNIVERSAL (INC. 4)

4 570 ₽
4

0423-395 ......RING, RETAINING

......RING, RETAINING

420 ₽
5

1502-341 ...DRIVESHAFT, FRONT

...DRIVESHAFT, FRONT

25 370 ₽
6

0827-013 NUT

NUT

460 ₽
7

0828-020 WASHER

WASHER

500 ₽
8

1502-325 YOKE, PROPELLER SHAFT JOINT

YOKE, PROPELLER SHAFT JOINT

14 140 ₽
9

0830-043 SEAL, OIL

SEAL, OIL

1 040 ₽
10

0832-017 BEARING

BEARING

3 530 ₽
11

0828-021 SHIM, 25 X 34 X 0.25 MM

SHIM, 25 X 34 X 0.25 MM

380 ₽
11

0828-022 SHIM, 25 X 34 X 0.30 MM

SHIM, 25 X 34 X 0.30 MM

1 240 ₽
11

0828-023 SHIM, 25 X 34 X 0.70 MM

SHIM, 25 X 34 X 0.70 MM

2 700 ₽
11

0828-024 SHIM, 25 X 34 X 0.90 MM

SHIM, 25 X 34 X 0.90 MM

2 700 ₽
11

0828-025 SHIM, 25 X 34 X 0.95 MM

SHIM, 25 X 34 X 0.95 MM

2 700 ₽
11

0828-026 SHIM, 25 X 34 X 1.00 MM

SHIM, 25 X 34 X 1.00 MM

2 700 ₽
11

0828-027 SHIM, 25 X 34 X 1.05 MM

SHIM, 25 X 34 X 1.05 MM

2 700 ₽
11

0828-028 SHIM, 25 X 34 X 1.10 MM

SHIM, 25 X 34 X 1.10 MM

2 490 ₽
11

0828-029 SHIM, 25 X 34 X 1.15 MM

SHIM, 25 X 34 X 1.15 MM

2 700 ₽
12

0819-115 SHAFT, SECONDARY DRIVEN - FRONT

SHAFT, SECONDARY DRIVEN - FRONT

26 410 ₽
13

0832-016 BEARING, DRIVEN GEAR

BEARING, DRIVEN GEAR

7 480 ₽
14

0819-011 RING, DRIVEN BEARING

RING, DRIVEN BEARING

2 700 ₽
15

0822-106 GEAR, SECONDARY DRIVEN

GEAR, SECONDARY DRIVEN

19 340 ₽
16

0819-053 SHAFT, SECONDARY DRIVEN - REAR

SHAFT, SECONDARY DRIVEN - REAR

12 270 ₽
17

0819-005 FLANGE, OUTPUT JOINT - REAR

FLANGE, OUTPUT JOINT - REAR

10 390 ₽
18

0822-132 GEAR, SECONDARY DRIVE

GEAR, SECONDARY DRIVE

39 510 ₽
19

0828-119 SHIM, 30 X 48 X 0.25 MM

SHIM, 30 X 48 X 0.25 MM

900 ₽
19

0828-120 SHIM, 30 X 48 X 0.30 MM

SHIM, 30 X 48 X 0.30 MM

900 ₽
19

0828-121 SHIM, 30 X 48 X 0.35 MM

SHIM, 30 X 48 X 0.35 MM

2 490 ₽
19

0828-122 SHIM, 30 X 48 X 0.90 MM

SHIM, 30 X 48 X 0.90 MM

2 490 ₽
19

0828-123 SHIM, 30 X 48 X 0.95 MM

SHIM, 30 X 48 X 0.95 MM

2 490 ₽
19

0828-124 SHIM, 30 X 48 X 1.00 MM

SHIM, 30 X 48 X 1.00 MM

2 490 ₽
19

0828-125 SHIM, 30 X 48 X 1.05 MM

SHIM, 30 X 48 X 1.05 MM

2 490 ₽
19

0828-126 SHIM, 30 X 48 X 1.10 MM

SHIM, 30 X 48 X 1.10 MM

1 660 ₽
19

0828-127 SHIM, 30 X 48 X 1.15 MM

SHIM, 30 X 48 X 1.15 MM

2 910 ₽
20

0832-083 BEARING W/ SNAP RING

BEARING W/ SNAP RING

8 110 ₽
21

0827-060 NUT

NUT

2 700 ₽
22

0832-050 BEARING

BEARING

3 110 ₽
