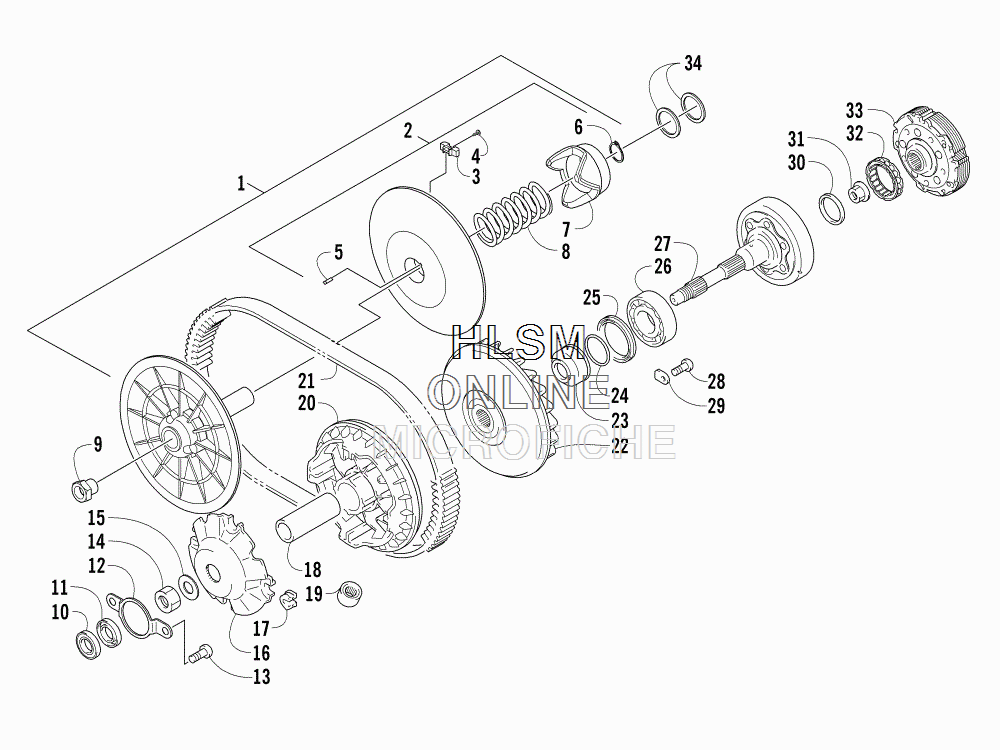

TRANSMISSION ASSEMBLY для Arctic Cat 1000 MUD PRO LTD BLACK [A2015MLW1PUSJ] - 2015 года выпуска
-
№АртикулНазвание
-
10823-435 CLUTCH, DRIVEN - ASSEMBLY - 35 DEGREES (INC. 2-9)CLUTCH, DRIVEN - ASSEMBLY - 35 DEGREES (INC. 2-9)
-
20823-456 PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)
-
30823-454 ...SHOE, CAM...SHOE, CAM
-
40823-177 ...SCREW, MACHINE...SCREW, MACHINE
-
50823-383 ...KEY...KEY
-
60823-455 ...RING, SNAP - EXTERNAL...RING, SNAP - EXTERNAL
-
70823-382 CAMCAM
-
80823-303 SPRING BLACKSPRING BLACK
-
90823-178 NUT, DRIVEN PULLEYNUT, DRIVEN PULLEY
-
100832-010 BEARINGBEARING
-
110830-176 SEAL, CAN - 47 X 16 X 5.5SEAL, CAN - 47 X 16 X 5.5
-
120823-020 RETAINER, BEARINGRETAINER, BEARING
-
130826-031 SCREW, MACHINESCREW, MACHINE
-
140827-010 NUTNUT
-
150828-106 WASHERWASHER
-
160823-276 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
170823-277 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
180823-358 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
190823-298 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
200823-273 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
210823-231 BELT, DRIVEBELT, DRIVE
-
220823-272 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
230823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
240470-531 O-RINGO-RING
-
250830-244 SEALSEAL
-
260832-009 BEARINGBEARING
-
270823-365 HOUSING, CLUTCHHOUSING, CLUTCH
-
280826-029 SCREW, MACHINESCREW, MACHINE
-
290822-010 RETAINER, BEARINGRETAINER, BEARING
-
300830-189 SEALSEAL
-
310827-011 NUTNUT
-
320823-018 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
330823-484 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
-
340828-076 SHIM, 30 X 25 X 0.90 MMSHIM, 30 X 25 X 0.90 MM
