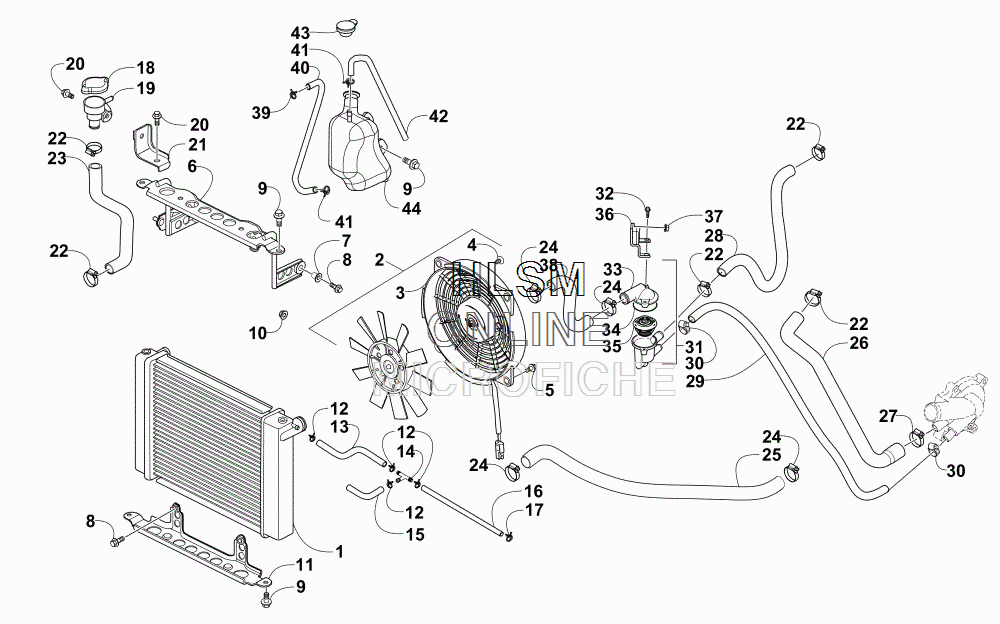

COOLING ASSEMBLY для Arctic Cat 450 RED [A2015IRK4CUSR] - 2015 года выпуска
-
№АртикулНазвание
-
13306-334 RADIATORRADIATOR
-
23306-333 FAN, COOLING - ASSEMBLY (INC. 3-4)FAN, COOLING - ASSEMBLY (INC. 3-4)
-
33306-335 ...SHROUD, FAN...SHROUD, FAN
-
43306-405 ...SCREW, SHOULDER...SCREW, SHOULDER
-
53304-587 SCREW, CAPSCREW, CAP
-
63306-347 BRACKET, MOUNTING - UPPERBRACKET, MOUNTING - UPPER
-
73303-226 INSERTINSERT
-
83304-551 BOLT, FLANGE - 6 X 22BOLT, FLANGE - 6 X 22
-
93304-652 SCREW, CAPSCREW, CAP
-
100423-028 BUSHINGBUSHING
-
113306-348 BRACKET, MOUNTING - LOWERBRACKET, MOUNTING - LOWER
-
123304-161 CLAMP, HOSECLAMP, HOSE
-
133306-345 HOSE, COOLANT - RADIATOR/T-FITTINGHOSE, COOLANT - RADIATOR/T-FITTING
-
143306-346 T-FITTINGT-FITTING
-
153306-374 HOSE, COOLANT - T-FITTING/FILLER NECKHOSE, COOLANT - T-FITTING/FILLER NECK
-
163306-375 HOSE, COOLANT - T-FITTING/ENGINEHOSE, COOLANT - T-FITTING/ENGINE
-
173306-349 CLAMP, HOSECLAMP, HOSE
-
183303-748 CAP, FILLER NECKCAP, FILLER NECK
-
193303-738 NECK, FILLERNECK, FILLER
-
203304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
213306-336 BRACKET, MOUNTING - FILLER NECKBRACKET, MOUNTING - FILLER NECK
-
221423-008 CLAMP, HOSECLAMP, HOSE
-
233306-344 HOSE, COOLANT - FILLER NECK/RADIATORHOSE, COOLANT - FILLER NECK/RADIATOR
-
243306-256 CLAMP, HOSECLAMP, HOSE
-
253306-343 HOSE, COOLANT - RADIATOR/WATER PUMPHOSE, COOLANT - RADIATOR/WATER PUMP
-
260410-216 HOSE, COOLANT - WATER PUMP/CYLINDERHOSE, COOLANT - WATER PUMP/CYLINDER
-
273305-941 CLAMP, HOSECLAMP, HOSE
-
283306-255 HOSE, COOLANT - THERMOSTAT/CYLINDERHOSE, COOLANT - THERMOSTAT/CYLINDER
-
293306-258 HOSE, COOLANT - THERMOSTAT/WATER PUMPHOSE, COOLANT - THERMOSTAT/WATER PUMP
-
300423-098 CLAMP, HOSECLAMP, HOSE
-
310808-192 HOUSING, THERMOSTAT - ASSEMBLY (INC. 31-34)HOUSING, THERMOSTAT - ASSEMBLY (INC. 31-34)
-
323303-384 ...BOLT, FLANGE...BOLT, FLANGE
-
330808-202 ...COVER, HOUSING - THERMOSTAT...COVER, HOUSING - THERMOSTAT
-
340830-205 ...O-RING...O-RING
-
350813-050 THERMOSTATTHERMOSTAT
-
363306-260 BRACKET, MOUNTING - THERMOSTAT HOUSINGBRACKET, MOUNTING - THERMOSTAT HOUSING
-
373304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
383306-257 HOSE, COOLANT - RADIATOR/THERMOSTATHOSE, COOLANT - RADIATOR/THERMOSTAT
-
393303-349 CLAMP, HOSECLAMP, HOSE
-
403306-340 HOSE, COOLANT - RESERVOIR/FILLER NECKHOSE, COOLANT - RESERVOIR/FILLER NECK
-
413304-163 CLAMP, HOSECLAMP, HOSE
-
423306-339 HOSE, VENTHOSE, VENT
-
433303-749 CAP, RESERVOIRCAP, RESERVOIR
-
443313-661 TANK, RESERVOIRTANK, RESERVOIR
