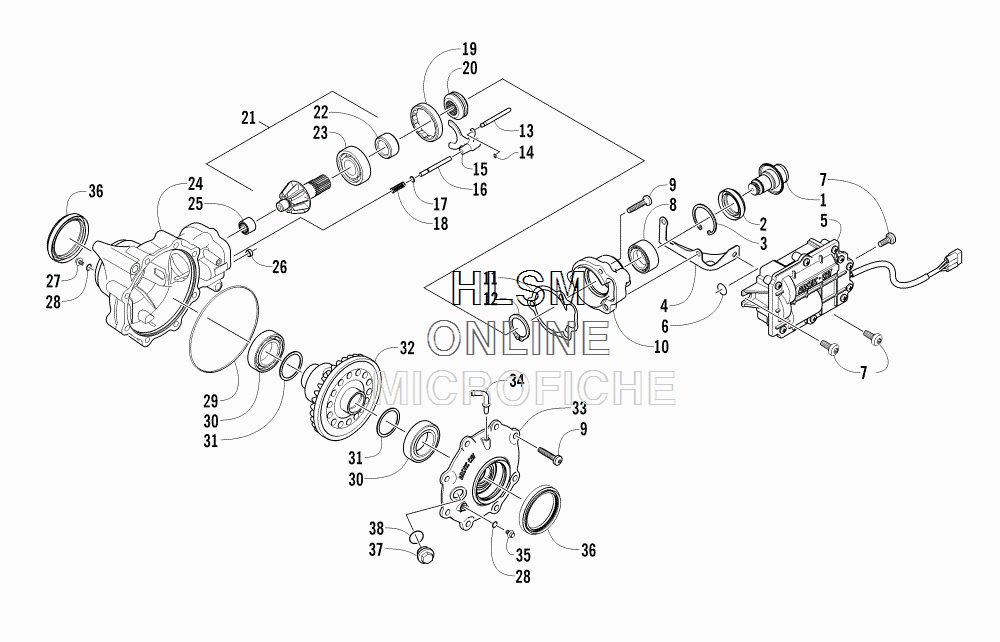

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 450 RED [A2015IRK4CUSR] - 2015 года выпуска
-
№АртикулНазвание
-
-3306-265 COMPLETE FRONT DRIVE GEARCASE ASSEMBLYCOMPLETE FRONT DRIVE GEARCASE ASSEMBLY
-
13306-047 SHAFT, INPUTSHAFT, INPUT
-
23323-239 SEALSEAL
-
33306-046 RING, RETAININGRING, RETAINING
-
43323-241 BRACKET, ACTUATORBRACKET, ACTUATOR
-
53306-264 ACTUATORACTUATOR
-
63313-792 O-RINGO-RING
-
73313-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
83323-240 BEARINGBEARING
-
93303-615 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
103323-238 HOUSING, PINIONHOUSING, PINION
-
113323-234 GASKET, FLANGEGASKET, FLANGE
-
123306-045 RING, RETAININGRING, RETAINING
-
133323-235 SHAFT, SELECTORSHAFT, SELECTOR
-
143313-791 RING, RETAININGRING, RETAINING
-
153323-236 FORK, SELECTORFORK, SELECTOR
-
163323-233 SHAFT, SHUTTLESHAFT, SHUTTLE
-
173313-790 O-RINGO-RING
-
183313-789 SPRING, RETURNSPRING, RETURN
-
193313-788 COLLAR, LOCKCOLLAR, LOCK
-
203323-232 COUPLER, DRIVECOUPLER, DRIVE
-
213306-039 GEAR, PINION - ASSEMBLY - 11T (INC. 22-23)GEAR, PINION - ASSEMBLY - 11T (INC. 22-23)
-
220402-336 ...COLLAR, RETAINING...COLLAR, RETAINING
-
233306-040 ...BEARING...BEARING
-
243313-793 HOUSING, GEARCASEHOUSING, GEARCASE
-
253306-038 BEARINGBEARING
-
263306-048 PIN, DOWELPIN, DOWEL
-
273306-027 PLUG, MAGNETIC (INC. ONE NO. 28)PLUG, MAGNETIC (INC. ONE NO. 28)
-
280423-153 ...O-RING...O-RING
-
293306-030 O-RINGO-RING
-
303306-801 BEARINGBEARING
-
313306-132 SHIM, 41 X 49 X 1.0 MMSHIM, 41 X 49 X 1.0 MM
-
313306-133 SHIM, 41 X 49 X 1.1 MMSHIM, 41 X 49 X 1.1 MM
-
313306-134 SHIM, 41 X 49 X 1.2 MMSHIM, 41 X 49 X 1.2 MM
-
313306-135 SHIM, 41 X 49 X 1.3 MMSHIM, 41 X 49 X 1.3 MM
-
313306-136 SHIM, 41 X 49 X 1.4 MMSHIM, 41 X 49 X 1.4 MM
-
313306-137 SHIM, 41 X 49 X 1.5 MMSHIM, 41 X 49 X 1.5 MM
-
313306-138 SHIM, 41 X 49 X 1.6 MMSHIM, 41 X 49 X 1.6 MM
-
313306-139 SHIM, 41 X 49 X 1.7 MMSHIM, 41 X 49 X 1.7 MM
-
323313-794 GEAR, RING - 34TGEAR, RING - 34T
-
333313-795 COVER, GEARCASECOVER, GEARCASE
-
343306-034 FITTING, ELBOWFITTING, ELBOW
-
353306-036 PLUG, OIL LEVEL (INC. ONE NO. 28)PLUG, OIL LEVEL (INC. ONE NO. 28)
-
362402-240 SEALSEAL
-
373306-035 PLUG, FILL (INC. 38)PLUG, FILL (INC. 38)
-
380423-154 ...O-RING...O-RING
