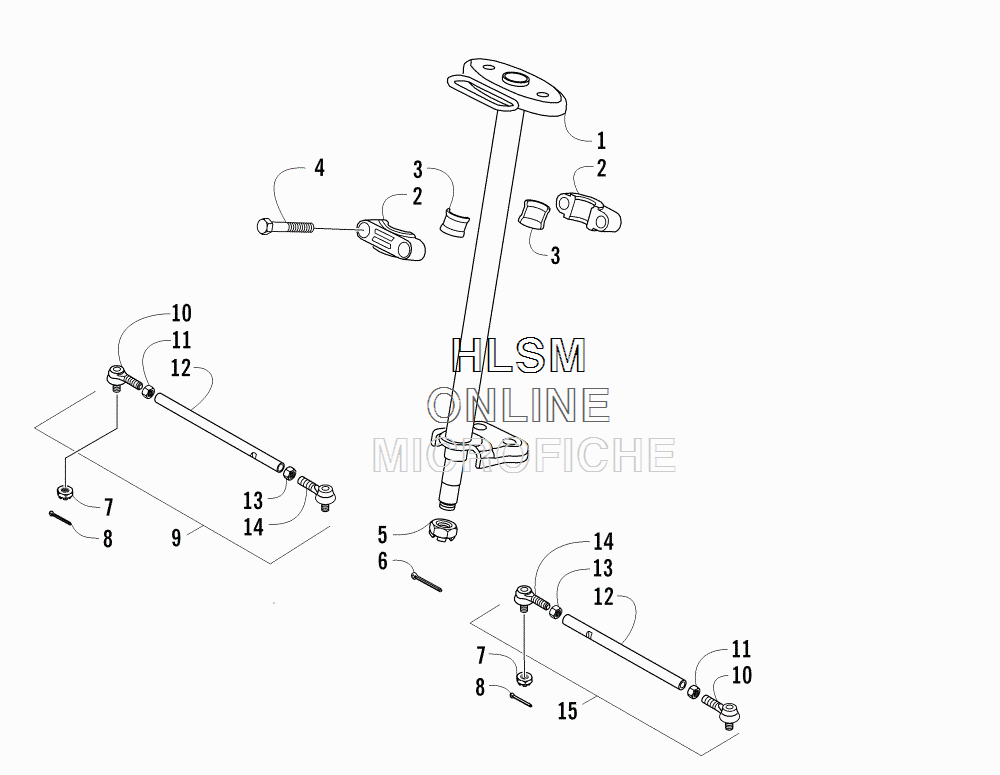

STEERING POST ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN [A2015KSB2BUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
13303-573 POST, STEERINGPOST, STEERING
-
23303-213 HOLDER, STEERING POSTHOLDER, STEERING POST
-
33305-497 SLEEVE, STEMSLEEVE, STEM
-
43304-559 SCREW, CAPSCREW, CAP
-
53304-032 NUTNUT
-
63303-470 PIN, COTTERPIN, COTTER
-
73303-266 NUTNUT
-
83303-621 PIN, COTTERPIN, COTTER
-
93305-485 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
-
103305-486 ...BALL JOINT, TIE ROD - RIGHT...BALL JOINT, TIE ROD - RIGHT
-
113303-326 ...NUT - RIGHT-HAND THREAD...NUT - RIGHT-HAND THREAD
-
123305-282 ...TIE ROD...TIE ROD
-
133303-327 ...NUT, HEX - RIGHT-HAND THREAD...NUT, HEX - RIGHT-HAND THREAD
-
143305-487 ...BALL JOINT, TIE ROD - LEFT...BALL JOINT, TIE ROD - LEFT
-
153305-499 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
