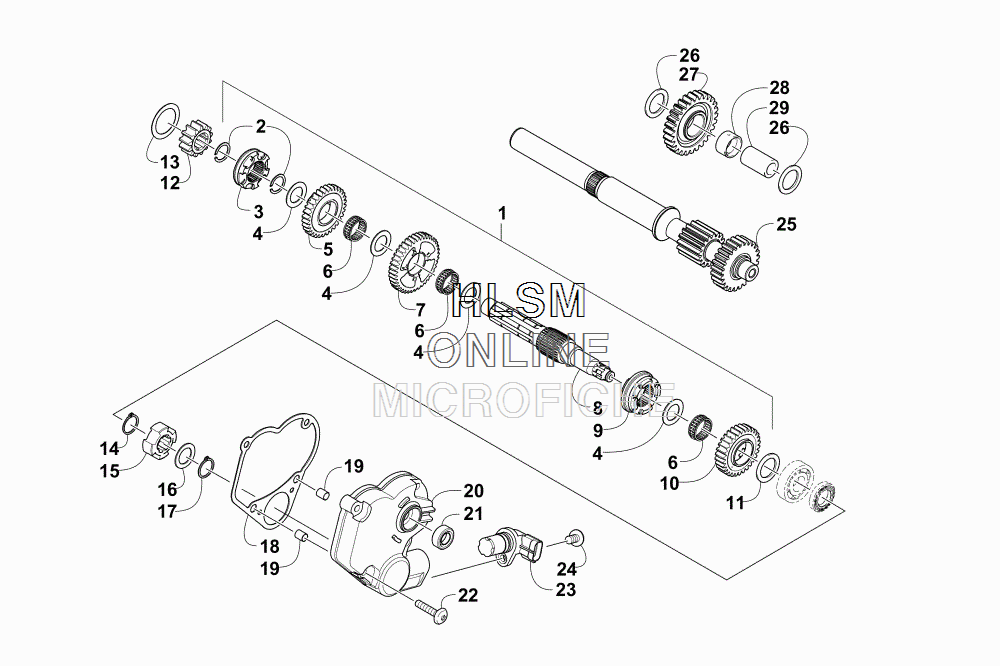

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat WILDCAT X LTD WHITE [U2015WTW1POSC] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
10822-144 COUNTERSHAFT ASSEMBLY (INC. 2-10)COUNTERSHAFT ASSEMBLY (INC. 2-10)
-
20831-085 ...RING, RETAINING...RING, RETAINING
-
30822-120 ...GEAR SELECT, REVERSE...GEAR SELECT, REVERSE
-
40822-121 ...SHIM...SHIM
-
50822-119 ...GEAR, REVERSE DRIVEN...GEAR, REVERSE DRIVEN
-
60832-082 ...BEARING...BEARING
-
70822-114 ...GEAR, DRIVEN - LOW...GEAR, DRIVEN - LOW
-
80822-113 ...COUNTERSHAFT...COUNTERSHAFT
-
90822-145 ...GEAR SELECT, SLIDING...GEAR SELECT, SLIDING
-
100822-148 ...GEAR, DRIVEN - HIGH...GEAR, DRIVEN - HIGH
-
110828-011 WASHERWASHER
-
120822-149 GEAR, DRIVEGEAR, DRIVE
-
130828-019 WASHER, THRUSTWASHER, THRUST
-
140831-040 RING, RETAININGRING, RETAINING
-
150822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
160828-069 WASHER, THRUSTWASHER, THRUST
-
170831-039 RING, RETAININGRING, RETAINING
-
180830-194 GASKETGASKET
-
190829-062 PIN, DOWELPIN, DOWEL
-
200806-105 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
210830-044 SEAL, SUB-GEAR SHIFT SHAFTSEAL, SUB-GEAR SHIFT SHAFT
-
228468-630 SCREW, MACHINESCREW, MACHINE
-
230430-121 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
248468-620 SCREW, MACHINESCREW, MACHINE
-
250822-151 SHAFT, INPUTSHAFT, INPUT
-
260828-016 WASHER, THRUSTWASHER, THRUST
-
270822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
280822-012 BUSHINGBUSHING
-
290822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
