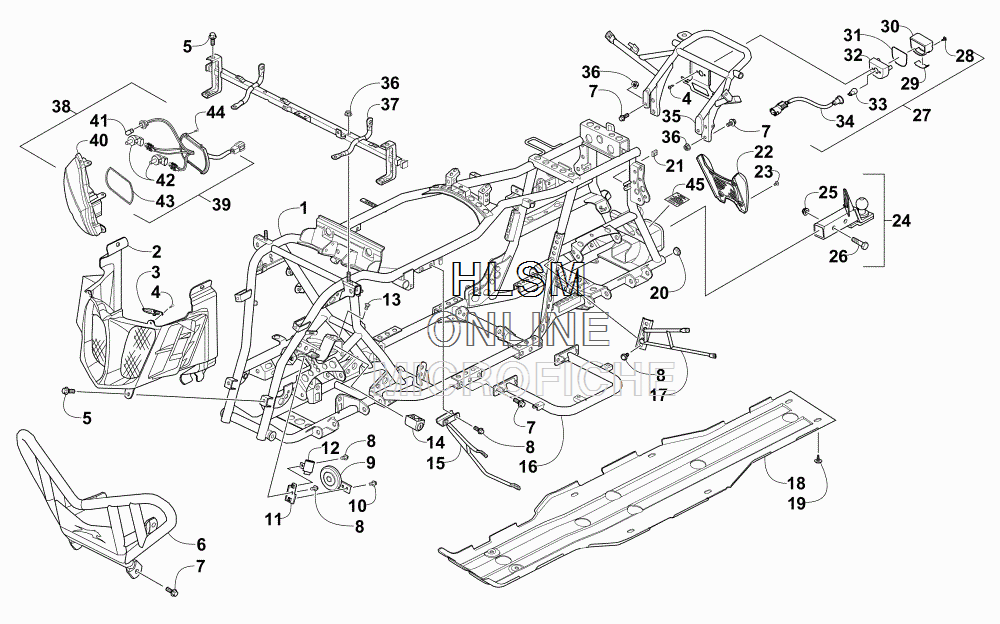

BUMPER- FRAME- AND HEADLIGHT ASSEMBLIES для Arctic Cat XC 450 EFT ORANGE [A2015KCK4CETY] - 2015 года выпуска

№

Артикул

Название
1

3306-632 FRAME, MAIN

FRAME, MAIN

360 ₽
2

3306-453 FASCIA, LOWER FRONT

FASCIA, LOWER FRONT

4 990 ₽
3

3306-541 BRACKET, SUPPORT - FRONT FASCIA

BRACKET, SUPPORT - FRONT FASCIA

730 ₽
4

3304-651 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

170 ₽
5

3304-587 SCREW, CAP

SCREW, CAP

190 ₽
6

3306-634 BUMPER, FRONT

BUMPER, FRONT

21 210 ₽
7

3304-543 SCREW, CAP

SCREW, CAP

230 ₽
8

3304-544 SCREW, CAP

SCREW, CAP

270 ₽
9

3313-576 HORN, ELECTRIC - 12V

HORN, ELECTRIC - 12V

6 440 ₽
10

3304-553 SCREW, CAP

SCREW, CAP

130 ₽
11

3313-577 BRACKET, MOUNTING - ELECTRICAL

BRACKET, MOUNTING - ELECTRICAL

730 ₽
12

3306-372 RELAY, TURN SIGNAL

RELAY, TURN SIGNAL

0 ₽
13

3305-395 SCREW, MACHINE

SCREW, MACHINE

130 ₽
14

3305-392 LOCK, STEERING

LOCK, STEERING

3 950 ₽
15

3306-524 BRACKET, FENDER SUPPORT - FRONT RIGHT

BRACKET, FENDER SUPPORT - FRONT RIGHT

3 110 ₽
15

3306-525 BRACKET, FENDER SUPPORT - FRONT LEFT

BRACKET, FENDER SUPPORT - FRONT LEFT

3 110 ₽
16

3306-522 FOOTREST - RIGHT

FOOTREST - RIGHT

12 270 ₽
16

3306-523 FOOTREST - LEFT

FOOTREST - LEFT

12 270 ₽
17

3306-526 BRACKET, FENDER SUPPORT - REAR RIGHT

BRACKET, FENDER SUPPORT - REAR RIGHT

3 950 ₽
17

3306-527 BRACKET, FENDER SUPPORT - REAR LEFT

BRACKET, FENDER SUPPORT - REAR LEFT

3 950 ₽
18

3313-755 PANEL, BELLY

PANEL, BELLY

11 020 ₽
19

0423-545 SCREW, SHOULDER

SCREW, SHOULDER

170 ₽
20

3306-530 PLUG

PLUG

250 ₽
21

3306-329 CUSHION

CUSHION

420 ₽
22

3306-489 FASCIA, REAR

FASCIA, REAR

1 870 ₽
23

3304-404 SCREW, CAP

SCREW, CAP

270 ₽
24

0541-857 MOUNT, BALL HITCH (INC. 25-26)

MOUNT, BALL HITCH (INC. 25-26)

15 390 ₽
25

0423-690 ...NUT, LOCK

...NUT, LOCK

230 ₽
26

0423-693 ...SCREW, CAP

...SCREW, CAP

420 ₽
27

3304-772 LIGHT, LICENSE PLATE ASSEMBLY (INC. 28-34)

LIGHT, LICENSE PLATE ASSEMBLY (INC. 28-34)

3 530 ₽
28

3305-399 ...SCREW, SELF-TAPPING

...SCREW, SELF-TAPPING

130 ₽
29

3305-368 ...LENS

...LENS

270 ₽
30

3305-365 ...COVER

...COVER

340 ₽
31

3305-366 ...SEAL

...SEAL

360 ₽
32

3305-367 ...BASE

...BASE

270 ₽
33

3303-847 ...BULB

...BULB

860 ₽
34

3305-369 ...HARNESS

...HARNESS

1 450 ₽
35

3306-641 BRACKET, FENDER SUPPORT - REAR

BRACKET, FENDER SUPPORT - REAR

0 ₽
36

3304-668 NUT, LOCK

NUT, LOCK

130 ₽
37

3306-597 TUBE, SUPPORT

TUBE, SUPPORT

12 680 ₽
38

3306-598 HEADLIGHT ASSEMBLY - RIGHT (INC. 39-40, ONE NO. 41, TWO NO. 42, ONE NO. 43, AND FOUR NO. 44)

HEADLIGHT ASSEMBLY - RIGHT (INC. 39-40, ONE NO. 41, TWO NO. 42, ONE NO. 43, AND FOUR NO. 44)

12 270 ₽
39

3306-612 ...HARNESS, HEADLIGHT - RIGHT ASSEMBLY

...HARNESS, HEADLIGHT - RIGHT ASSEMBLY

0 ₽
40

3306-444 ...LENS ASSEMBLY - RIGHT

...LENS ASSEMBLY - RIGHT

53 240 ₽
38

3306-599 HEADLIGHT ASSEMBLY - LEFT (INC. 39-40, ONE NO. 41, TWO NO. 42, ONE NO. 43, AND FOUR NO. 44)

HEADLIGHT ASSEMBLY - LEFT (INC. 39-40, ONE NO. 41, TWO NO. 42, ONE NO. 43, AND FOUR NO. 44)

0 ₽
39

3306-613 ...HARNESS, HEADLIGHT - LEFT ASSEMBLY

...HARNESS, HEADLIGHT - LEFT ASSEMBLY

0 ₽
40

3306-445 ...LENS ASSEMBLY - LEFT

...LENS ASSEMBLY - LEFT

53 240 ₽
41

3313-506 ...BULB, TURN SIGNAL

...BULB, TURN SIGNAL

1 450 ₽
42

3306-447 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

6 230 ₽
45

3307-111 DECAL, WARNING - TOWING

DECAL, WARNING - TOWING

0 ₽
