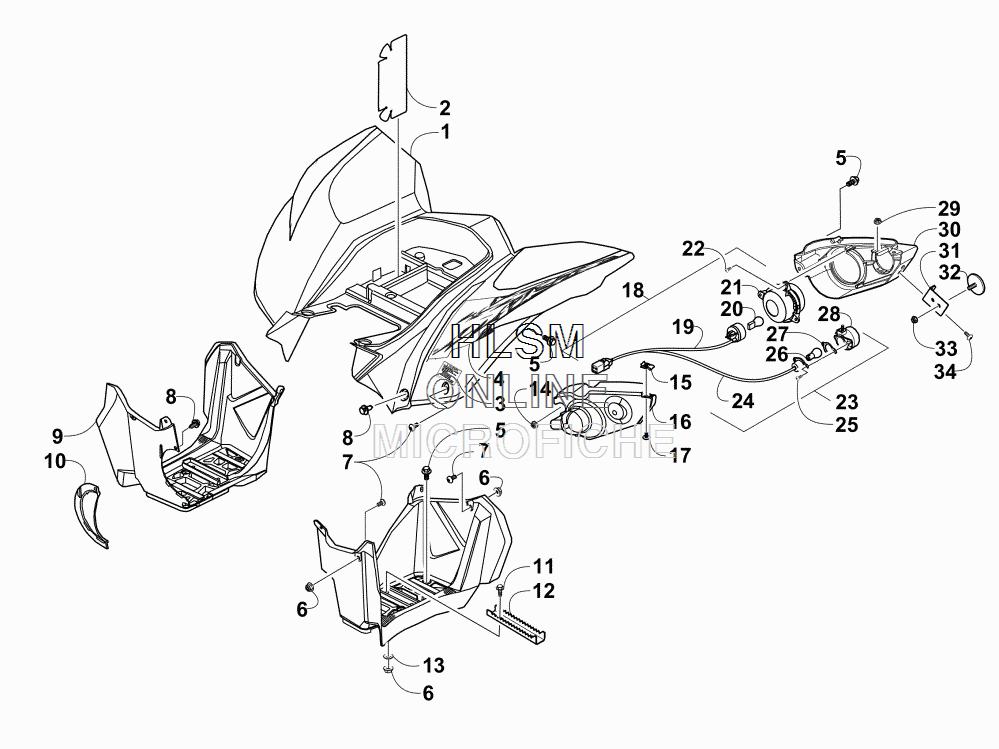

REAR BODY AND TAILLIGHT ASSEMBLY для Arctic Cat XC 450 EFT ORANGE [A2015KCK4CETY] - 2015 года выпуска
-
№АртикулНазвание
-
13306-718 PANEL, FENDER - REAR - BLACKPANEL, FENDER - REAR - BLACK
-
23306-543 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
33307-112 DECAL, WARNING - TIREDECAL, WARNING - TIRE
-
44411-332 DECAL, FENDER - RIGHTDECAL, FENDER - RIGHT
-
44411-333 DECAL, FENDER - LEFTDECAL, FENDER - LEFT
-
53304-587 SCREW, CAPSCREW, CAP
-
63304-431 NUT, LOCKNUT, LOCK
-
73304-404 SCREW, CAPSCREW, CAP
-
83305-448 CLIP, RETAININGCLIP, RETAINING
-
93306-480 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
93306-481 FOOTWELL - LEFTFOOTWELL - LEFT
-
103306-488 PANEL, CLUTCH HOUSINGPANEL, CLUTCH HOUSING
-
113304-586 SCREW, CAPSCREW, CAP
-
125506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
133305-852 WASHERWASHER
-
140423-678 GROMMETGROMMET
-
153304-061 CLIP, U-NUTCLIP, U-NUT
-
163306-482 HOUSING, TAILLIGHT - INNER RIGHTHOUSING, TAILLIGHT - INNER RIGHT
-
163306-483 HOUSING, TAILLIGHT - INNER LEFTHOUSING, TAILLIGHT - INNER LEFT
-
173304-029 SCREW, CAPSCREW, CAP
-
183306-608 TAILLIGHT ASSEMBLY - RIGHT (INC. 19, ONE NO. 20, AND 21)TAILLIGHT ASSEMBLY - RIGHT (INC. 19, ONE NO. 20, AND 21)
-
193306-610 ...HARNESS, TAILLIGHT - RIGHT...HARNESS, TAILLIGHT - RIGHT
-
213306-512 ...LENS ASSEMBLY - RIGHT...LENS ASSEMBLY - RIGHT
-
183306-609 TAILLIGHT ASSEMBLY - LEFT (INC. 19, ONE NO. 20, AND 21)TAILLIGHT ASSEMBLY - LEFT (INC. 19, ONE NO. 20, AND 21)
-
193306-611 ...HARNESS, TAILLIGHT - LEFT...HARNESS, TAILLIGHT - LEFT
-
203303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
213306-513 ...LENS ASSEMBLY - LEFT...LENS ASSEMBLY - LEFT
-
223304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
233306-604 TURN SIGNAL - RIGHT ASSEMBLY (INC. 24, TWO NO. 25, ONE NO. 26, ONE NO. 27, AND ONE NO. 28)TURN SIGNAL - RIGHT ASSEMBLY (INC. 24, TWO NO. 25, ONE NO. 26, ONE NO. 27, AND ONE NO. 28)
-
243306-606 ...HARNESS, TURN SIGNAL - RIGHT...HARNESS, TURN SIGNAL - RIGHT
-
233306-605 TURN SIGNAL - LEFT ASSEMBLY (INC. 24, TWO NO. 25, ONE NO. 26, ONE NO. 27, AND ONE NO. 28)TURN SIGNAL - LEFT ASSEMBLY (INC. 24, TWO NO. 25, ONE NO. 26, ONE NO. 27, AND ONE NO. 28)
-
243306-607 ...HARNESS, TURN SIGNAL - LEFT...HARNESS, TURN SIGNAL - LEFT
-
263304-825 ...BULB...BULB
-
283306-506 ...LENS ASSEMBLY...LENS ASSEMBLY
-
293304-774 NUT, LOCKNUT, LOCK
-
303306-484 HOUSING, TAILLIGHT - OUTER RIGHTHOUSING, TAILLIGHT - OUTER RIGHT
-
303306-485 HOUSING, TAILLIGHT - OUTER LEFTHOUSING, TAILLIGHT - OUTER LEFT
-
313306-633 BRACKET, MOUNTING - REFLECTORBRACKET, MOUNTING - REFLECTOR
-
323305-273 REFLECTOR REDREFLECTOR RED
-
333304-654 NUT, LOCKNUT, LOCK
-
343305-703 SCREW, MACHINESCREW, MACHINE
