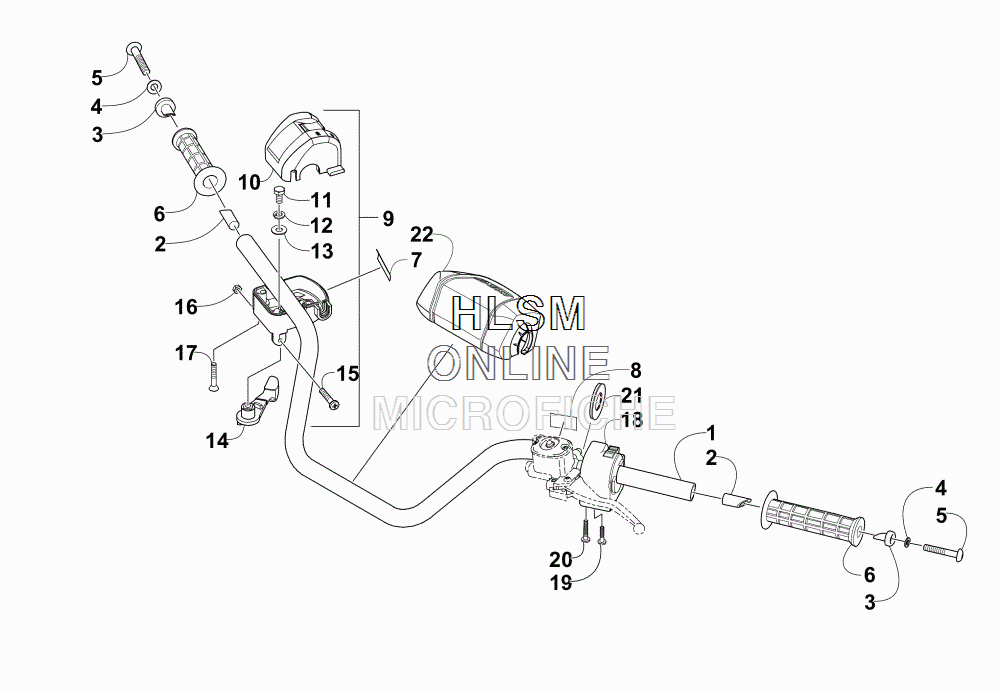

HANDLEBAR ASSEMBLY для Arctic Cat XR 500 RED [A2015XAK4USR] - 2015 года выпуска
-
№АртикулНазвание
-
10505-880 HANDLEBAR - BLACKHANDLEBAR - BLACK
-
20405-218 PLUG, HANDLEBARPLUG, HANDLEBAR
-
30405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
48050-247 WASHERWASHER
-
58477-845 SCREW, MACHINESCREW, MACHINE
-
60405-147 GRIP, HANDLEBARGRIP, HANDLEBAR
-
70411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
81411-865 DECAL, BRAKE LEVER LOCKDECAL, BRAKE LEVER LOCK
-
90509-054 CASE, THROTTLE - ASSEMBLY (INC. 10-17)CASE, THROTTLE - ASSEMBLY (INC. 10-17)
-
100409-141 ...COVER, THROTTLE CASE - W/SWITCH...COVER, THROTTLE CASE - W/SWITCH
-
113007-392 ...BOLT...BOLT
-
123004-447 ...WASHER, LOCK...WASHER, LOCK
-
133003-030 ...WASHER...WASHER
-
140409-133 ...LEVER, THROTTLE...LEVER, THROTTLE
-
153423-014 ...SCREW, MACHINE...SCREW, MACHINE
-
163423-327 ...NUT...NUT
-
173423-199 ...SCREW, MACHINE...SCREW, MACHINE
-
180509-014 SWITCH, CONTROL - ASSEMBLY (INC. 19-20)SWITCH, CONTROL - ASSEMBLY (INC. 19-20)
-
190409-027 ...SCREW, MACHINE...SCREW, MACHINE
-
200409-028 ...SCREW, MACHINE...SCREW, MACHINE
-
213409-019 COVER, SWITCH HOUSINGCOVER, SWITCH HOUSING
-
224406-835 COVER, HANDLEBARCOVER, HANDLEBAR
