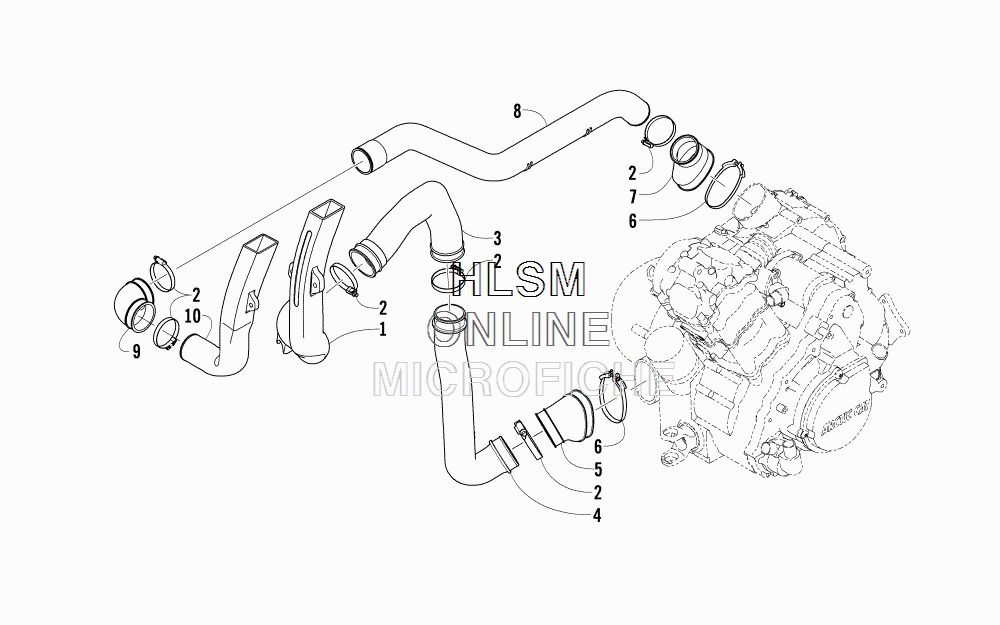

CASE/BELT COOLING ASSEMBLY для Arctic Cat 700 MUD PRO LTD [A2016MLT1PUSJ] - 2016 года выпуска
-
№АртикулНазвание
-
10413-228 DUCT, AIR-IN - CLUTCHDUCT, AIR-IN - CLUTCH
-
20423-019 CLAMPCLAMP
-
30413-092 BOOT, INTAKEBOOT, INTAKE
-
40413-250 DUCT, INTAKE - LOWERDUCT, INTAKE - LOWER
-
50413-252 BOOT, INTAKEBOOT, INTAKE
-
60423-057 CLAMPCLAMP
-
70413-049 BOOT, COOLING - BELTBOOT, COOLING - BELT
-
80413-213 DUCT, CLUTCH-OUT - #1DUCT, CLUTCH-OUT - #1
-
90413-098 BOOT, AIR-INBOOT, AIR-IN
-
100413-215 DUCT, CLUTCH-OUT - #2DUCT, CLUTCH-OUT - #2
