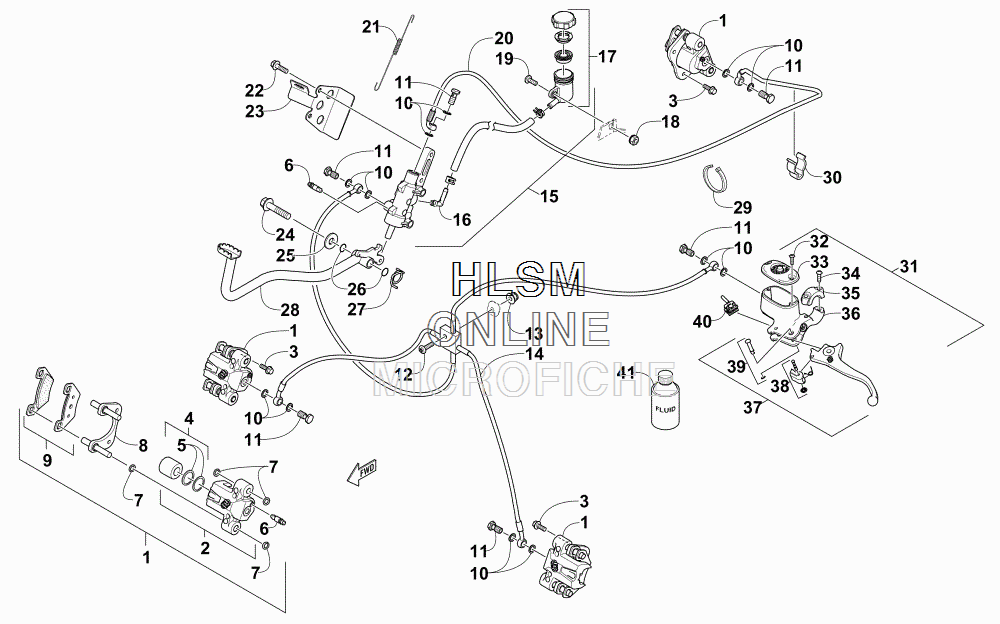

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 700 MUD PRO LTD [A2016MLT1PUSJ] - 2016 года выпуска
-
№АртикулНазвание
-
11502-730 CALIPER, BRAKE (FRONT RIGHT) (INC. 2-9)CALIPER, BRAKE (FRONT RIGHT) (INC. 2-9)
-
11502-731 CALIPER, BRAKE (FRONT LEFT & REAR RIGHT) (INC. 2-9)CALIPER, BRAKE (FRONT LEFT & REAR RIGHT) (INC. 2-9)
-
21436-160 ...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT) (INC. 3-6)...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT) (INC. 3-6)
-
21436-161 ...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT & REAR RIGHT) (INC. 3-6)...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT & REAR RIGHT) (INC. 3-6)
-
38408-821 ......SCREW, CAP......SCREW, CAP
-
40502-606 ......PISTON/SEAL SET (INC. 5)......PISTON/SEAL SET (INC. 5)
-
50502-607 ......SEAL SET......SEAL SET
-
60502-609 ......VALVE, BLEED......VALVE, BLEED
-
70502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
80502-960 ...BRACKET ASSEMBLY - FRONT...BRACKET ASSEMBLY - FRONT
-
91436-420 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
100423-178 WASHER, CRUSHWASHER, CRUSH
-
110423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
128476-625 SCREW, MACHINESCREW, MACHINE
-
138427-602 NUT, LOCKNUT, LOCK
-
141502-015 HOSE, BRAKELINE - ASSEMBLYHOSE, BRAKELINE - ASSEMBLY
-
151502-293 BRAKE ASSEMBLY (INC. 16-17)BRAKE ASSEMBLY (INC. 16-17)
-
161502-296 ...HOSE ADAPTER SPOUT, 90-DEGREE - GROMMET SEAL...HOSE ADAPTER SPOUT, 90-DEGREE - GROMMET SEAL
-
171502-155 ...RESERVOIR, BRAKE W/CLAMP...RESERVOIR, BRAKE W/CLAMP
-
180623-038 NUT W/WASHERNUT W/WASHER
-
198476-616 SCREW, MACHINESCREW, MACHINE
-
201502-593 HOSE, BRAKELINEHOSE, BRAKELINE
-
210502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
228408-625 SCREW, CAPSCREW, CAP
-
231502-179 BRACKET, SWITCHBRACKET, SWITCH
-
248408-816 SCREW, CAPSCREW, CAP
-
258050-252 WASHERWASHER
-
261602-213 O-RINGO-RING
-
270502-807 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
281502-063 LEVER, BRAKELEVER, BRAKE
-
290123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
301502-115 CLIP, BRAKELINE HOSECLIP, BRAKELINE HOSE
-
311502-902 CYLINDER, MASTER BRAKE - (BLACK) - ASSEMBLY (INC. 32-40)CYLINDER, MASTER BRAKE - (BLACK) - ASSEMBLY (INC. 32-40)
-
320502-566 ...SCREW, MACHINE...SCREW, MACHINE
-
330502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
340502-568 ...SCREW, MACHINE...SCREW, MACHINE
-
350502-869 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
360502-704 ...MASTER CYLINDER ASSEMBLY...MASTER CYLINDER ASSEMBLY
-
371502-904 LEVER ASSEMBLY - KIT (INC. 38-39)LEVER ASSEMBLY - KIT (INC. 38-39)
-
381502-905 ...LOCK, BRAKE LEVER - KIT...LOCK, BRAKE LEVER - KIT
-
390502-580 ...LEVER PIN - KIT...LEVER PIN - KIT
-
400502-564 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
415639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
