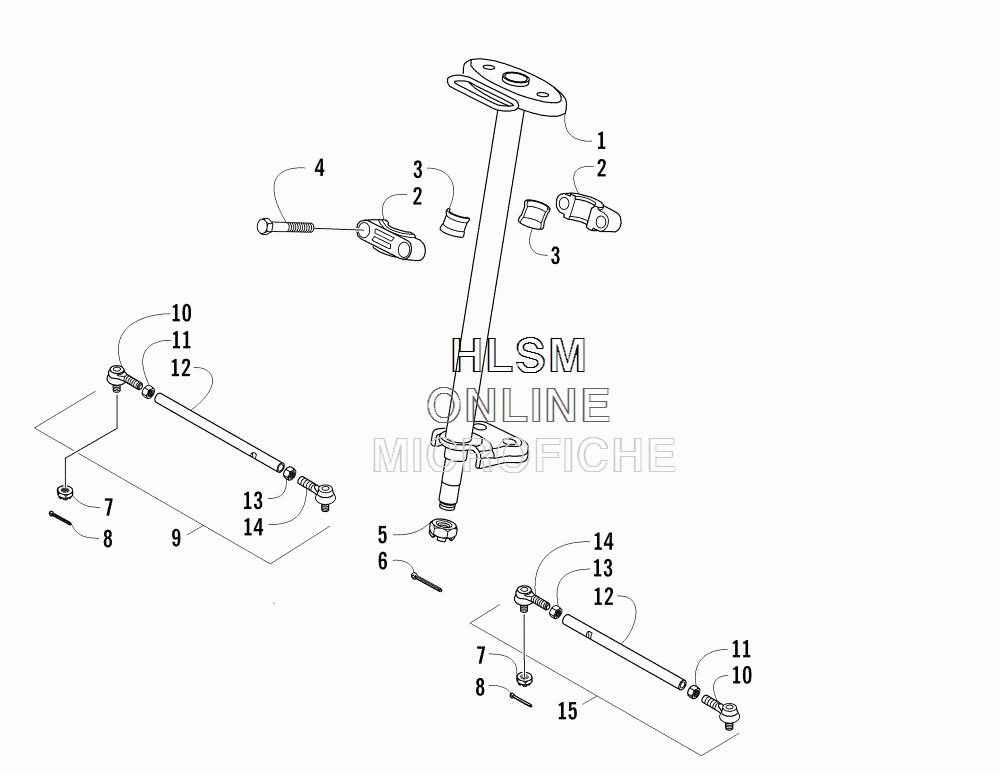

STEERING POST ASSEMBLY для Arctic Cat 90 2X4 DVX [A2016KSB2BUST] - 2016 года выпуска
-
№АртикулНазвание
-
13303-573 POST, STEERINGPOST, STEERING
-
23303-213 HOLDER, STEERING POSTHOLDER, STEERING POST
-
33305-497 SLEEVE, STEMSLEEVE, STEM
-
43304-559 SCREW, CAPSCREW, CAP
-
53304-032 NUTNUT
-
63303-470 PIN, COTTERPIN, COTTER
-
73303-266 NUTNUT
-
83303-621 PIN, COTTERPIN, COTTER
-
93305-485 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
-
103305-486 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
113303-326 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
123305-282 TIE RODTIE ROD
-
133303-327 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
143305-487 BALL JOINT, TIE ROD - LEFTBALL JOINT, TIE ROD - LEFT
-
153305-499 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
