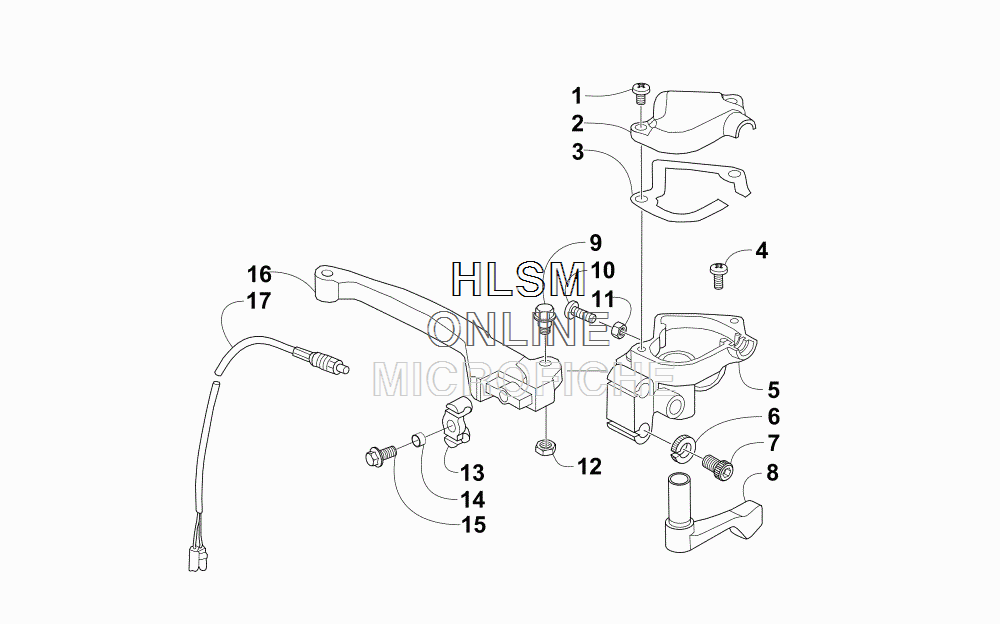

THROTTLE CONTROL ASSEMBLY для Arctic Cat 90 2X4 DVX [A2016KSB2BUST] - 2016 года выпуска
-
№АртикулНазвание
-
-3305-979 COMPLETE THROTTLE CONTROL ASSEMBLYCOMPLETE THROTTLE CONTROL ASSEMBLY
-
13303-315 SCREW, MACHINESCREW, MACHINE
-
23303-207 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
33303-209 GASKETGASKET
-
43303-397 SCREW, MACHINESCREW, MACHINE
-
53303-204 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
63303-271 NUTNUT
-
73303-208 SCREW, ADJUSTERSCREW, ADJUSTER
-
83303-200 LEVER, THROTTLELEVER, THROTTLE
-
93303-255 SCREW, SHOULDERSCREW, SHOULDER
-
103305-980 SCREW, MACHINESCREW, MACHINE
-
113305-832 NUTNUT
-
123303-262 NUTNUT
-
133303-201 RETAINER, BRAKE CABLERETAINER, BRAKE CABLE
-
143303-202 SPACERSPACER
-
153305-344 BOLT, FLANGE - 6 X 16BOLT, FLANGE - 6 X 16
-
163306-054 LEVER, BRAKELEVER, BRAKE
-
173303-140 SWITCH, BRAKESWITCH, BRAKE
