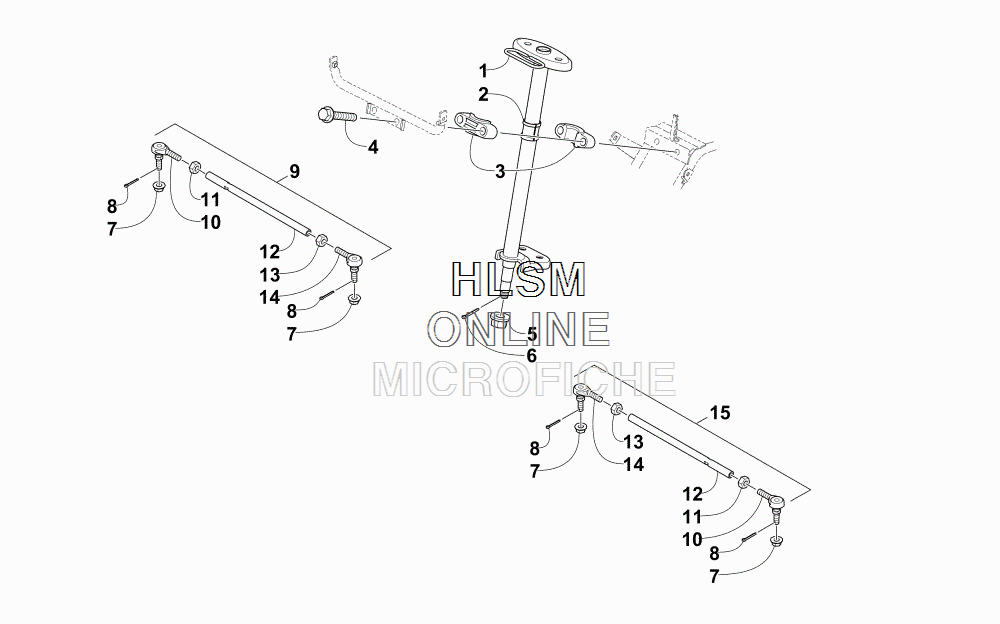

STEERING POST ASSEMBLY для Arctic Cat 90 2X4 UTILITY [A2016KUB2BUSR] - 2016 года выпуска
-
№АртикулНазвание
-
13303-573 POST, STEERINGPOST, STEERING
-
23305-497 SLEEVE, STEMSLEEVE, STEM
-
33303-213 HOLDER, STEERING POSTHOLDER, STEERING POST
-
43307-203 SCREW, CAPSCREW, CAP
-
53304-032 NUTNUT
-
63303-470 PIN, COTTERPIN, COTTER
-
73303-266 NUTNUT
-
83303-621 PIN, COTTERPIN, COTTER
-
93305-485 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
-
103305-486 ......BALL JOINT, TIE ROD - RIGHT......BALL JOINT, TIE ROD - RIGHT
-
113303-326 ......NUT - RIGHT-HAND THREAD......NUT - RIGHT-HAND THREAD
-
123305-282 ......TIE ROD......TIE ROD
-
133303-327 ......NUT, HEX - RIGHT-HAND THREAD......NUT, HEX - RIGHT-HAND THREAD
-
143305-487 ......BALL JOINT, TIE ROD - LEFT......BALL JOINT, TIE ROD - LEFT
-
153305-499 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
