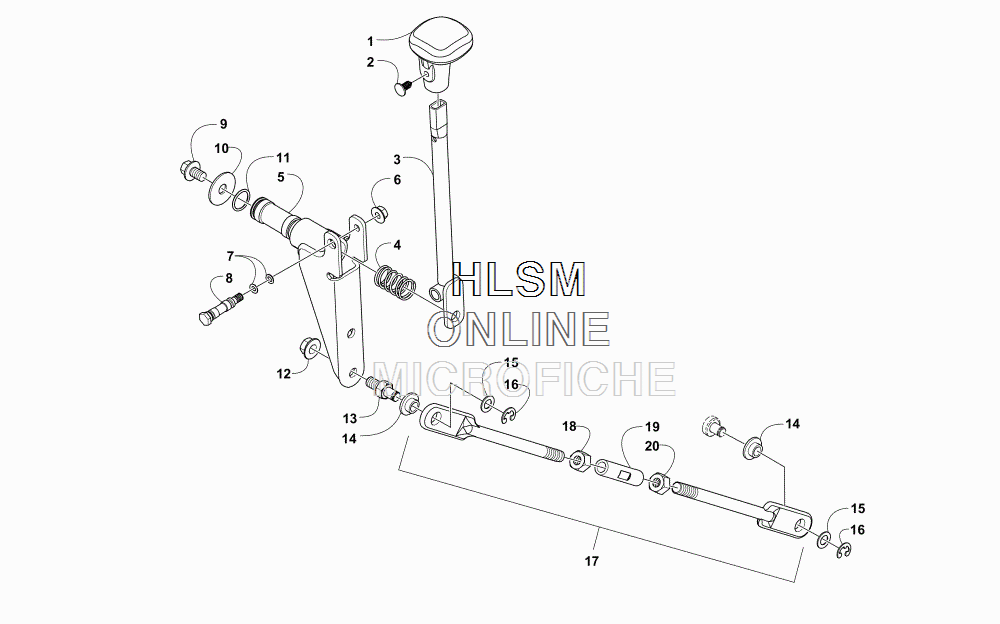

SHIFT LEVER ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS WHITE T3S [A2016XCT1PSTW] - 2016 года выпуска
-
№АртикулНазвание
-
10402-843 KNOB, SHIFTKNOB, SHIFT
-
20423-345 CLIP, PUSHCLIP, PUSH
-
32502-162 LEVER, SHIFTLEVER, SHIFT
-
42402-117 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
52502-149 ACTUATOR, SHIFTACTUATOR, SHIFT
-
68424-602 NUT, LOCKNUT, LOCK
-
70423-182 O-RINGO-RING
-
80402-675 AXLE, PIVOTAXLE, PIVOT
-
98408-812 SCREW, CAPSCREW, CAP
-
100423-087 WASHERWASHER
-
110423-299 O-RING - 016 (5/8 X 3/4 X 1/16)O-RING - 016 (5/8 X 3/4 X 1/16)
-
128424-802 NUTNUT
-
131402-621 PIN, MOUNTINGPIN, MOUNTING
-
140423-091 BUSHINGBUSHING
-
150623-094 WASHERWASHER
-
160423-169 E-RING, 5/16 - .242 X .588 X .035E-RING, 5/16 - .242 X .588 X .035
-
172502-139 LINKAGE, SHIFT - ASSEMBLY (INC. 18-20)LINKAGE, SHIFT - ASSEMBLY (INC. 18-20)
-
180623-294 ...NUT, HEX - RIGHT...NUT, HEX - RIGHT
-
191402-619 ...COUPLER...COUPLER
-
200123-917 ...NUT, HEX - LEFT...NUT, HEX - LEFT
