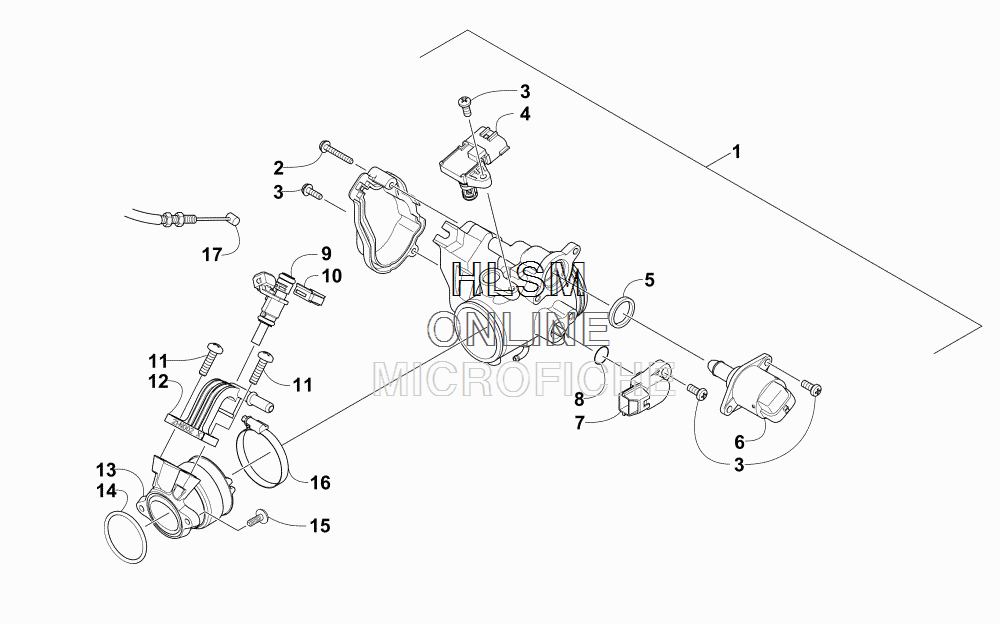

THROTTLE BODY ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS WHITE T3S [A2016XCT1PSTW] - 2016 года выпуска
-
№АртикулНазвание
-
10570-415 THROTTLE BODY- ASSEMBLY (INC. 2-8)THROTTLE BODY- ASSEMBLY (INC. 2-8)
-
23306-909 ...SCREW, MACHINE...SCREW, MACHINE
-
33306-967 ...SCREW, MACHINE...SCREW, MACHINE
-
40824-052 ...SENSOR, T-MAP...SENSOR, T-MAP
-
50832-088 ...SEAL...SEAL
-
60824-054 ...VALVE, IDLE SPEED CONTROL...VALVE, IDLE SPEED CONTROL
-
70824-053 ...SENSOR, THROTTLE POSITION (INC.8)...SENSOR, THROTTLE POSITION (INC.8)
-
83306-150 ......O-RING......O-RING
-
90470-910 INJECTOR, FUELINJECTOR, FUEL
-
100470-889 CLIP, RETAININGCLIP, RETAINING
-
118468-616 SCREW, MACHINESCREW, MACHINE
-
121470-059 RAIL, FUELRAIL, FUEL
-
130570-408 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
140470-531 O-RINGO-RING
-
150826-008 SCREW, MACHINESCREW, MACHINE
-
160423-066 CLAMPCLAMP
-
170487-100 CABLE, THROTTLECABLE, THROTTLE
