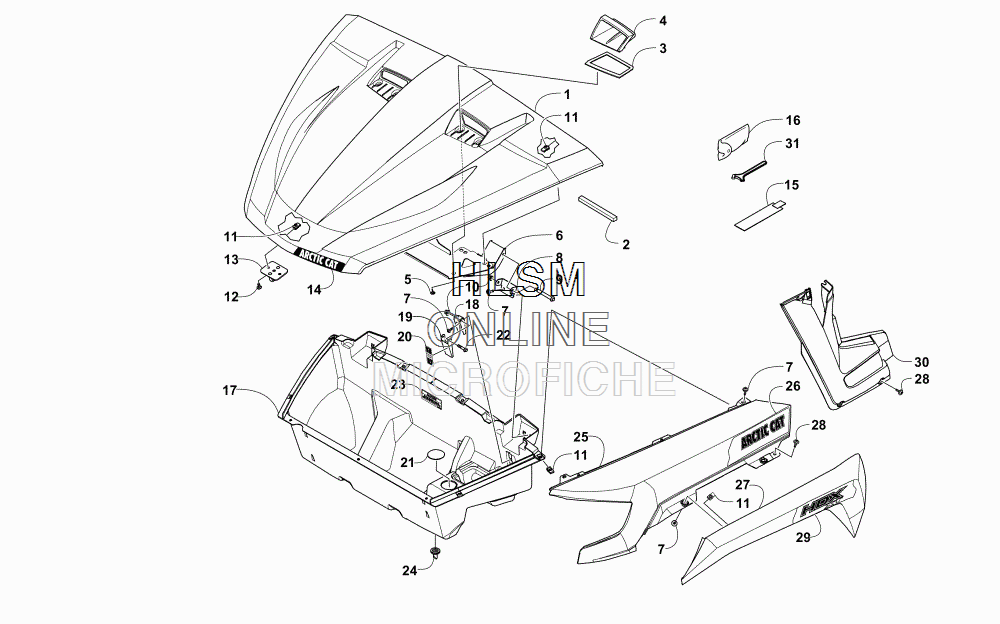

HOOD/FRONT STORAGE AND SIDE PANEL ASSEMBLY для Arctic Cat HDX 700 XT CAMO [U2016R6T1PUSH] - 2016 года выпуска
-
№АртикулНазвание
-
15506-972 HOOD ASSEMBLY - CAMOHOOD ASSEMBLY - CAMO
-
24406-886 SEAL, HOODSEAL, HOOD
-
35406-014 SEAL, SCOOP - RIGHTSEAL, SCOOP - RIGHT
-
35406-015 SEAL, SCOOP - LEFTSEAL, SCOOP - LEFT
-
44406-620 SCOOP, HOOD - RIGHTSCOOP, HOOD - RIGHT
-
44406-621 SCOOP, HOOD - LEFTSCOOP, HOOD - LEFT
-
50623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
67506-173 HINGE, HOODHINGE, HOOD
-
70423-609 SCREW, MACHINESCREW, MACHINE
-
84406-828 BRACKET, HINGE PIVOTBRACKET, HINGE PIVOT
-
91423-289 SCREW, SHOULDERSCREW, SHOULDER
-
108427-602 NUT, LOCKNUT, LOCK
-
110423-577 CLIP, U-NUTCLIP, U-NUT
-
128477-616 SCREW, MACHINESCREW, MACHINE
-
135506-906 HOOK, HOOD LATCHHOOK, HOOD LATCH
-
144411-570 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
150707-582 RETAINER, VELCRORETAINER, VELCRO
-
162516-863 KIT, TOOLKIT, TOOL
-
174406-615 BOX, STORAGE - FRONTBOX, STORAGE - FRONT
-
184406-696 BRACKET, LOCK LEVERBRACKET, LOCK LEVER
-
194406-829 LOCK, LEVER - HOODLOCK, LEVER - HOOD
-
204411-970 DECAL, HOOD PROPDECAL, HOOD PROP
-
210623-600 PLUGPLUG
-
221423-288 SCREW, SHOULDERSCREW, SHOULDER
-
234411-553 DECAL, CAUTION - LOAD CAPACITY (25 LB)DECAL, CAUTION - LOAD CAPACITY (25 LB)
-
240470-442 VALVE, AIR CLEANERVALVE, AIR CLEANER
-
254406-808 FENDER, INNER FRONT - RIGHT - CAMOFENDER, INNER FRONT - RIGHT - CAMO
-
254406-809 FENDER, INNER FRONT- LEFT - CAMOFENDER, INNER FRONT- LEFT - CAMO
-
265411-036 DECAL, INNER FRONT- SIDE - RIGHTDECAL, INNER FRONT- SIDE - RIGHT
-
265411-037 DECAL, INNER FRONT - SIDE - LEFTDECAL, INNER FRONT - SIDE - LEFT
-
274406-810 FENDER, OUTER FRONT - RIGHT - CAMOFENDER, OUTER FRONT - RIGHT - CAMO
-
274406-811 FENDER, OUTER FRONT - LEFT - CAMOFENDER, OUTER FRONT - LEFT - CAMO
-
281423-198 SCREW, MACHINESCREW, MACHINE
-
294411-880 DECAL, LOWER FRONT - RIGHTDECAL, LOWER FRONT - RIGHT
-
294411-881 DECAL, LOWER FRONT - LEFTDECAL, LOWER FRONT - LEFT
-
304406-610 PANEL, SIDE - RIGHTPANEL, SIDE - RIGHT
-
304406-611 PANEL, SIDE - LEFTPANEL, SIDE - LEFT
-
310441-587 WRENCH, SPANNERWRENCH, SPANNER
